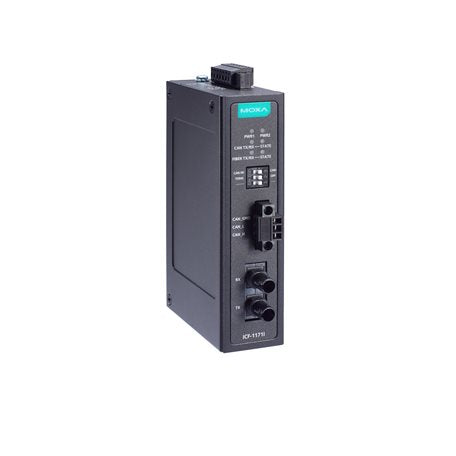

• Moxa ICF-1171I-S-ST black industrial CAN-to-fiber converter with ports
1 1

Moxa

Moxa ICF-1171I-S-ST | ICF-1171I CAN-to-Fiber Converter, Single-Mode ST, 40km, 2kV

Moxa ICF-1171I-S-ST | ICF-1171I CAN-to-Fiber Converter, Single-Mode ST, 40km, 2kV

Authorised Moxa Partner

ICF-1171I-S-ST

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The ICF-1171I-S-ST is an industrial CAN-to-fiber converter that links two CAN 2.0 or CAN FD networks over single-mode fibre with an ST connector. Installed in pairs, it extends CAN bus distance up to 40 km, and this SKU is the single-mode ST version with an operating temperature range of 0 to 60°C. Built-in 2 kV CAN isolation and dual redundant power inputs make it well suited to factory automation, rail, mining and utility installations where electrical noise and long cable runs are a concern.

The converter supports CAN 2.0A, CAN 2.0B and CAN FD in line with ISO 11898, with arbitration rates up to 1 Mbps and a CAN FD data rate up to 5 Mbps. A DIP switch enables the 120-ohm terminator and rotary switches set the arbitration and data rates, while LEDs show CAN bus, fibre and power input status. The metal IP30 housing mounts on a DIN rail, with wall mounting available using an optional kit.

Features

- Transmits CAN data up to 40 km over single-mode optical fibre
- Converts CAN signals to fibre and vice versa
- Supports CAN 2.0A, CAN 2.0B and CAN FD, conforming with ISO 11898
- CAN 2.0 auto-baudrate support
- Built-in 2 kV CAN isolation
- Dual power inputs for redundancy
- DIP switch for 120-ohm terminal resistance
- Rotary switches for CAN 2.0/CAN FD arbitration and data rate configuration
- LEDs for CAN bus, fibre and power input diagnostics
- Different CAN baudrates can be used on each side of the link

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x CAN port (CAN 2.0A, CAN 2.0B, CAN FD, ISO 11898)
- 1 x 100Base-FX single-mode ST fibre port
- Fibre cable requirement: 9/125 µm OS1
- Typical fibre distance: 40 km
- Wavelength typical: 1310 nm
- Optical TX power: 0 to -5 dBm
- Optical RX power: -3 to -34 dBm
- Link budget: 29 dB
- CAN isolation: 2 kV (built-in)
- CAN 2.0 arbitration rate up to 1 Mbps
- CAN FD arbitration rate up to 1 Mbps, data rate up to 5 Mbps
- Input voltage: 12 to 48 VDC, 2 power inputs (terminal block)
- Input current: 188.5 mA (max.)
- Relay contact rating: 1 A @ 30 VDC (resistive load)
- Housing: Metal, IP30
- Dimensions: 30.3 x 70 x 115 mm
- Weight: 294 g
- Installation: DIN-rail mounting, wall mounting with optional kit
- Operating temperature: 0 to 60°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- MTBF: 2,412,885 hrs
- Safety: UL 62368-1, EN 62368-1
- EMC: EN 55032/35

FAQs

Q: Do I need to buy two ICF-1171I-S-ST units?
A: Yes. The converter is used in pairs, with one unit at each end of the fibre link, to connect two CAN networks across the fibre run.

Q: What fibre does the ICF-1171I-S-ST require?
A: It uses 9/125 µm OS1 single-mode fibre with ST connectors and reaches a typical distance of 40 km.

Q: Does it support CAN FD?
A: Yes. It supports CAN 2.0A, CAN 2.0B and CAN FD, and a DIP switch selects between CAN 2.0 and CAN FD mode. CAN FD data rates reach up to 5 Mbps.

Q: Can the two sides of the link run at different CAN baudrates?
A: Yes. Different CAN baudrates can be used on each side of the link.

Q: What power supply does it need?
A: It accepts 12 to 48 VDC and has two terminal block power inputs for redundancy. Maximum input current is 188.5 mA.

Q: How does this SKU differ from other ICF-1171I models?
A: The S-ST model has a single-mode ST fibre port and an operating range of 0 to 60°C. Other models in the series use different fibre types or temperature ratings.
