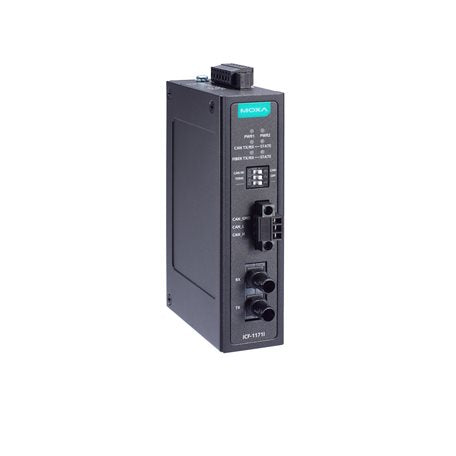

Moxa ICF-1171I-M-ST-T | ICF-1171I CAN-to-Fiber Converter, ST Multi-Mode, -40 to 75°C

Authorised Moxa Partner

SKU:ICF-1171I-M-ST-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ICF-1171I-M-ST-T is an industrial CAN-to-fibre converter that extends CAN 2.0A/2.0B and CAN FD bus distance up to 2 km over multi-mode fibre with an ST connector. It features 2 kV isolation on the CAN port, dual redundant 12 to 48 VDC power inputs and a wide-temperature rating of -40 to 75°C, suited to factory automation, transport and harsh outdoor cabinets.

The fanless IP30 metal housing mounts on DIN rail or a wall with the optional kit. A DIP switch enables the 120-ohm terminal resistor, rotary switches set the CAN 2.0 and CAN FD arbitration and data rates, and LEDs show CAN bus, fibre and power status for fast on-site diagnostics. A relay output provides fault signalling to external systems.

Features

- Converts CAN 2.0A/2.0B and CAN FD signals to multi-mode fibre for distance extension
- 2 kV isolation protects the CAN port
- Dual power inputs for redundancy
- DIP switch for 120-ohm terminal resistance
- Rotary switches for CAN 2.0/CAN FD arbitration and data rate configuration
- LEDs for CAN bus, fibre and power input diagnostics
- Wide-temperature design for -40 to 75°C environments
- Fanless, compact IP30 metal housing

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x CAN port (terminal block; CANL, CANH, CAN Signal GND) with 2 kV built-in isolation
- 1 x 100BaseFX multi-mode fibre port, ST connector (62.5/125 µm)
- Typical fibre distance: 2 km
- Wavelength: 1310 nm
- CAN 2.0A/2.0B and CAN FD, ISO 11898 compliant
- CAN 2.0 / CAN FD arbitration rate up to 1 Mbps
- CAN FD data rate up to 5 Mbps
- Dual 12 to 48 VDC power inputs
- Relay output: 1 A @ 30 VDC
- Operating temperature: -40 to 75°C
- IP30 metal housing, DIN-rail or wall mounting (optional kit)
- Dimensions: 30.3 x 70 x 115 mm
- MTBF: 2,412,885 hrs

FAQs

Q: What fibre type and connector does the ICF-1171I-M-ST-T use?
A: It has one 100BaseFX multi-mode fibre port with an ST connector, designed for 62.5/125 µm fibre at 1310 nm.

Q: How far can this converter extend a CAN bus?
A: The typical multi-mode fibre distance is 2 km.

Q: Does it support CAN FD?
A: Yes. It supports CAN 2.0A/2.0B and CAN FD, with arbitration rates up to 1 Mbps and CAN FD data rates up to 5 Mbps.

Q: What temperature range is supported?
A: This -T model operates from -40 to 75°C, suitable for harsh industrial and outdoor cabinet installations.

Q: How is it powered?
A: It has dual redundant power inputs accepting 12 to 48 VDC, so it can stay online if one supply fails.

Q: How do I mount it?
A: It mounts on a DIN rail, or on a wall using the optional wall-mount kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
