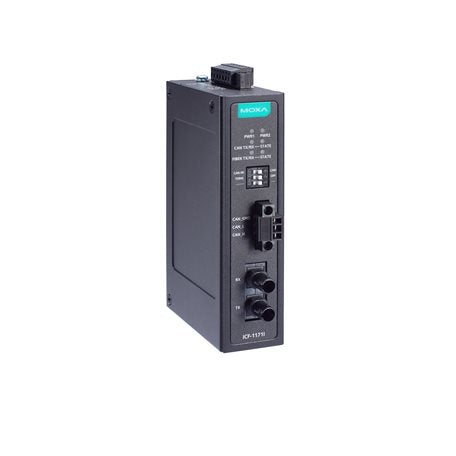

Moxa ICF-1171I-M-ST | ICF-1171I CAN-to-Fibre Converter, Multi-Mode ST, 0-60°C

Authorised Moxa Partner

SKU:ICF-1171I-M-ST

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ICF-1171I-M-ST is an industrial CAN-to-fibre converter for extending CAN 2.0 and CAN FD networks over multi-mode fibre with an ST connector. Deployed in pairs, it links two CAN devices or networks across distances of up to 2 km, with 2 kV isolation on the CAN interface. This multi-mode ST variant is rated for operation from 0 to 60°C.

Dual redundant 12 to 48 VDC power inputs, a metal IP30 housing and DIN-rail mounting make it well suited to control cabinets and factory floor installations. DIP and rotary switches allow quick configuration of terminal resistance and CAN arbitration and data rates, while front-panel LEDs simplify diagnostics of the CAN bus, fibre link and power inputs.

Features

- Converts CAN signals to fibre and vice versa
- CAN 2.0 auto-baudrate support
- DIP switch for 120-ohm terminal resistance
- Rotary switches for CAN 2.0/CAN FD arbitration and data rate configuration
- LEDs for CAN bus, fibre and power input diagnostics
- Dual power inputs for redundancy
- 2 kV isolation protects the CAN interface

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x CAN port (CANL, CANH, CAN signal GND) with 2 kV built-in isolation
- 1 x 100BaseFX multi-mode fibre port, ST connector (62.5/125 µm)
- Up to 2 km typical transmission distance on multi-mode fibre
- Supports CAN 2.0A, CAN 2.0B and CAN FD (ISO 11898)
- CAN 2.0 arbitration rate up to 1 Mbps; CAN FD data rate up to 5 Mbps
- Dual redundant power inputs, 12 to 48 VDC, 188.5 mA max
- Terminal block power connector
- Operating temperature 0 to 60°C
- Metal housing, IP30
- Dimensions 30.3 x 70 x 115 mm; weight 294 g
- DIN-rail mounting, or wall mounting with optional kit
- MTBF 2,412,885 hrs

FAQs

Q: Do I need two ICF-1171I-M-ST units?
A: Yes. The converter is used in pairs, with one unit at each end of the multi-mode fibre link, to connect two CAN devices or networks.

Q: Which CAN protocols does it support?
A: It supports CAN 2.0A, CAN 2.0B and CAN FD (ISO 11898), with CAN 2.0 arbitration rates up to 1 Mbps and CAN FD data rates up to 5 Mbps.

Q: What fibre type and distance does it support?
A: It has a 100BaseFX multi-mode port with an ST connector for 62.5/125 µm fibre, with a typical transmission distance of up to 2 km.

Q: What power supply does it require?
A: It has dual redundant power inputs accepting 12 to 48 VDC via a terminal block, drawing 188.5 mA maximum.

Q: What is the operating temperature range?
A: This model operates from 0 to 60°C. A wide-temperature sibling (-T) is available for -40 to 75°C environments.

Q: How is it mounted?
A: It mounts on a DIN rail as standard, or on a wall with the optional wall-mounting kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
