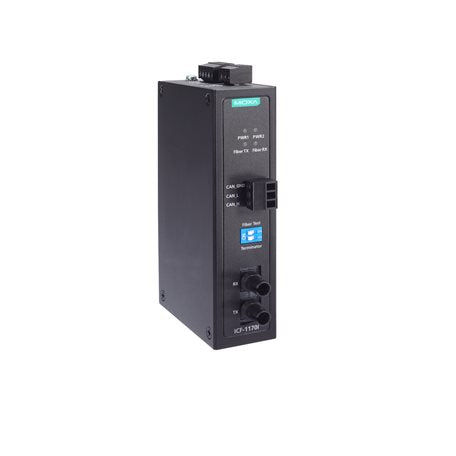

Moxa ICF-1170I-M-ST-T | ICF-1170I Industrial CAN to Fibre Converter, Multi-Mode ST, -40 to 85°C

Authorised Moxa Partner

SKU:ICF-1170I-M-ST-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ICF-1170I-M-ST-T is an industrial CAN bus to fibre media converter with a multi-mode ST connector and a wide operating temperature range of -40 to 85°C. It carries CAN signals over optical fibre up to 2 km at baudrates up to 1 Mbps, is compatible with ISO 11898, and provides 2 kV optical isolation to protect CAN networks from noise and ground loops in factory, rail, mining and energy environments.

Dual redundant 12-48 V power inputs with an alarm relay contact support high-availability installations, while DIP switches allow 120 ohm terminal resistance and a fibre test mode to verify the link between two ICF-1170I units. The DIN-rail mountable IP30 housing and front-panel LEDs for fibre Tx, fibre Rx, Power 1 and Power 2 make installation and troubleshooting straightforward.

Features

- Converts CAN signals to fibre and fibre to CAN signals
- Dual power inputs for redundancy
- DIP switch for 120 ohm terminal resistance
- DIP switch for fibre test mode
- LEDs for Fibre Tx, Fibre Rx, Power 1, Power 2
- Fibre test mode to verify the fibre link between two ICF-1170I units

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Fibre: multi-mode, ST connector
- Fibre transmission distance up to 2 km
- CAN baudrate up to 1 Mbps
- Compatible with ISO 11898
- 2 kV optical isolation
- Dual power inputs (12-48 V) with alarm relay contact
- Operating temperature -40 to 85°C (wide-temperature)
- DIN-rail mounting, IP30

FAQs

Q: What fibre type and connector does the ICF-1170I-M-ST-T use?
A: It uses multi-mode fibre with an ST connector, with transmission distances up to 2 km.

Q: What is the operating temperature range?
A: This -T model is wide-temperature rated for -40 to 85°C, suitable for harsh industrial environments.

Q: What CAN speeds and standards does it support?
A: It supports CAN baudrates up to 1 Mbps and is compatible with ISO 11898.

Q: Does it offer power redundancy?
A: Yes. It has dual 12-48 V power inputs and an alarm relay contact to signal a power fault.

Q: How do I verify the fibre link between two units?
A: Enable the fibre test mode with the DIP switch on both ICF-1170I units and check the fibre Tx and Rx LEDs to confirm the link.

Q: How is it mounted?
A: It is DIN-rail mountable in an IP30-rated housing.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
