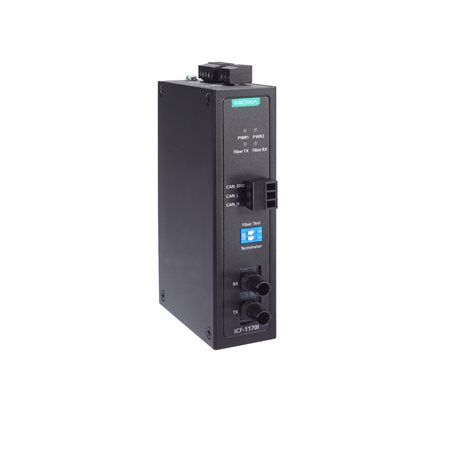

Moxa ICF-1170I-M-ST | ICF-1170I CAN-to-Fiber Converter, Multi-Mode, ST, 0-60C

Authorised Moxa Partner

SKU:ICF-1170I-M-ST

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ICF-1170I-M-ST is an industrial CAN-to-fiber converter that carries CAN bus signals over optical fibre, extending CAN networks beyond copper distance limits and providing 2 kV optical isolation. This model has a multi-mode 100BaseFX fibre port with an ST connector and a standard 0 to 60°C operating temperature range.

It supports CAN baudrates up to 1 Mbps and is fully compatible with ISO 11898. Dual power inputs with a relay alarm contact provide redundancy, and the DIN-rail, IP30 housing suits control cabinets in factory automation and other industrial environments. DIP switches allow 120 ohm terminal resistance and a fibre test mode to be set on site.

Features

- Converts CAN signals to fibre and fibre to CAN signals
- Transmits data up to 2 km over optical fibre
- 2 kV optical isolation
- Dual power inputs for redundancy, with alarm contact relay
- DIP switch for 120 ohm terminal resistance
- DIP switch for fibre test mode
- LEDs for Fibre Tx, Fibre Rx, Power 1 and Power 2

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 100BaseFX multi-mode fibre port, ST connector
- Fibre cable: 50/125 µm (800 MHz) or 62.5/125 µm (500 MHz)
- Typical multi-mode distance: 5 km
- Wavelength: 850 nm typical (TX 840-860 nm, RX 800-900 nm)
- TX power: 0 to -5 dBm; RX power: 0 to -20 dBm
- Link budget: 15 dB; dispersion penalty: 1 dB
- CAN baudrate up to 1 Mbps
- Fully compatible with ISO 11898
- 2 kV optical isolation
- Operating temperature: 0 to 60°C
- DIN-rail mounting, IP30

FAQs

Q: What fibre type and connector does the ICF-1170I-M-ST use?
A: It has a multi-mode 100BaseFX port with an ST connector, and works with 50/125 µm or 62.5/125 µm fibre cable.

Q: What CAN baudrate does it support?
A: It supports CAN baudrates up to 1 Mbps and is fully compatible with ISO 11898.

Q: What is the operating temperature range?
A: This standard model operates from 0 to 60°C. A wide-temperature model is available in the ICF-1170I range for -40 to 85°C environments.

Q: Does it support redundant power?
A: Yes. It has dual power inputs for redundancy and a relay alarm contact.

Q: How is it mounted?
A: It is DIN-rail mounted and has an IP30 rated housing.

Q: Does it provide electrical isolation?
A: Yes, it provides 2 kV optical isolation between the CAN and fibre sides.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
