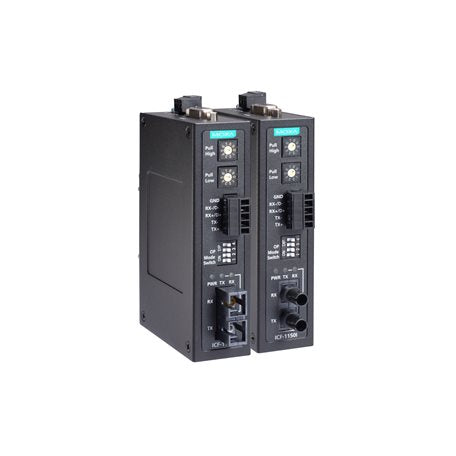

Moxa ICF-1150I-S-SC-T-IEX | ICF-1150 Serial to Fiber Converter, SM SC, 2kV, IECEx, -40 to 85C

Authorised Moxa Partner

SKU:ICF-1150I-S-SC-T-IEX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The ICF-1150I-S-SC-T-IEX is an industrial RS-232/422/485 to single-mode fibre converter with an SC connector, built to extend serial links up to 40 km. It provides 2 kV isolation and is certified for hazardous locations with IECEx, ATEX Zone 2 and UL/cUL Class I Division 2, making it suited to oil and gas, mining, utilities and other harsh industrial deployments.

The wide-temperature design operates from -40 to 85C and runs from a 12 to 48 VDC input. A metal IP30 housing with DIN-rail mounting, automatic data direction control for RS-485 and an adjustable pull high/low resistor via rotary switch simplify installation and commissioning.

Features

- Extends RS-232/422/485 serial transmission up to 40 km over single-mode fibre
- Automatic data direction control (ADDC) for RS-485
- Adjustable pull high/low resistor via rotary switch without removing the unit from the DIN rail
- 2 kV galvanic isolation protects equipment from ground loops and surges
- 40 to 85C wide-temperature operation for harsh environments
- IECEx, ATEX Zone 2 and UL/cUL Class I Division 2 hazardous location certifications
- Rugged metal housing with DIN-rail mounting

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x serial ports (RS-232/422/485)
- Single-mode fibre, SC connector, up to 40 km typical distance
- Wavelength 1310 nm, link budget 20 dB
- 2 kV isolation
- Baudrate 50 bps to 921.6 kbps, supports non-standard baudrates
- Connectors: DB9 female for RS-232, 5-pin terminal block for RS-422/485
- Input voltage 12 to 48 VDC, 300 mA maximum
- Operating temperature -40 to 85C
- Hazardous location certifications: IECEx, ATEX Zone 2, UL/cUL Class I Division 2 Groups A/B/C/D
- Metal housing, IP30, DIN-rail mounting
- Dimensions 30.3 x 70 x 115 mm, weight 330 g

FAQs

Q: How far can the ICF-1150I-S-SC-T-IEX extend a serial connection?
A: Over G.652 single-mode fibre with the SC connector, it supports a typical distance of up to 40 km at 1310 nm, with a 20 dB link budget.

Q: Which serial standards does this converter support?
A: It supports RS-232, RS-422 and RS-485 on two serial ports, with baudrates from 50 bps to 921.6 kbps. RS-232 uses a DB9 female connector and RS-422/485 uses a 5-pin terminal block.

Q: Is this model suitable for hazardous locations?
A: Yes. The IEX variant carries IECEx, ATEX Zone 2 and UL/cUL Class I Division 2 Groups A/B/C/D certifications.

Q: What power supply does the ICF-1150I-S-SC-T-IEX require?
A: It accepts a 12 to 48 VDC input via a terminal block, with a maximum input current of 300 mA and overload current protection.

Q: What operating temperature range does it support?
A: This wide-temperature model operates from -40 to 85C, with ambient relative humidity of 5 to 95% non-condensing.

Q: How does this SKU differ from other ICF-1150 models?
A: This SKU uses a single-mode SC fibre port, provides 2 kV isolation, operates across -40 to 85C and includes IECEx hazardous location certification.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
