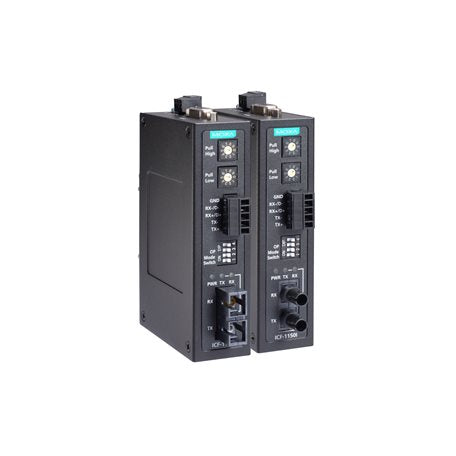

• Moxa ICF-1150-S-SC-IEX black industrial Ethernet switch with fiber SC ports and LEDs
1 1

Moxa

Moxa ICF-1150-S-SC-IEX | ICF-1150 Serial-to-Fibre Converter, Single-Mode SC, IECEx

Moxa ICF-1150-S-SC-IEX | ICF-1150 Serial-to-Fibre Converter, Single-Mode SC, IECEx

Authorised Moxa Partner

ICF-1150-S-SC-IEX

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The ICF-1150-S-SC-IEX is an industrial serial-to-fibre converter that carries RS-232, RS-422 or RS-485 signals over single-mode fibre using an SC connector, extending serial transmission up to 40 km. This model is IECEx certified, has no isolation and operates from 0 to 60°C, making it suited to serial links in hazardous or harsh industrial locations.

With 2 serial ports and a 12 to 48 VDC power input, it supports baudrates from 50 bps to 921.6 kbps, including non-standard rates. Automatic data direction control simplifies RS-485 deployments, and a rotary switch adjusts the pull high/low resistor value to suit your network.

Features

- 3-way communication between RS-232, RS-422/485 and fibre
- Extends RS-232/422/485 transmission up to 40 km with single-mode fibre
- Rotary switch to change the pull high/low resistor value
- Automatic data direction control (ADDC) for RS-485
- IECEx certified for hazardous industrial environments
- Overload current protection on the power input

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 serial ports (RS-232/422/485)
- Fibre interface: single-mode SC connector
- Typical distance: 40 km over G.652 single-mode fibre
- Wavelength: 1310 nm typical
- Link budget: 20 dB, dispersion penalty 1 dB
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- Serial connector: 5-pin terminal block
- RS-485 data direction control: ADDC
- Input voltage: 12 to 48 VDC, 300 mA max
- Overload current protection supported
- Isolation: none
- Operating temperature: 0 to 60°C
- IECEx certified

FAQs

Q: What fibre does the ICF-1150-S-SC-IEX use?
A: It has a single-mode SC fibre connector and requires G.652 single-mode fibre cable, with a typical distance of 40 km at 1310 nm.

Q: Which serial standards does it support?
A: It supports RS-232, RS-422 and RS-485 (2-wire and 4-wire) on its 2 serial ports via a 5-pin terminal block.

Q: Does this model provide isolation?
A: No. This is the non-isolated variant, so it is intended for installations where galvanic isolation is not required.

Q: What is the power requirement?
A: It runs from a single 12 to 48 VDC input with a maximum current of 300 mA, and includes overload current protection.

Q: What does the IECEx certification mean for deployment?
A: IECEx certification indicates the converter is certified for use in explosive atmospheres. Confirm your site's zone and certification requirements before installation.

Q: What is the operating temperature range?
A: This variant operates from 0 to 60°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
