Moxa ICF-1150-M-ST | ICF-1150 RS-232/422/485 to Multi-Mode ST Fibre Converter

Authorised Moxa Partner

SKU:ICF-1150-M-ST

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

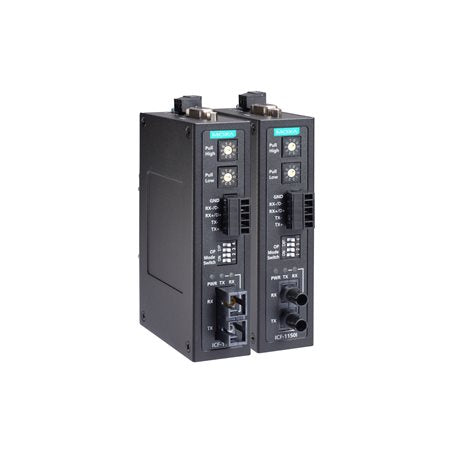

The ICF-1150-M-ST is an industrial RS-232/422/485 to multi-mode fibre converter with an ST connector, built to extend serial links up to 5 km over multi-mode fibre. This is the standard-temperature model, rated 0 to 60°C, and it is non-isolated and non-IECEx, making it a straightforward choice for factory floors, plant rooms and other industrial serial networks.

The converter provides three-way communication between RS-232 (DB9 female), RS-422/485 (5-pin terminal block) and fibre, with baudrates from 50 bps to 921.6 kbps and automatic data direction control for RS-485. A rotary switch adjusts the pull high/low resistor value, and the metal IP30 housing mounts on a DIN rail with a 12 to 48 VDC power input.

Features

- 3-way communication between RS-232, RS-422/485 and fibre
- Extends RS-232/422/485 transmission up to 5 km over multi-mode fibre
- Automatic data direction control (ADDC) for RS-485
- Rotary switch to change the pull high/low resistor value
- Supports non-standard baudrates up to 921.6 kbps
- Overload current protection on the power input
- Metal IP30 housing with DIN-rail mounting

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Interfaces: RS-232 (DB9 female), RS-422/485 (5-pin terminal block), fibre
- Fibre module: Multi-mode, ST connector
- Transmission distance: up to 5 km (multi-mode)
- Baudrate: 50 bps to 921.6 kbps
- Typical wavelength (multi-mode): 850 nm
- Link budget (multi-mode): 15 dB
- Fibre cable: 50/125 µm or 62.5/125 µm multi-mode
- Power input: 12 to 48 VDC, 300 mA max, terminal block
- Operating temperature: 0 to 60°C
- Housing: metal, IP30, DIN-rail mounting
- Dimensions: 30.3 x 70 x 115 mm
- Weight: 330 g
- Isolation: none
- IECEx: not supported

FAQs

Q: What fibre type and connector does the ICF-1150-M-ST use?
A: It uses a multi-mode fibre module with an ST connector. Compatible cable is 50/125 µm or 62.5/125 µm multi-mode fibre.

Q: How far can the ICF-1150-M-ST transmit?
A: Up to 5 km over multi-mode fibre at a typical wavelength of 850 nm.

Q: Does this model provide electrical isolation or IECEx approval?
A: No. This is the non-isolated, non-IECEx model. Isolation is only available on the ICF-1150I models.

Q: Which serial interfaces and baudrates are supported?
A: RS-232 via a DB9 female connector and RS-422/485 via a 5-pin terminal block, with baudrates from 50 bps to 921.6 kbps.

Q: What power supply does it need?
A: A 12 to 48 VDC input via the terminal block, drawing a maximum of 300 mA.

Q: What operating temperature range does this model support?
A: 0 to 60°C. It is the standard-temperature variant of the ICF-1150 family.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
