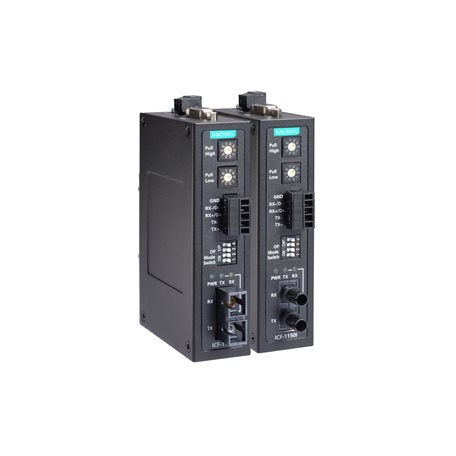

Moxa ICF-1150-M-SC-IEX | ICF-1150 Serial to Multi-Mode Fibre Converter, SC, IECEx

Authorised Moxa Partner

SKU:ICF-1150-M-SC-IEX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The ICF-1150-M-SC-IEX is an industrial serial to multi-mode fibre converter that carries RS-232, RS-422 and RS-485 signals over fibre with an SC connector, extending serial transmission up to 5 km. This IECEx certified variant is suited to hazardous location installations and operates across a 0 to 60°C temperature range.

The converter provides three-way communication between RS-232, RS-422/485 and fibre, with automatic data direction control for RS-485 and a rotary switch to select the pull high/low resistor value. It supports baudrates from 50 bps to 921.6 kbps, accepts a 12 to 48 VDC input, and mounts on a DIN rail in a rugged metal IP30 housing.

Features

- 3-way communication between RS-232, RS-422/485 and fibre
- Extends serial transmission up to 5 km over multi-mode fibre
- IECEx certification for hazardous locations
- Rotary switch to set the pull high/low resistor value
- Automatic data direction control for RS-485
- Supports non-standard baudrates up to 921.6 kbps
- Rugged metal housing with DIN-rail mounting
- Overload current protection on the power input

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial ports: 2 (RS-232/422/485)
- Serial interfaces: DB9 female (RS-232), 5-pin terminal block (RS-422/485)
- Fibre interface: multi-mode SC connector
- Typical distance: 5 km (multi-mode)
- Fibre cable: 50/125 µm, 800 MHz or 62.5/125 µm, 500 MHz
- Wavelength: 850 nm typical (TX 840 to 860 nm, RX 800 to 900 nm)
- Optical power: TX 0 to -8 dBm, RX 0 to -25 dBm
- Link budget: 15 dB, dispersion penalty 1 dB
- Baudrate: 50 bps to 921.6 kbps, non-standard baudrates supported
- RS-485 data direction control: ADDC (automatic)
- Pull high/low resistor: 150 kilo-ohm or 1 kilo-ohm, rotary switch selectable
- Input voltage: 12 to 48 VDC, 300 mA max, terminal block
- Power inputs: 1, with overload current protection
- Housing: metal, IP30
- Dimensions: 30.3 x 70 x 115 mm
- Weight: 330 g
- Mounting: DIN rail
- Operating temperature: 0 to 60°C
- Storage temperature: -40 to 85°C
- Certification: IECEx

FAQs

Q: What fibre type and connector does the ICF-1150-M-SC-IEX use?
A: It uses multi-mode fibre with an SC connector. Supported cable is 50/125 µm (800 MHz) or 62.5/125 µm (500 MHz), with a typical range of 5 km at 850 nm.

Q: Which serial standards does it support?
A: It supports RS-232, RS-422 and RS-485 on two serial ports, with a DB9 female connector for RS-232 and a 5-pin terminal block for RS-422/485.

Q: What does the IEX suffix mean?
A: IEX denotes the IECEx certified version of the converter, intended for installation in hazardous locations. Its operating temperature range is 0 to 60°C.

Q: What power supply does it require?
A: It runs from a 12 to 48 VDC input via a terminal block, drawing up to 300 mA, and includes overload current protection.

Q: How is RS-485 direction control handled?
A: The converter uses ADDC (automatic data direction control), so no RTS handshaking is needed. A rotary switch selects the pull high/low resistor value.

Q: How is the unit mounted?
A: It mounts on a DIN rail and is housed in a metal IP30 enclosure measuring 30.3 x 70 x 115 mm.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
