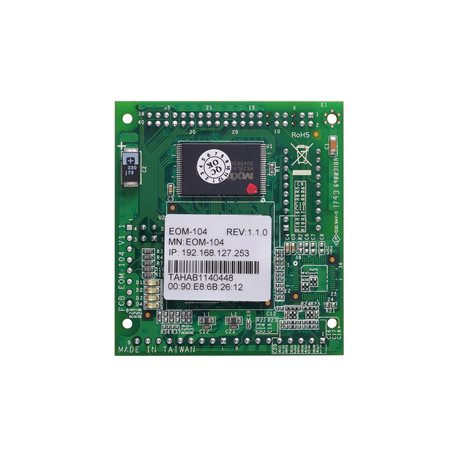

Moxa EOM-104 Evaluation Kit | 4-Port Embedded Managed Ethernet Switch Module Evaluation Kit with 10/100BaseT(X) Ports for Industrial Applications

Moxa EOM-104 Evaluation Kit | 4-Port Embedded Managed Ethernet Switch Module Evaluation Kit with 10/100BaseT(X) Ports for Industrial Applications

SKU:EOM-104 Evaluation Kit

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Moxa EOM-104 Evaluation Kit includes a 4-port embedded managed Ethernet switch module and evaluation board with 10/100BaseT(X) ports. Ideal for testing and development. Learn more.

Features

Warranty

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

What is the Moxa EOM-104 Series?
The Moxa EOM-104 Series consists of 4-port embedded managed Ethernet switch modules designed for industrial network infrastructure. These modules are ideal for integrating Ethernet connectivity into your devices, providing reliable and efficient network management capabilities.
What are the key features of the Moxa EOM-104 Evaluation Kit?
The Moxa EOM-104 Evaluation Kit includes an EOM-104 switch module and an evaluation board equipped with four 10/100BaseT(X) ports. This kit is designed for testing and application development, allowing users to evaluate the performance and capabilities of the EOM-104 Series in various industrial applications.
How can the Moxa EOM-104 Series benefit my industrial network infrastructure?
The Moxa EOM-104 Series enhances your industrial network infrastructure by providing robust Ethernet connectivity and management features. With its 4-port embedded managed switch modules, it supports efficient data transmission and network reliability, making it suitable for demanding industrial environments.
Where can I purchase the Moxa EOM-104 Evaluation Kit in Australia?
You can purchase the Moxa EOM-104 Evaluation Kit from IP Trading, a trusted B2B IT reseller in Australia. They offer a range of Moxa products, including the EOM-104 Series, to meet your industrial networking needs.
Is technical support available for the Moxa EOM-104 Series?
Yes, technical support for the Moxa EOM-104 Series is available through Moxa's support page. You can access software, documentation, and other resources to assist with the installation and operation of your EOM-104 modules.

Technical Specifications

Product Type: Embedded managed Ethernet switch module evaluation kit
Model: EOM-104 switch module with evaluation board
Ethernet Ports: 4 ports, 10/100BaseT(X)
Port Type: RJ45 connectors
Network Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X)
Switching Capacity: 1 Gbps
MAC Table Size: 1 K
VLAN Support: IEEE 802.1Q VLAN
Spanning Tree Protocol: IEEE 802.1D-2004 RSTP
Power Input: 12 to 48 VDC
Power Consumption: 3.6 W
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Humidity: 5 to 95% RH, non-condensing
Dimensions: 80 x 60 x 20 mm (3.15 x 2.36 x 0.79 in)
Weight: 100 g (0.22 lb)
Certifications: CE, FCC
MTBF: 1,000,000 hours
Warranty: 5 years
