Moxa EDS-518E-4GTXSFP-T | EDS-518E Industrial Managed Switch, 14x FE + 4x GbE Combo, -40 to 75C

Authorised Moxa Partner

SKU:EDS-518E-4GTXSFP-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

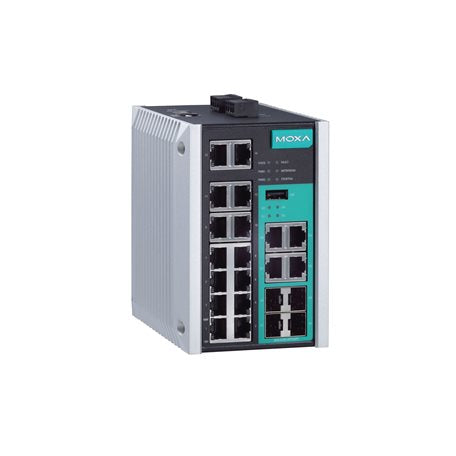

The Moxa EDS-518E-4GTXSFP-T is an industrial managed Ethernet switch with 14 10/100BaseT(X) RJ45 ports and 4 combo Gigabit ports that accept either 10/100/1000BaseT(X) copper or 100/1000BaseSFP fibre. It is built for harsh environments, with a -40 to 75C operating range, an IP30 metal housing and DIN-rail mounting, making it well suited to factory automation, power substation, railway, traffic control and maritime networks.

Redundant dual power inputs (12/24/48/-48 VDC, 9.6 to 60 VDC operating) with overload and reverse polarity protection keep the switch running through power faults. Turbo Ring and Turbo Chain redundancy, RSTP/STP/MSTP and MRP provide fast network recovery, while EtherNet/IP, Modbus TCP and PROFINET IO Device support allows direct integration with industrial control systems. Security features include HTTPS/SSL, SSH, RADIUS, TACACS+, SNMPv3, MAC ACL, Sticky MAC and port lock.

Features

- Turbo Ring and Turbo Chain redundancy with recovery under 20 ms
- RSTP/STP/MSTP, MRP and link aggregation support
- EtherNet/IP, Modbus TCP and PROFINET IO Device industrial protocol support
- Security features including HTTPS/SSL, SSH, RADIUS, TACACS+, SNMPv3, MAC ACL, Sticky MAC and port lock
- Redundant dual power inputs with overload and reverse polarity protection
- Wide -40 to 75C temperature range with hazardous location, power substation, railway, traffic control and maritime approvals
- USB port for storage and a relay alarm output

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 14 x 10/100BaseT(X) RJ45 ports, auto negotiation, full/half duplex, auto MDI/MDI-X
- 4 x 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports
- MAC table 16K, 64 VLANs (VID 1 to 4094), 1 Mbit packet buffer, 4 priority queues, 2048 IGMP groups
- Redundant dual 12/24/48/-48 VDC power inputs, 9.6 to 60 VDC operating voltage
- Input current 0.37 A @ 24 VDC
- Overload current and reverse polarity protection
- 1 relay alarm output (1 A @ 24 VDC) and 1 digital input
- USB Type A storage port and USB-serial console port (Type B)
- IP30 metal housing, DIN-rail mounting (wall mounting with optional kit)
- Dimensions 94 x 135 x 137 mm, weight 1630 g
- Operating temperature -40 to 75C, storage -40 to 85C, 5 to 95% non-condensing humidity
- Approvals: UL 508, ATEX, Class I Division 2, IEC 61850-3, IEEE 1613, EN 50121-4, NEMA TS2, LR, ABS, DNV, NK
- 5-year warranty

FAQs

Q: What ports does the Moxa EDS-518E-4GTXSFP-T have?
A: It has 14 10/100BaseT(X) RJ45 ports and 4 combo ports that support either 10/100/1000BaseT(X) copper or 100/1000BaseSFP fibre modules.

Q: What temperature range does this switch support?
A: It is rated for operation from -40 to 75C, so it suits unconditioned cabinets, outdoor enclosures and other harsh industrial sites.

Q: How is the switch powered?
A: It has redundant dual power inputs accepting 12/24/48/-48 VDC (9.6 to 60 VDC operating range) via two removable 4-contact terminal blocks, with overload and reverse polarity protection.

Q: Which network redundancy protocols are supported?
A: Turbo Ring v1/v2, Turbo Chain, RSTP, STP, MSTP, MRP and link aggregation are supported, with Turbo Ring and Turbo Chain recovery under 20 ms.

Q: Can it be integrated with industrial control systems?
A: Yes. It supports EtherNet/IP, Modbus TCP and PROFINET IO Device protocols for integration with PLCs and SCADA systems.

Q: How is the EDS-518E-4GTXSFP-T mounted?
A: It is designed for DIN-rail mounting in an IP30 metal housing. Wall mounting is possible with an optional kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
