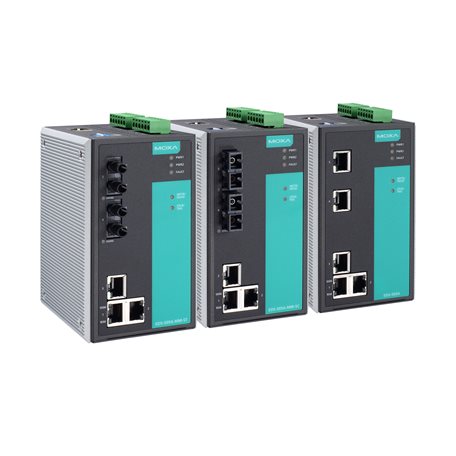

• Moxa EDS-505A-MM-SC-T switch with black teal panels, green terminals, ports
1 1

Moxa

Moxa EDS-505A-MM-SC-T | EDS-505A Managed Industrial Switch, 2x 100BaseFX MM SC, -40 to 75 C

Moxa EDS-505A-MM-SC-T | EDS-505A Managed Industrial Switch, 2x 100BaseFX MM SC, -40 to 75 C

Authorised Moxa Partner

EDS-505A-MM-SC-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa EDS-505A-MM-SC-T is a managed industrial Ethernet switch with three 10/100BaseT(X) copper ports and two 100BaseFX multi-mode fibre ports with SC connectors. It suits factory automation, utility and transport networks that need a fibre uplink or ring link over multi-mode cabling, and it is rated for operation from -40 to 75 C.

This wide temperature variant is built for harsh environments where standard commercial switches are not suitable. The mix of copper and fibre ports lets you connect local devices while extending the network over fibre, and management support makes it suitable for monitored industrial deployments.

Features

- Managed industrial Ethernet switch
- Multi-mode fibre uplink or ring connectivity via SC ports
- Wide operating temperature range for harsh environments
- Combined copper and fibre port layout

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 3 x 10/100BaseT(X) ports
- 2 x 100BaseFX multi-mode ports, SC connectors
- Managed Ethernet switch
- Operating temperature -40 to 75 C

FAQs

Q: What ports does the EDS-505A-MM-SC-T have?
A: It has three 10/100BaseT(X) copper ports and two 100BaseFX multi-mode fibre ports with SC connectors.

Q: What operating temperature range is supported?
A: This model is rated for operation from -40 to 75 C.

Q: Does it use single-mode or multi-mode fibre?
A: The two fibre ports are 100BaseFX multi-mode with SC connectors, so multi-mode fibre cabling is required.

Q: Is this a managed or unmanaged switch?
A: It is a managed Ethernet switch.

Q: Where is this switch typically used?
A: It suits industrial environments such as factory automation, utilities and transport networks where extended temperature tolerance and fibre links are needed.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
