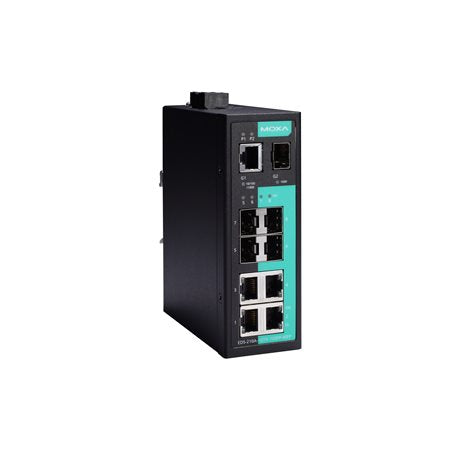

Moxa EDS-210A-1GTX-1GSFP-4SFP | EDS-210A 10-Port Unmanaged Gigabit Switch, 4x 100M SFP, 1G SFP

Authorised Moxa Partner

SKU:EDS-210A-1GTX-1GSFP-4SFP

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The EDS-210A-1GTX-1GSFP-4SFP is a 10-port industrial unmanaged Gigabit Ethernet switch from the EDS-210A series, built for video surveillance, tolling, ITS and factory automation networks. It combines four 10/100 RJ45 ports and one Gigabit RJ45 port with four 100M SFP slots and one Gigabit SFP slot, giving you flexible copper and fibre connectivity with up to two Gigabit uplinks for data aggregation.

This standard temperature model operates from -10 to 60 C and uses an IP30 metal housing with DIN-rail mounting, plus optional wall mounting with a separate kit. Redundant dual 12/24/48 VDC power inputs help keep the switch online in demanding installations, and its plug-and-play, store-and-forward design needs no configuration.

Features

- Up to 2 Gigabit uplinks for high-bandwidth data aggregation
- Multiple fibre port combinations, including 4 x 100BaseSFP slots, for deployment flexibility
- IP30-rated metal housing
- Redundant dual 12/24/48 VDC power inputs
- 100% burn-in tested
- DIN-rail mounting, with wall mounting via optional kit
- High-level EMI/EMC capability
- Unmanaged plug-and-play operation with no configuration required

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1 x 10/100/1000BaseT(X) RJ45 port
- 4 x 10/100BaseT(X) RJ45 ports
- 1 x 1000BaseSFP slot
- 4 x 100BaseSFP slots
- Unmanaged, store-and-forward switching
- MAC table size: 8 K, packet buffer size: 1 Mbits
- Auto negotiation speed, full/half duplex, auto MDI/MDI-X
- Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z
- Redundant dual 12/24/48 VDC inputs, operating voltage 9.6 to 60 VDC
- Input current: 0.39 A @ 24 VDC
- Overload current and reverse polarity protection
- Power connection: 2 removable 2-contact terminal blocks
- IP30 metal housing
- Dimensions (W x H x D): 45.8 x 134 x 105 mm
- Weight: 570 g
- DIN-rail mounting, wall mounting with optional kit
- Operating temperature: -10 to 60 C
- Storage temperature: -40 to 85 C
- Ambient relative humidity: 5 to 95% (non-condensing)
- EMC: EN 55032/24, EMI: CISPR 32, FCC Part 15B Class A
- Safety: UL 508
- MTBF: 2,485,402 hrs
- Package contents: 1 x EDS-210A series switch, quick installation guide, warranty card

FAQs

Q: Is the EDS-210A-1GTX-1GSFP-4SFP a managed switch?
A: No. It is an unmanaged switch with store-and-forward switching and auto negotiation, so it works out of the box with no configuration.

Q: What port combination does this model offer?
A: It provides four 10/100 RJ45 ports, one 10/100/1000 RJ45 port, four 100BaseSFP slots and one 1000BaseSFP slot, for 10 ports in total.

Q: What is the operating temperature range?
A: This standard model operates from -10 to 60 C. A separate -T variant covers the wider -40 to 75 C range.

Q: How is the switch powered?
A: It has redundant dual 12/24/48 VDC inputs with an operating range of 9.6 to 60 VDC, connected via two removable 2-contact terminal blocks.

Q: How is it mounted?
A: It supports DIN-rail mounting as standard. Wall mounting is available with an optional kit.

Q: What is it designed for?
A: The EDS-210A series targets video surveillance, tolling, ITS and factory automation applications that need reliable industrial Ethernet with fibre uplink options.
