Moxa EDS-208A-SS-SC | EDS-208A Unmanaged Switch, 2x 100BaseFX SM SC, 6x RJ45

Authorised Moxa Partner

SKU:EDS-208A-SS-SC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

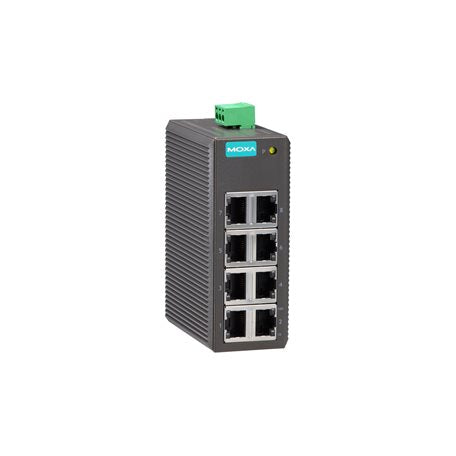

The Moxa EDS-208A-SS-SC is a compact 8-port industrial unmanaged Ethernet switch with 6 x 10/100BaseT(X) RJ45 ports and 2 x 100BaseFX single-mode SC fibre ports. The single-mode fibre uplinks reach up to 40 km, making it well suited to linking remote cabinets, field equipment and control rooms over long fibre runs. It operates across a -10 to 60°C range and installs on a DIN rail inside an IP30 aluminium housing.

Redundant dual 12/24/48 VDC power inputs (9.6 to 60 VDC operating range) keep the switch running if one supply fails, with overload current and reverse polarity protection built in. A DIP switch enables broadcast storm protection, and the rugged design suits hazardous locations (Class 1 Div. 2 / ATEX Zone 2). The EDS-208A series needs no configuration, so it is a straightforward drop-in choice for industrial automation and process networks.

Features

- 10/100BaseT(X) RJ45 and 100BaseFX single-mode SC connectivity in one compact switch
- Redundant dual 12/24/48 VDC power inputs for added uptime
- IP30 aluminium housing built for industrial environments
- Rugged design suited to hazardous locations (Class 1 Div. 2 / ATEX Zone 2)
- DIN-rail mounting, with wall mounting via optional kit
- Broadcast storm protection enabled via DIP switch
- Unmanaged plug-and-play operation with no configuration required

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 6 x 10/100BaseT(X) RJ45 ports with auto negotiation, full/half duplex and auto MDI/MDI-X
- 2 x 100BaseFX single-mode SC fibre ports, up to 40 km typical
- Single-mode fibre type G.652, TX wavelength typically 1310 nm
- Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x flow control
- Processing type: store and forward
- MAC table size: 2 K
- Packet buffer size: 768 kbits
- Redundant dual 12/24/48 VDC power inputs, operating voltage 9.6 to 60 VDC
- Input current: 0.15 A @ 24 VDC
- Overload current and reverse polarity protection
- Removable 4-contact terminal block power connection
- Aluminium housing, IP30 rating
- Dimensions: 50 x 114 x 70 mm
- Weight: 275 g
- DIN-rail mounting, wall mounting with optional kit
- Operating temperature: -10 to 60°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Safety: UL 508, EN 62368-1 (LVD)
- EMI: CISPR 32, FCC Part 15B Class A

FAQs

Q: What type of fibre does the EDS-208A-SS-SC use?
A: It has 2 x 100BaseFX single-mode ports with SC connectors, using G.652 single-mode fibre. Typical reach is up to 40 km.

Q: How many copper ports does it have?
A: It provides 6 x 10/100BaseT(X) RJ45 ports with auto negotiation, full/half duplex and auto MDI/MDI-X.

Q: Is the EDS-208A-SS-SC a managed switch?
A: No. It is an unmanaged switch that works without configuration. Broadcast storm protection can be enabled using the DIP switch.

Q: What power supply does it require?
A: It accepts redundant dual 12/24/48 VDC inputs, with an operating voltage range of 9.6 to 60 VDC, via a removable 4-contact terminal block.

Q: What is the operating temperature range?
A: This model operates from -10 to 60°C, so it suits standard-temperature industrial enclosures rather than extended-range applications.

Q: How is it mounted?
A: It mounts on a DIN rail as standard. Wall mounting is possible with the optional wall-mount kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
