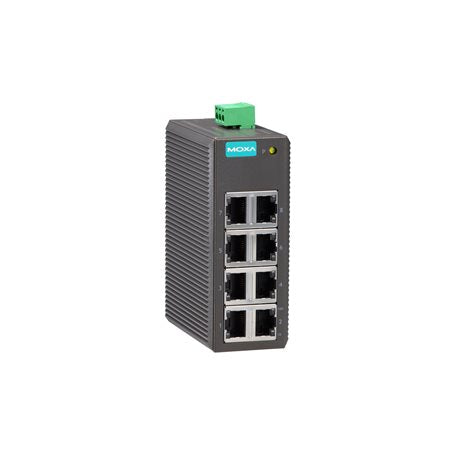

• Moxa EDS-208A-S-SC 8-port industrial Ethernet switch with green LEDs
1 1

Moxa

Moxa EDS-208A-S-SC | EDS-208A 8-Port Unmanaged Switch, 7x RJ45, 1x SM SC Fibre

Moxa EDS-208A-S-SC | EDS-208A 8-Port Unmanaged Switch, 7x RJ45, 1x SM SC Fibre

Authorised Moxa Partner

EDS-208A-S-SC

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The EDS-208A-S-SC is a compact, industrial-grade 8-port unmanaged Ethernet switch with 7 x 10/100BaseT(X) RJ45 ports and 1 x 100BaseFX single-mode SC fibre port. It suits factory floors, transport and utility networks where a copper-to-fibre uplink is needed over long distances, with a typical single-mode reach of 40 km and a standard operating range of -10 to 60°C.

Redundant dual 12/24/48 VDC power inputs, an IP30 aluminium housing and DIN-rail mounting make it straightforward to deploy in control cabinets. Plug-and-play operation with auto-negotiation and auto MDI/MDI-X means no configuration is required, while a DIP switch enables broadcast storm protection.

Features

- 7 copper 10/100 ports plus a 100BaseFX single-mode SC fibre port
- Redundant dual 12/24/48 VDC power inputs
- IP30 aluminium housing
- Rugged design suited to hazardous locations (Class I Div. 2 / ATEX)
- Broadcast storm protection via DIP switch
- Standard -10 to 60°C operating range
- DIN-rail mounting, with wall mounting available using an optional kit

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 7 x 10/100BaseT(X) RJ45 ports
- 1 x 100BaseFX single-mode SC port
- Single-mode fibre: G.652, 1310 nm typical, 40 km typical distance, 29 dB link budget
- Auto negotiation, full/half duplex, auto MDI/MDI-X on copper ports
- Standards: IEEE 802.3, 802.3u, 802.3x flow control
- Store and Forward processing, 2 K MAC table, 768 kbits packet buffer
- Redundant dual 12/24/48 VDC inputs, operating voltage 9.6 to 60 VDC
- Input current 0.11 A @ 24 VDC
- Overload current and reverse polarity protection
- IP30 aluminium housing
- Dimensions: 50 x 114 x 70 mm, weight 275 g
- DIN-rail mounting, wall mounting with optional kit
- Operating temperature -10 to 60°C, storage -40 to 85°C
- Humidity 5 to 95% non-condensing
- Approvals include UL 508, EN 62368-1, ATEX, Class I Division 2, EN 50121-4, NEMA TS2 and maritime (ABS, LR, NK, DNV)
- MTBF 2,943,335 hours

FAQs

Q: What type of fibre port does the EDS-208A-S-SC have?
A: It has one 100BaseFX single-mode port with an SC connector, with a typical reach of 40 km at 1310 nm over G.652 fibre.

Q: Is this switch managed?
A: No. It is an unmanaged plug-and-play switch. The only configurable feature is broadcast storm protection, set using the DIP switch.

Q: What power input does it support?
A: It has redundant dual 12/24/48 VDC inputs on a removable 4-contact terminal block, with an operating voltage range of 9.6 to 60 VDC.

Q: What temperature range is this model rated for?
A: The standard model is rated for -10 to 60°C. Wider -40 to 75°C operation requires the -T variants of the EDS-208A range.

Q: How is the EDS-208A-S-SC mounted?
A: It mounts on a DIN rail as standard. Wall mounting is possible with an optional kit.

Q: How does it differ from the EDS-208A-M-SC?
A: The S-SC model has a single-mode SC fibre port for long-distance links, while the M-SC variants use a multi-mode fibre port for shorter runs.
