Moxa EDS-205A-M-ST | EDS-205A 5-Port Unmanaged Switch, ST Multi-Mode Fibre

Authorised Moxa Partner

SKU:EDS-205A-M-ST

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

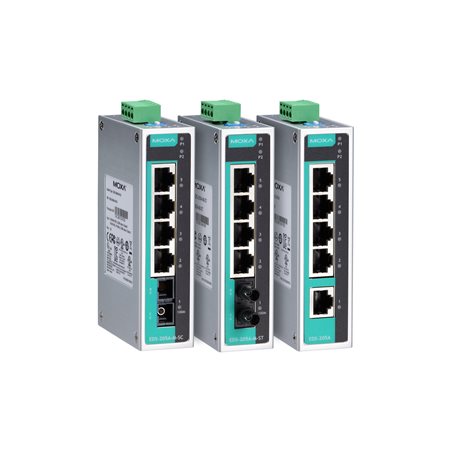

The Moxa EDS-205A-M-ST is a compact 5-port unmanaged industrial Ethernet switch with 4 x 10/100BaseT(X) RJ45 ports and 1 x 100BaseFX multi-mode port with an ST connector. Built for factory floors, substations and other harsh sites, it uses an IP30 aluminium housing and supports operation from -10 to 60°C, with fibre reach of up to 4 km over multi-mode cable.

Redundant dual 12/24/48 VDC power inputs (9.6 to 60 VDC) keep the switch running if one supply fails, while DIP switches let you enable broadcast storm protection and QoS without any software configuration. DIN-rail mounting suits standard industrial cabinets, and hazardous location, maritime, railway and traffic control approvals make it suitable for demanding automation and transport networks.

Features

- Unmanaged plug-and-play operation with no configuration required
- 4 x 10/100 RJ45 ports plus 1 x 100BaseFX multi-mode ST fibre uplink
- Redundant dual 12/24/48 VDC power inputs for supply resilience
- IP30 aluminium housing for rugged industrial installations
- DIP switches to enable or disable broadcast storm protection and QoS
- Suited to hazardous locations (Class I Div. 2 / ATEX Zone 2)
- Maritime, railway and traffic control certifications
- Compact DIN-rail design for space-limited cabinets

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x 10/100BaseT(X) RJ45 ports with auto-negotiation, full/half duplex and auto MDI/MDI-X
- 1 x 100BaseFX multi-mode port, ST connector
- Fibre typical distance: 4 km (multi-mode)
- Fibre TX range: 1260 to 1360 nm; RX range: 1100 to 1600 nm
- Optical TX power: -10 to -20 dBm; RX power: -3 to -32 dBm; link budget 12 dB
- Standards: IEEE 802.3, 802.3u, 802.3x flow control
- Processing type: Store and Forward
- MAC table size: 2 K; packet buffer: 768 kbits
- Input voltage: 12/24/48 VDC redundant dual inputs (9.6 to 60 VDC operating)
- Input current: 0.29 A max.
- Power connection: 1 removable 4-contact terminal block
- Overload current and reverse polarity protection
- Housing: aluminium, IP30
- Dimensions: 30 x 115 x 70 mm; weight 175 g
- Mounting: DIN-rail; wall mounting with optional kit
- Operating temperature: -10 to 60°C; storage -40 to 85°C
- Humidity: 5 to 95% non-condensing
- Approvals: UL 61010-1, UL 62368, IECEx, ATEX, Class I Division 2, ABS, LR, NK, DNV, EN 50121-4, NEMA TS2
- MTBF: 3,293,423 hrs

FAQs

Q: What fibre connector and type does the EDS-205A-M-ST use?
A: It has one 100BaseFX port with an ST connector for multi-mode fibre, with a typical reach of 4 km.

Q: Is the EDS-205A-M-ST a managed switch?
A: No. It is an unmanaged switch. Broadcast storm protection and QoS can be enabled or disabled using the DIP switches on the unit.

Q: What power input does it accept?
A: It has redundant dual 12/24/48 VDC inputs with an operating range of 9.6 to 60 VDC, connected through a removable 4-contact terminal block.

Q: What is the operating temperature range?
A: This model operates from -10 to 60°C. Storage temperature is -40 to 85°C.

Q: How is the switch mounted?
A: It mounts on a DIN-rail as standard. Wall mounting is possible with an optional kit.

Q: Is it suitable for hazardous or transport environments?
A: Yes. It carries IECEx, ATEX and Class I Division 2 hazardous location approvals, along with maritime, railway (EN 50121-4) and traffic control (NEMA TS2) certifications.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
