Moxa EDS-205A-M-SC | EDS-205A 5-Port Unmanaged Switch, 100BaseFX MM SC, -10 to 60C

Authorised Moxa Partner

SKU:EDS-205A-M-SC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

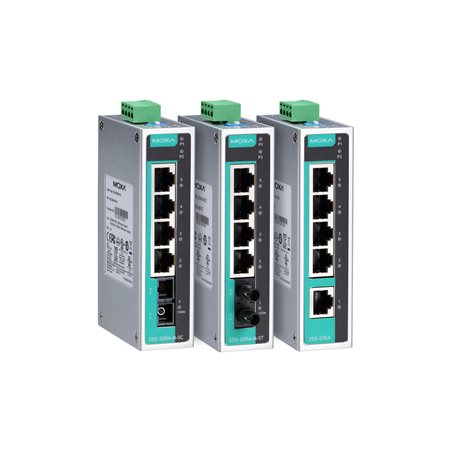

The Moxa EDS-205A-M-SC is a compact 5-port industrial unmanaged Ethernet switch with four 10/100BaseT(X) RJ45 ports and one 100BaseFX multi-mode SC fibre port. The multi-mode SC uplink supports fibre runs of up to 4 km, making it a practical choice for linking field equipment back to a control room or between cabinets. It operates across a -10 to 60°C temperature range.

Redundant dual 12/24/48 VDC power inputs (9.6 to 60 VDC operating range) with overload and reverse polarity protection keep the switch running if one supply fails. The IP30 aluminium housing mounts on a DIN rail, with wall mounting available using an optional kit, and plug-and-play operation means no configuration is required.

Features

- Four 10/100BaseT(X) RJ45 ports plus one 100BaseFX multi-mode SC fibre port
- Redundant dual 12/24/48 VDC power inputs for resilient power
- IP30 aluminium housing for industrial environments
- Plug-and-play unmanaged operation with MDI/MDI-X autosensing
- IEEE 802.3, 802.3u and 802.3x flow control support
- DIN-rail mounting for compact cabinet installation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x 10/100BaseT(X) RJ45 ports with auto-negotiation and auto MDI/MDI-X
- 1 x 100BaseFX multi-mode SC port, typical distance 4 km
- Standards: IEEE 802.3, 802.3u, 802.3x flow control
- Processing type: store and forward
- MAC table size: 1 K
- Packet buffer size: 384 kbits
- Redundant dual 12/24/48 VDC power inputs, operating voltage 9.6 to 60 VDC
- Input current: 0.1 A at 24 VDC
- Overload current and reverse polarity protection
- Connection: 1 removable 4-contact terminal block
- Aluminium housing, IP30 rating
- Dimensions: 30 x 115 x 70 mm
- Weight: 175 g
- DIN-rail mounting, wall mounting with optional kit
- Operating temperature: -10 to 60°C
- MTBF: 3,500,324 hours

FAQs

Q: What fibre type does the EDS-205A-M-SC support?
A: It has one 100BaseFX port with an SC connector for multi-mode fibre, with a typical distance of 4 km.

Q: Does the EDS-205A-M-SC need configuration?
A: No. It is an unmanaged switch with auto-negotiation and auto MDI/MDI-X on the copper ports, so it works as plug and play.

Q: What power input does it use?
A: It has redundant dual 12/24/48 VDC inputs with a 9.6 to 60 VDC operating range, via a removable 4-contact terminal block.

Q: How is the switch mounted?
A: It mounts on a DIN rail. Wall mounting is possible with an optional mounting kit.

Q: What is the operating temperature range?
A: This -M-SC model operates from -10 to 60°C.

Q: How many network ports does it have?
A: Five in total: four 10/100BaseT(X) RJ45 ports and one 100BaseFX multi-mode SC fibre port.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
