Moxa CSM-G200-1221/KC | CSM-G200 Slide-in Media Converter, RJ45 to SFP, KC

Authorised Moxa Partner

SKU:CSM-G200-1221/KC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

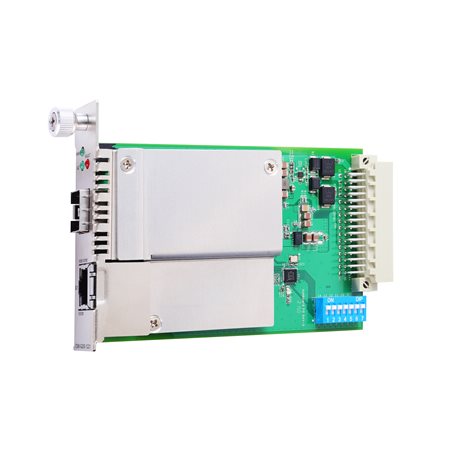

The Moxa CSM-G200-1221/KC is an unmanaged slide-in Gigabit Ethernet-to-fibre media converter module that converts 10/100/1000BaseT(X) copper to 100/1000BaseSFP fibre. This KC certified variant is built for the Moxa NRack System and installs in an NRack or TRC-190 rackmount chassis, making it a practical choice for extending copper Ethernet links over fibre in industrial and enterprise networks.

The module draws power from the chassis backplane and is hot-swappable, so links can be added or serviced without taking the rack down. Its SFP slot accepts standard MSA SFP transceivers, allowing you to match multimode or single-mode fibre and reach requirements. Link Fault Pass-Through, jumbo frame support and DIP switch settings for fibre speed forcing and copper auto-negotiation give flexible control for demanding deployments.

Features

- Unmanaged 10/100/1000BaseT(X) to 100/1000BaseSFP conversion
- Designed for the NRack System, powered from the chassis backplane
- Link Fault Pass-Through (LFP) support
- Jumbo frame support
- DIP switches for fibre speed forcing and copper auto-negotiation
- Accepts standard MSA SFP transceivers

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 10/100/1000BaseT(X) RJ45 port with auto-negotiation and auto MDI/MDI-X
- 1 x 100/1000BaseSFP slot
- Slide-in module for NRack System and TRC-190 rackmount chassis
- Hot-swappable module
- Dimensions: 86.8 x 124.3 x 21 mm
- Weight: 140 g
- MTBF: 1,579,447 hrs (MIL-HDBK-217F)
- KC certified variant

FAQs

Q: What does the CSM-G200-1221/KC convert?
A: It converts a 10/100/1000BaseT(X) RJ45 copper port to a 100/1000BaseSFP fibre port, letting you extend Ethernet over fibre.

Q: Does this module include SFP transceivers?
A: No. The SFP slot accepts standard MSA SFP transceivers, which you select to suit your fibre type and reach.

Q: What chassis does it install in?
A: It is a slide-in module for the Moxa NRack System and fits NRack and TRC-190 rackmount chassis.

Q: How is the module powered?
A: It draws power from the chassis backplane, so no separate power supply is needed for the module.

Q: Is the CSM-G200-1221/KC a managed device?
A: No. It is an unmanaged converter, configured with DIP switches for fibre speed forcing and copper auto-negotiation.

Q: How does the /KC variant differ from the standard model?
A: The /KC variant is the KC certified version of the CSM-G200-1221, with the same copper-to-SFP conversion function.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
