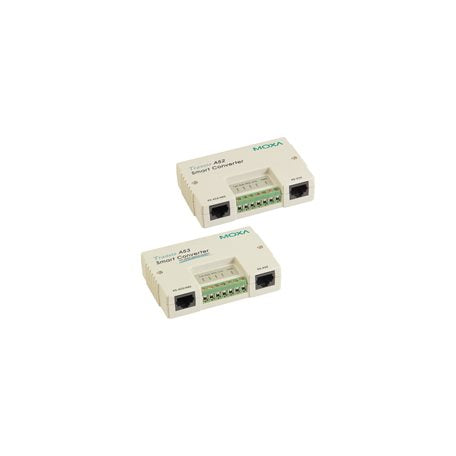

Moxa A53-DB9F w/o Adapter | Transio A53 RS-232/422/485 Serial Converter, 2 kV, DB9F, No Adapter

Authorised Moxa Partner

SKU:A53-DB9F w/o Adapter

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa A53-DB9F w/o Adapter is an entry-level RS-232 to RS-422/485 serial converter with 2 kV optical isolation on the RS-422/485 side. It suits industrial serial links where long cable runs, electrical noise and ground loops put communication reliability at risk. This variant ships with a DB9F cable and without a power adapter, so it can be powered from a terminal block or a separately sourced supply.

Automatic data direction control and automatic baudrate detection remove the need for manual switch configuration on RS-485 links. Built-in 120 ohm termination resistors, RTS/CTS flow control and TVS and ESD surge protection help keep multidrop networks of up to 32 nodes stable over distances of up to 1.2 km. The Transio A52/A53 Series is designed for compact, reliable serial connectivity in automation and monitoring installations.

Features

- ADDC for RS-485 requires no baudrate switch settings
- Automatic baudrate sensing
- RS-422 hardware flow control (CTS, RTS signals)
- 2 kV optical isolation for all RS-422/485 signals
- RS-485 multidrop operation up to 32 nodes
- Built-in 120 ohm termination resistors
- LED indicators for power and signal states
- Power can be supplied via terminal block as an alternative to an adapter

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial standards: RS-232, RS-422, RS-485 (2-wire and 4-wire)
- Connector: 10-pin RJ45, RS-232 side via included DB9F cable
- Isolation: 2 kV on RS-422/485 signals
- Input voltage: 9 to 30 VDC
- Input current: 195 mA at 9 VDC
- Flow control: RTS/CTS
- RS-485 data direction control: ADDC (automatic data direction control)
- Automatic baudrate detection
- RS-485 multidrop: up to 32 nodes, up to 1.2 km
- Built-in 120 ohm termination resistors
- ESD protection up to 25 kV, TVS protection on RS-422/485 signals
- Dimensions: 90 x 60 x 21 mm
- Housing: plastic, IP30
- Operating temperature: 0 to 55 degrees C
- MTBF: 1,870,854 hrs
- Warranty: 5 years

FAQs

Q: What does the A53-DB9F w/o Adapter include?
A: This variant ships with a DB9F cable and without a power adapter. Power can be supplied through the terminal block.

Q: Which serial standards does it convert between?
A: It converts RS-232 to RS-422 or RS-485, supporting both 2-wire and 4-wire RS-485.

Q: What isolation does it provide?
A: It provides 2 kV optical isolation on all RS-422/485 signals.

Q: What input voltage does it need?
A: It accepts 9 to 30 VDC, drawing 195 mA at 9 VDC.

Q: How many RS-485 nodes can it support?
A: RS-485 multidrop operation supports up to 32 nodes over distances of up to 1.2 km.

Q: Do I need to set baudrate or direction switches?
A: No. Automatic data direction control (ADDC) and automatic baudrate detection handle both without manual configuration.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
