Moxa A53-DB9F w/ Adapter | Transio A53 RS-232/422/485 Converter, 2 kV Isolation, Adapter

Authorised Moxa Partner

SKU:A53-DB9F w/ Adapter

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

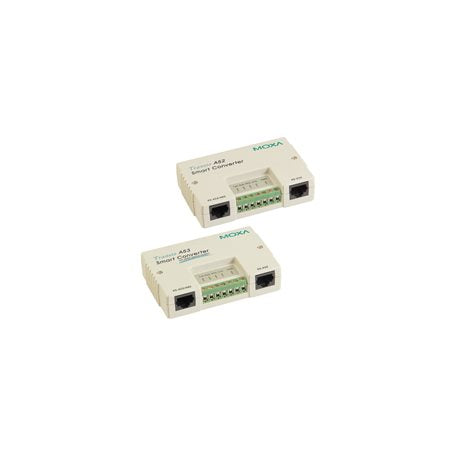

The Moxa A53-DB9F w/ Adapter is a Transio A53 serial converter that bridges RS-232 to RS-422/485 with 2 kV isolation protection. Built for industrial automation and field serial networks, it uses automatic data direction control (ADDC) for RS-485 and automatic baudrate detection, so it works without manual direction switching. This bundle includes a DB9F serial cable and a power adapter, so it is ready to deploy out of the box.

The compact IP30 plastic housing accepts a 9 to 30 VDC input and supports RS-485 multidrop operation of up to 32 nodes. RS-422 hardware flow control (CTS, RTS) and LED indicators for power and signal status make installation and troubleshooting straightforward in control cabinets and on equipment racks.

Features

- Automatic Data Direction Control (ADDC) for RS-485
- Automatic baudrate detection
- RS-422 hardware flow control (CTS, RTS signals)
- LED indicators for power and signal status
- RS-485 multidrop operation, up to 32 nodes
- 2 kV isolation protection to guard serial equipment against surges and ground loops

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial standards: RS-232, RS-422, RS-485
- Serial connector: 10-pin RJ45
- Serial isolation: 2 kV
- Number of ports: 2
- Flow control: RTS/CTS
- RS-485 data direction control: ADDC (automatic data direction control)
- Input voltage: 9 to 30 VDC
- Input current: 195 mA @ 9 VDC
- Power input: 1 x power input jack
- Overload current protection supported
- Housing: plastic, IP30
- MTBF: 1,870,854 hrs (Telcordia)
- Package includes: 1 x Transio A52/A53 converter, DB9F serial cable, power adapter

FAQs

Q: What serial standards does the A53-DB9F w/ Adapter support?
A: It supports RS-232, RS-422 and RS-485, allowing conversion between RS-232 and RS-422/485 devices.

Q: What is included in the package?
A: The package includes one Transio A52/A53 converter, a DB9F serial cable and a power adapter.

Q: Does it provide electrical isolation?
A: Yes. The A53 series provides 2 kV serial isolation protection.

Q: Do I need to configure data direction for RS-485?
A: No. It uses ADDC (automatic data direction control), so RS-485 direction is handled automatically.

Q: How many RS-485 nodes can it support?
A: It supports RS-485 multidrop operation of up to 32 nodes.

Q: What power input does it accept?
A: It accepts 9 to 30 VDC through a power input jack, and the included power adapter covers standard installations.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
