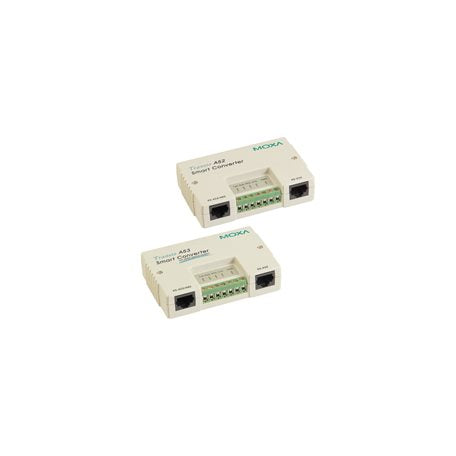

Moxa A53-DB25F w/o Adapter | Transio A53 RS-232 to RS-422/485 Converter, 2 kV, DB25F

Authorised Moxa Partner

SKU:A53-DB25F w/o Adapter

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Transio A53-DB25F is an RS-232 to RS-422/485 serial converter with 2 kV isolation, built for protecting industrial serial links from ground loops and surges. This variant ships with a 10-pin RJ45 to DB25F serial cable and without a power adapter, so it suits installations that already have a 9-30 VDC supply.

Automatic data direction control (ADDC) removes the need for software handling of RS-485 direction, and automatic baudrate detection simplifies setup. Built-in 120-ohm termination resistors and RS-485 multidrop support for up to 32 nodes make it a practical choice for connecting legacy RS-232 equipment to longer-distance RS-422/485 networks.

Features

- ADDC (Automatic Data Direction Control) for RS-485
- Automatic baudrate detection
- RS-422 hardware flow control using CTS and RTS signals
- LED indicators for power and signal status
- RS-485 multidrop operation, up to 32 nodes
- 2 kV isolation protection
- Built-in 120-ohm termination resistors

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial standards: RS-232, RS-422, RS-485
- Serial connector: 10-pin RJ45
- Serial isolation: 2 kV
- Flow control: RTS/CTS
- RS-485 data direction control: ADDC
- Input voltage: 9 to 30 VDC, 1 power input via power input jack
- Power consumption: 195 mA @ 9 VDC
- Overload current protection supported
- Housing: plastic, IP30
- Dimensions: 90 x 60 x 21 mm
- Weight: 85 g
- Installation: desktop
- Operating temperature: 0 to 55°C
- Storage temperature: -20 to 75°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- MTBF: 1,870,854 hrs (Telcordia)
- Package: 1 x converter, 1 x 10-pin RJ45 to DB25F cable
- Power adapter not included

FAQs

Q: Does the A53-DB25F w/o Adapter include a power adapter?
A: No. This variant ships without a power adapter and requires a separate 9 to 30 VDC supply connected to the power input jack.

Q: What cable is included in the box?
A: The package includes one converter and one 10-pin RJ45 to DB25F serial cable.

Q: What serial standards does this converter support?
A: It converts between RS-232 and RS-422/485, with RTS/CTS flow control and automatic data direction control (ADDC) for RS-485.

Q: How many RS-485 nodes can it support?
A: It supports RS-485 multidrop operation with up to 32 nodes.

Q: Does it provide electrical isolation?
A: Yes. The A53 series provides 2 kV serial isolation to help protect equipment from surges and ground loops.

Q: Can it be mounted on a DIN rail?
A: This model is designed for desktop installation, with a plastic IP30 housing measuring 90 x 60 x 21 mm.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
