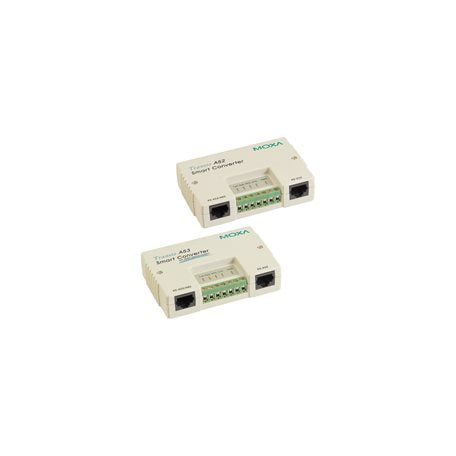

Moxa A52-DB9F w/o Adapter | Transio A52 RS-232/422/485 Serial Converter, DB9F Cable, No Adapter

Authorised Moxa Partner

SKU:A52-DB9F w/o Adapter

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa A52-DB9F w/o Adapter is an entry-level RS-232 to RS-422/485 serial converter from the Transio A52/A53 Series. It extends serial transmission distance and supports RS-485 multidrop operation of up to 32 nodes over distances of up to 1.2 km. This variant ships with a DB9F cable and without a power adapter, so it suits sites that already have a suitable 9 to 30 VDC supply.

Automatic data direction control (ADDC) removes the need for manual RS-485 direction handling, while automatic baudrate detection and RTS/CTS flow control simplify integration with industrial serial devices. The compact IP30 plastic housing is built for desktop installation, and 25 kV ESD surge protection helps protect connected equipment.

Features

- ADDC (Automatic Data Direction Control) RS-485 data control
- Automatic baudrate detection
- RS-422 hardware flow control with CTS and RTS signals
- LED indicators for power and signal status
- RS-485 multidrop operation, up to 32 nodes
- 25 kV ESD surge protection
- Built-in 120-ohm termination resistors

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial standards: RS-232, RS-422, RS-485
- Serial connector: 10-pin RJ45
- Cable: DB9F, power adapter not included
- Flow control: RTS/CTS
- RS-485 data direction control: ADDC (automatic data direction control)
- RS-485 multidrop operation up to 32 nodes, up to 1.2 km
- Input voltage: 9 to 30 VDC via power input jack
- Power consumption: 170 mA @ 9 VDC
- Overload current protection supported
- Housing: plastic, IP30
- Dimensions: 90 x 60 x 21 mm
- Weight: 85 g
- Installation: Desktop
- Operating temperature: 0 to 55°C
- Storage temperature: -20 to 75°C
- Approvals: CE, FCC, RoHS

FAQs

Q: Does the A52-DB9F w/o Adapter include a power adapter?
A: No. This variant ships with a DB9F cable and without a power adapter. It accepts 9 to 30 VDC through its power input jack, so you will need a suitable supply.

Q: Which serial standards does this converter support?
A: It supports RS-232, RS-422 and RS-485, allowing RS-232 devices to connect to RS-422/485 serial networks.

Q: How many RS-485 nodes can it support, and over what distance?
A: RS-485 multidrop operation supports up to 32 nodes over distances of up to 1.2 km.

Q: Do I need to manually control RS-485 data direction?
A: No. ADDC (automatic data direction control) handles RS-485 data direction automatically.

Q: Can it be mounted in a rack or on a DIN rail?
A: This model is designed for desktop installation in an IP30 plastic housing.

Q: What is the operating temperature range?
A: The A52 operates from 0 to 55°C and can be stored from -20 to 75°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
