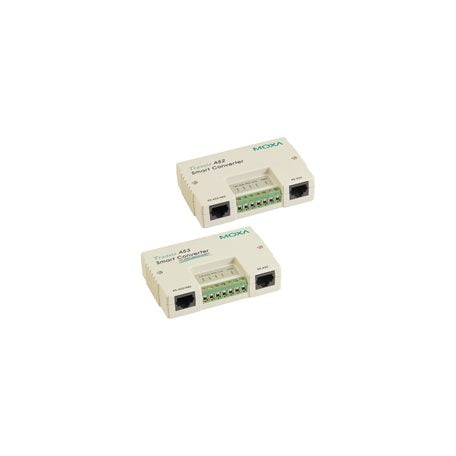

Moxa A52-DB9F w/ Adapter | Transio A52 RS-232/422/485 Converter, DB9F Cable, Adapter

Authorised Moxa Partner

SKU:A52-DB9F w/ Adapter

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Transio A52-DB9F with adapter is an industrial RS-232 to RS-422/485 serial converter that extends serial communication range and resolves interface compatibility issues in the field. This kit includes a DB9F cable and a power adapter, so it is ready to deploy on the desk or in a control cabinet environment without sourcing extra accessories.

Automatic data direction control (ADDC) removes the need for manual direction switching on RS-485 links, while RTS/CTS flow control and overload current protection support dependable operation. A compact IP30 plastic housing and a wide 9 to 30 VDC input make it a flexible fit for industrial serial networks.

Features

- Converts between RS-232, RS-422 and RS-485 to avoid serial interface compatibility issues
- Automatic data direction control (ADDC) for RS-485
- RTS/CTS flow control
- Overload current protection
- Power adapter and DB9F cable included

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial standards: RS-232, RS-422, RS-485
- 2 serial ports
- Connector: 10-pin RJ45 (DB9F cable included)
- Flow control: RTS/CTS
- RS-485 data direction control: ADDC (automatic data direction control)
- Input voltage: 9 to 30 VDC via power input jack
- Input current: 170 mA @ 9 VDC
- Overload current protection supported
- Housing: plastic, IP30
- Dimensions: 90 x 60 x 21 mm (3.54 x 2.36 x 0.83 in)
- Weight: 85 g (0.19 lb)
- Installation: desktop

FAQs

Q: Which serial standards does the A52-DB9F with adapter support?
A: It supports RS-232, RS-422 and RS-485, allowing conversion between these serial interfaces.

Q: Does it need manual direction control for RS-485?
A: No. It uses automatic data direction control (ADDC), so RS-485 data direction is handled automatically.

Q: What is included in this kit?
A: This variant includes a power adapter and a DB9F cable alongside the converter.

Q: What input voltage does it accept?
A: It accepts 9 to 30 VDC through the power input jack, with an input current of 170 mA at 9 VDC.

Q: Does it support flow control?
A: Yes, it supports RTS/CTS flow control.

Q: How is the A52-DB9F mounted?
A: It is designed for desktop installation in a compact IP30 plastic housing measuring 90 x 60 x 21 mm.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
