Moxa A52-DB25F w/o Adapter | Transio A52 RS-232 to RS-422/485 Converter, DB25F, No Adapter

Authorised Moxa Partner

SKU:A52-DB25F w/o Adapter

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

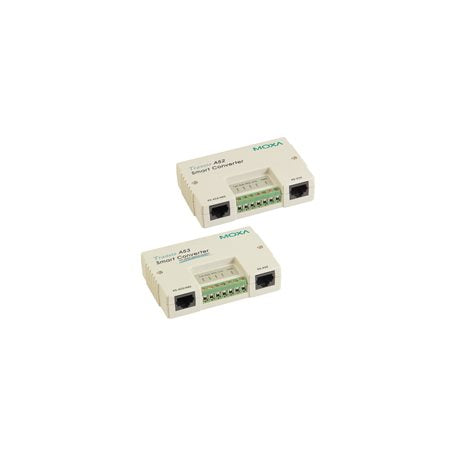

The Moxa A52-DB25F w/o Adapter is an entry-level smart RS-232 to RS-422/485 bi-directional serial converter from the Transio A52/A53 Series. It extends RS-232 transmission distance and adds RS-485 multidrop networking, supporting up to 32 nodes with automatic data direction control and built-in 120-ohm termination resistors. This SKU ships with a DB25F cable and without a power adapter, making it suited to sites that already have a compatible 9 to 30 VDC supply.

With baudrates up to 921.6 kbps, automatic baudrate detection, RTS/CTS flow control and overload current protection, the converter suits industrial serial links between PLCs, meters, sensors and controllers. The compact IP30 plastic housing is designed for desktop installation and operates from 0 to 55\u00b0C.

Features

- Automatic Data Direction Control (ADDC) for RS-485
- Automatic baudrate detection
- RS-422 hardware flow control with CTS and RTS signals
- LED indicators for power and signal status
- RS-485 multidrop operation, up to 32 nodes
- Built-in 120-ohm termination resistors
- TVS protection on RS-422/485 signals

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial standards: RS-232, RS-422, RS-485
- Connector: 10-pin RJ45
- Cable: DB25F (power adapter not included)
- Flow control: RTS/CTS
- RS-485 data direction control: ADDC (automatic data direction control)
- Baudrate: up to 921.6 kbps
- Input voltage: 9 to 30 VDC, 1 power input via power input jack
- Power consumption: 170 mA @ 9 VDC
- Overload current protection supported
- Housing: plastic, IP30
- Dimensions: 90 x 60 x 21 mm (3.54 x 2.36 x 0.83 in)
- Weight: 85 g (0.19 lb)
- Installation: desktop
- Operating temperature: 0 to 55\u00b0C (32 to 131\u00b0F)
- Storage temperature: -20 to 75\u00b0C (-4 to 167\u00b0F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- MTBF: 1,870,854 hrs (Telcordia)

FAQs

Q: Does the A52-DB25F w/o Adapter include a power adapter?
A: No. This SKU ships with a DB25F cable and without a power adapter. It needs a 9 to 30 VDC supply connected to the power input jack.

Q: What serial standards does this converter support?
A: It converts between RS-232 and RS-422/485, and supports bi-directional operation. It uses a 10-pin RJ45 connector on the serial side.

Q: How many RS-485 nodes can it support?
A: RS-485 multidrop operation supports up to 32 nodes, with built-in 120-ohm termination resistors.

Q: Do I need to configure the RS-485 data direction?
A: No. Automatic Data Direction Control (ADDC) handles RS-485 data direction, and automatic baudrate detection is supported.

Q: What is the maximum baudrate?
A: The converter supports baudrates up to 921.6 kbps.

Q: Is this converter suitable for DIN-rail or harsh environments?
A: This model is designed for desktop installation in an IP30 plastic housing, with an operating temperature range of 0 to 55\u00b0C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
