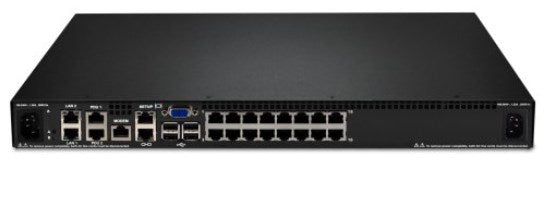

• Lenovo 1754D1X KVM switch rack mount black front with ethernet VGA ports
1 1

Lenovo

Lenovo 1754D1X | Global Console Manager GCM16 KVM Switch, 16-Port, 1U Rack

Lenovo 1754D1X | Global Console Manager GCM16 KVM Switch, 16-Port, 1U Rack

Authorised Lenovo Partner

1754D1X

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Lenovo GCM16 (2x2x16) Global Console Manager is a 1U rack-mount digital KVM switch that combines KVM-over-IP and serial console management in a single appliance. It supports up to 16 connected servers with 2 local and 2 remote users, making it well suited to data centre and server room administration where multiple technicians need simultaneous access.

With a maximum video resolution of 1680 x 1050, three RJ-45 network ports and four USB ports, the GCM16 provides flexible local and remote console access from one compact rack unit. The package includes mounting hardware, a 1U filler panel, dual C13/C14 rack power cables, RJ45-DB9 serial adapters and 16 terminators to get a rack deployment started.

Features

- KVM-over-IP and serial console management in a single appliance
- Digital KVM with local and remote user access
- Supports up to 16 connected servers
- Two local and two remote users can connect at the same time
- Space-saving 1U rack-mountable form factor

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: GCM16, part number 1754D1X
- Configuration: 2x2x16
- 16 server ports
- 2 local users and 2 remote users
- Maximum video resolution: 1680 x 1050 (WSXGA+)
- 3 x RJ-45 network ports
- 4 x USB ports
- Form factor: rack-mountable, 1U
- Dimensions: 1.7in H x 17in W x 9.2in D
- Weight: approx. 7 lb
- Box contents: mounting hardware, 1U filler panel, 2 x C13/C14 rack power cables, RJ45-DB9F DCE adapter, RJ45-DB9M DTE adapter, 16 terminators

FAQs

Q: How many servers can the Lenovo GCM16 manage?
A: The GCM16 supports up to 16 connected computers through its server ports.

Q: How many users can access the GCM16 at the same time?
A: It supports 2 local users and 2 remote users, as indicated by the 2x2x16 configuration.

Q: Does the GCM16 support remote access over a network?
A: Yes. It is a digital KVM-over-IP console manager with RJ-45 network ports for remote user access, and it also provides serial console management.

Q: What is the maximum video resolution supported?
A: The GCM16 supports a maximum video resolution of 1680 x 1050 (WSXGA+).

Q: What is included in the box?
A: The package includes mounting hardware, a 1U filler panel, two C13/C14 rack power cables, RJ45-DB9F DCE and RJ45-DB9M DTE adapters, and 16 terminators.

Q: What rack space does the GCM16 require?
A: It is a 1U rack-mountable unit measuring 1.7in high, 17in wide and 9.2in deep.
