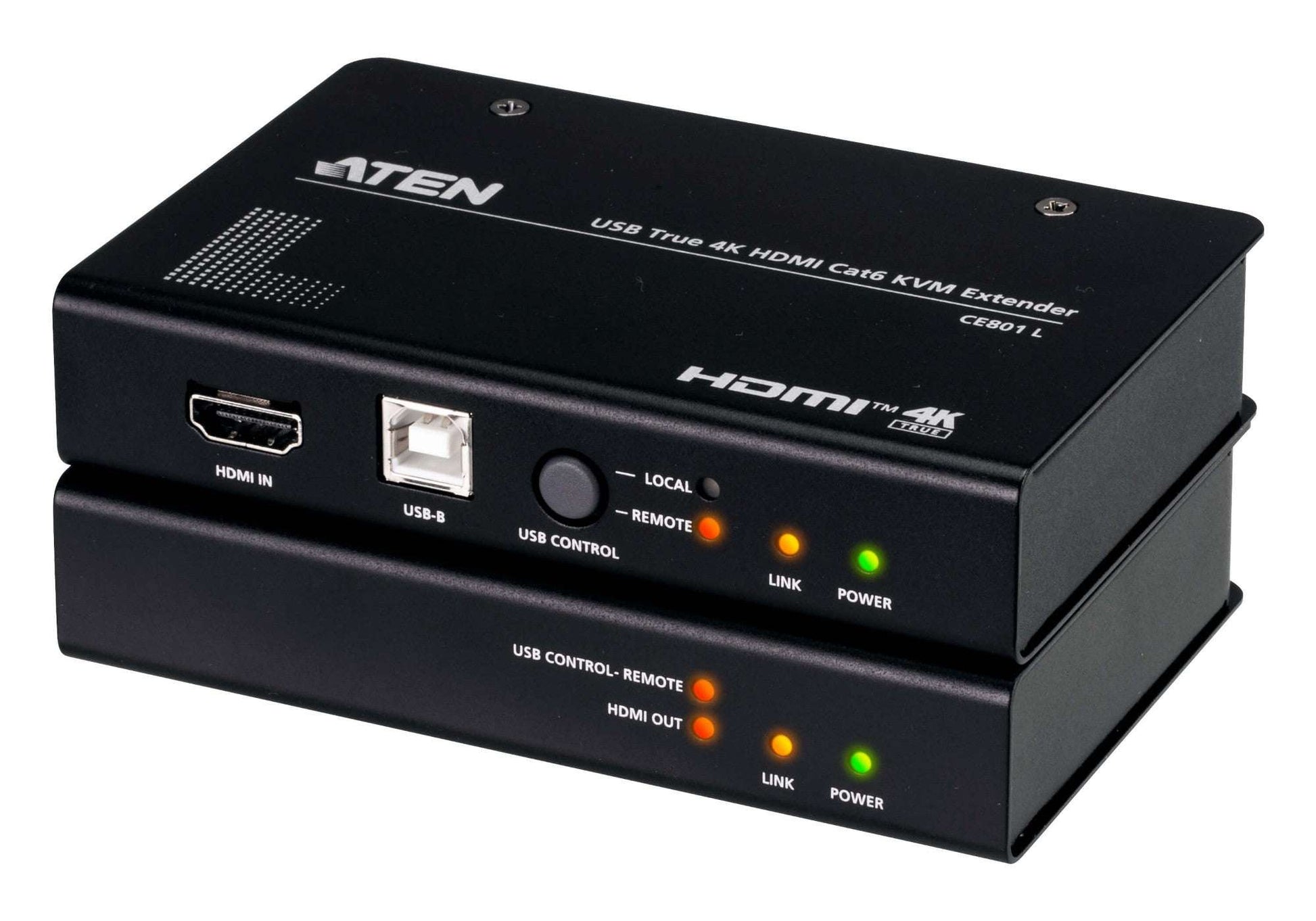

ATEN CE801-AT-U | USB HDMI KVM Extender, True 4K @ 70m, FHD @ 100m, TAA

ATEN CE801-AT-U | USB HDMI KVM Extender, True 4K @ 70m, FHD @ 100m, TAA

Authorised ATEN Partner

SKU:CE801-AT-U

$509.80 inc. GST
$463.45 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock:24

Description

The ATEN CE801-AT-U is a USB True 4K HDMI KVM extender kit that carries HDMI video, USB keyboard and mouse control, embedded audio and RS-232 serial over a single Cat 6 cable. It delivers 4K 3840 x 2160 @ 60 Hz (4:4:4) up to 70 m, or 1080p @ 60 Hz up to 100 m in Long Reach mode, and this TAA-compliant version suits government and regulated deployments.

The kit includes the CE801L local unit and CE801R remote unit, with dual console USB keyboard and mouse operation switchable via a USB control mode pushbutton. It supports HDR10, HDCP 2.2 / 2.3, 7.1ch Dolby and DTS digital audio, and plug-and-play installation with no software or drivers. The metal housing is rack-mountable and includes built-in 8KV/15KV ESD protection.

Features

- Extends HDMI video, USB keyboard/mouse control, embedded audio and RS-232 control over 70 m on Cat 6
- Long Reach mode extends 1080p up to 100 m
- True 4K 3840 x 2160 @ 60 Hz (4:4:4) with HDCP 2.2 / 2.3 compliance
- Dual console USB keyboard/mouse operation, switchable via a USB control mode pushbutton
- HDR10 support
- Wide screen format support
- 7.1ch Dolby and DTS digital audio support
- Plug-and-play, no software or driver required
- Built-in 8KV/15KV ESD protection
- Rack-mountable metal housing
- DC jack with screw lock for a secure power connection
- TAA-compliant version

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Extends HDMI, USB keyboard/mouse, audio and RS-232 over one Cat 6 cable
- 4K (3840 x 2160 @ 60 Hz 4:4:4) up to 70 m
- 1080p @ 60 Hz (4:4:4) up to 100 m in Long Reach mode
- Local unit (CE801L): 1 x HDMI console, 2 x USB Type A (keyboard and mouse), 1 x HDMI KVM port, 1 x USB Type B
- RS-232: DB-9 Female on CE801L, DB-9 Male on CE801R
- Unit to unit: 1 x RJ-45 Female
- Video compliance: HDMI 4K/60 Hz, 4K HDR, HDCP 2.3 compatible
- Power consumption: DC5V 2.59 W (CE801L), DC5V 1.88 W (CE801R)
- Operating temperature: 0 to 40 C
- Storage temperature: -20 to 60 C
- Humidity: 0 to 80% RH, non-condensing
- Housing: Metal
- Weight: 0.32 kg (CE801L), 0.31 kg (CE801R)
- Dimensions (L x W x H): 12.80 x 8.21 x 2.50 cm (CE801L), 12.80 x 8.15 x 2.50 cm (CE801R)
- Package contents: local unit, remote unit, 2 x power adapters, 1 x user instructions

FAQs

Q: What is the maximum distance for 4K video with the CE801-AT-U?
A: It supports 4K 3840 x 2160 @ 60 Hz (4:4:4) up to 70 m over Cat 6 cable. In Long Reach mode, 1080p @ 60 Hz is supported up to 100 m.

Q: What signals does the extender carry over the single Cat 6 cable?
A: It extends HDMI video, USB keyboard and mouse, embedded audio and RS-232 serial control between the local and remote units.

Q: Does the CE801-AT-U support dual console operation?
A: Yes. The local unit has two USB Type A ports for a keyboard and mouse and the remote unit provides a second console, with control switchable via a USB control mode pushbutton.

Q: Is any software or driver installation required?
A: No. The extender is plug-and-play and works without software or drivers.

Q: What is included in the kit?
A: The kit includes the CE801L local unit, the CE801R remote unit, two power adapters and user instructions. The Cat 6 cable between the units is not included.

Q: Can the units be rack mounted?
A: Yes. The metal housing is rack-mountable.
