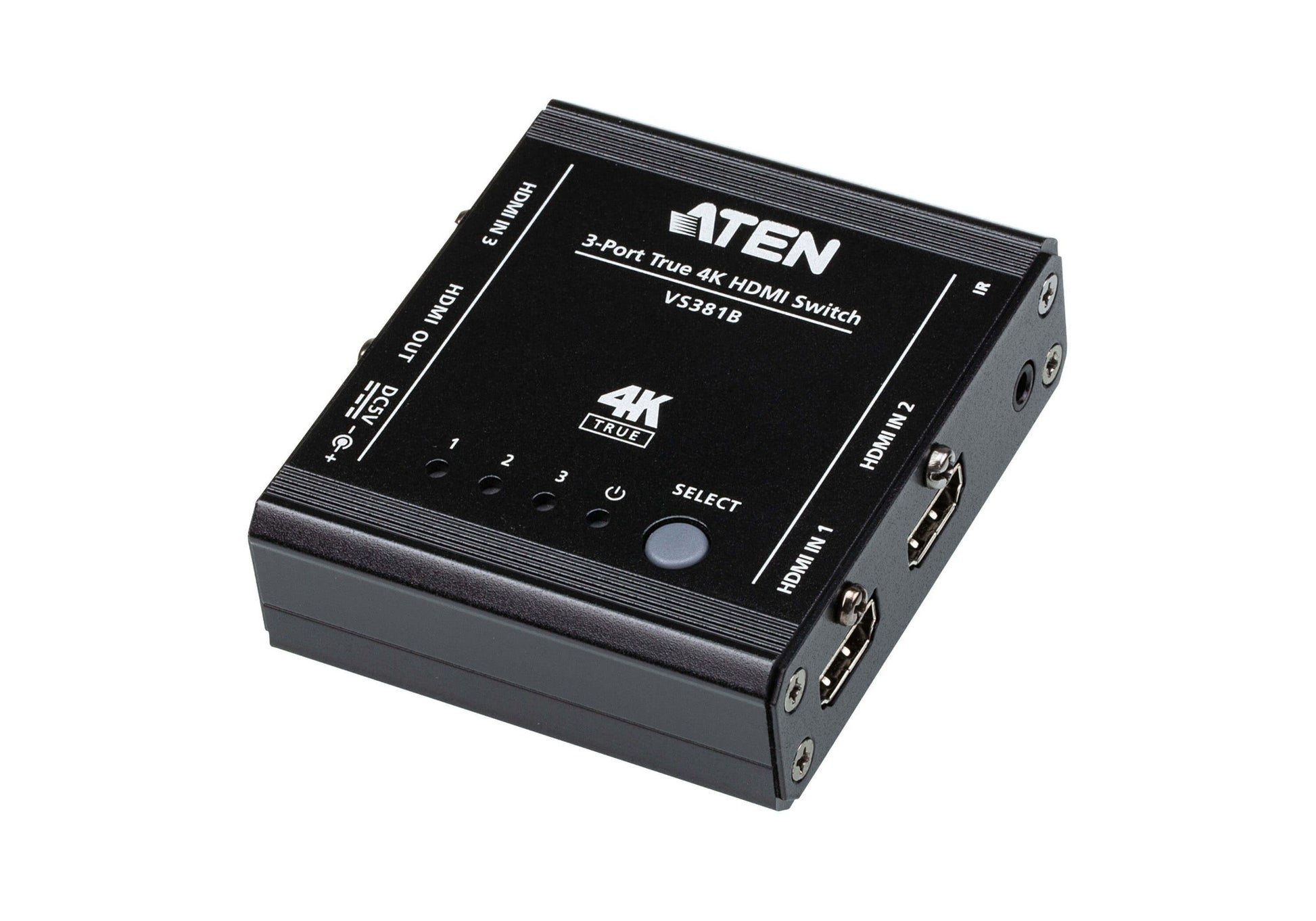

ATEN VS381B-AT | VS381B 3-Port True 4K HDMI Switch, 60Hz, IR Remote

ATEN VS381B-AT | VS381B 3-Port True 4K HDMI Switch, 60Hz, IR Remote

Authorised ATEN Partner

SKU:VS381B-AT

$94.33 inc. GST
$85.75 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock:3

Description

The ATEN VS381B is a 3-port True 4K HDMI switch that lets you share one display across three HDMI sources. It supports resolutions up to 4096 x 2160 / 3840 x 2160 at 60Hz with 4:4:4 colour, and is built to HDMI 2.0 with HDCP 2.2, HDR10 and Dolby Vision for sharp, accurate video in meeting rooms, classrooms and AV installations.

Sources can be selected using the front-panel pushbutton, the supplied IR remote control or Auto Switch, which makes day-to-day operation simple for end users. The compact metal housing and lockable HDMI port design help keep connections secure, while support for HDR, 3D, Deep Color and HD lossless audio formats keeps the signal path flexible.

Features

- Switch between 3 HDMI sources on a single display
- True 4K at 60Hz with 4:4:4 colour support
- Pushbutton, IR remote and Auto Switch source selection
- Lockable HDMI port design for secure connections
- Metal housing for durability
- Supports HDR, 3D, Deep Color and HD lossless audio formats
- Package includes USB to DC power cord, IR remote control, IR receiver and user instructions

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 3 x HDMI Type A Female inputs
- 1 x HDMI Type A Female output
- Max resolution: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
- Max data rate: 18 Gbps (6 Gbps per lane)
- Max pixel clock: 600 MHz
- Compliance: HDMI 2.0 (3D, Deep Color, 4K, HDR10, Dolby Vision), HDCP 2.2
- Max distance: 5 m at up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
- Input and output impedance: 100 Ω
- Source selection: pushbutton, IR remote control, Auto Switch
- IR control: 1 x mini stereo jack female, up to 5 m
- Power: 1 x DC jack, DC 5V, 1.46W (supplied USB to DC power cord)
- Operating temperature: 0 to 40 °C
- Storage temperature: -20 to 60 °C
- Humidity: 0 to 80% RH, non-condensing
- Housing: metal
- Weight: 0.15 kg
- Dimensions (L x W x H): 7.16 x 7.90 x 2.55 cm

FAQs

Q: What resolution does the VS381B support?
A: It supports up to 4096 x 2160 / 3840 x 2160 at 60Hz with 4:4:4 colour, with HDMI 2.0, HDCP 2.2, HDR10 and Dolby Vision compatibility.

Q: How many inputs and outputs does it have?
A: The VS381B has three HDMI Type A female inputs and one HDMI Type A female output, so three sources share one display.

Q: How can I change the active input?
A: You can use the front-panel pushbutton, the supplied IR remote control or the Auto Switch function.

Q: What is the maximum cable distance?
A: Input and output distances are up to 5 m at up to 4096 x 2160 / 3840 x 2160 at 60Hz (4:4:4).

Q: How is the switch powered and what is in the box?
A: It is powered via a DC 5V jack, using the supplied USB to DC power cord. The package also includes an IR remote control, IR receiver and user instructions.

Q: Can I lock the HDMI cables in place?
A: Yes, the switch has a lockable HDMI port design. The ATEN LockPro 2X-EA12 is sold separately.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
