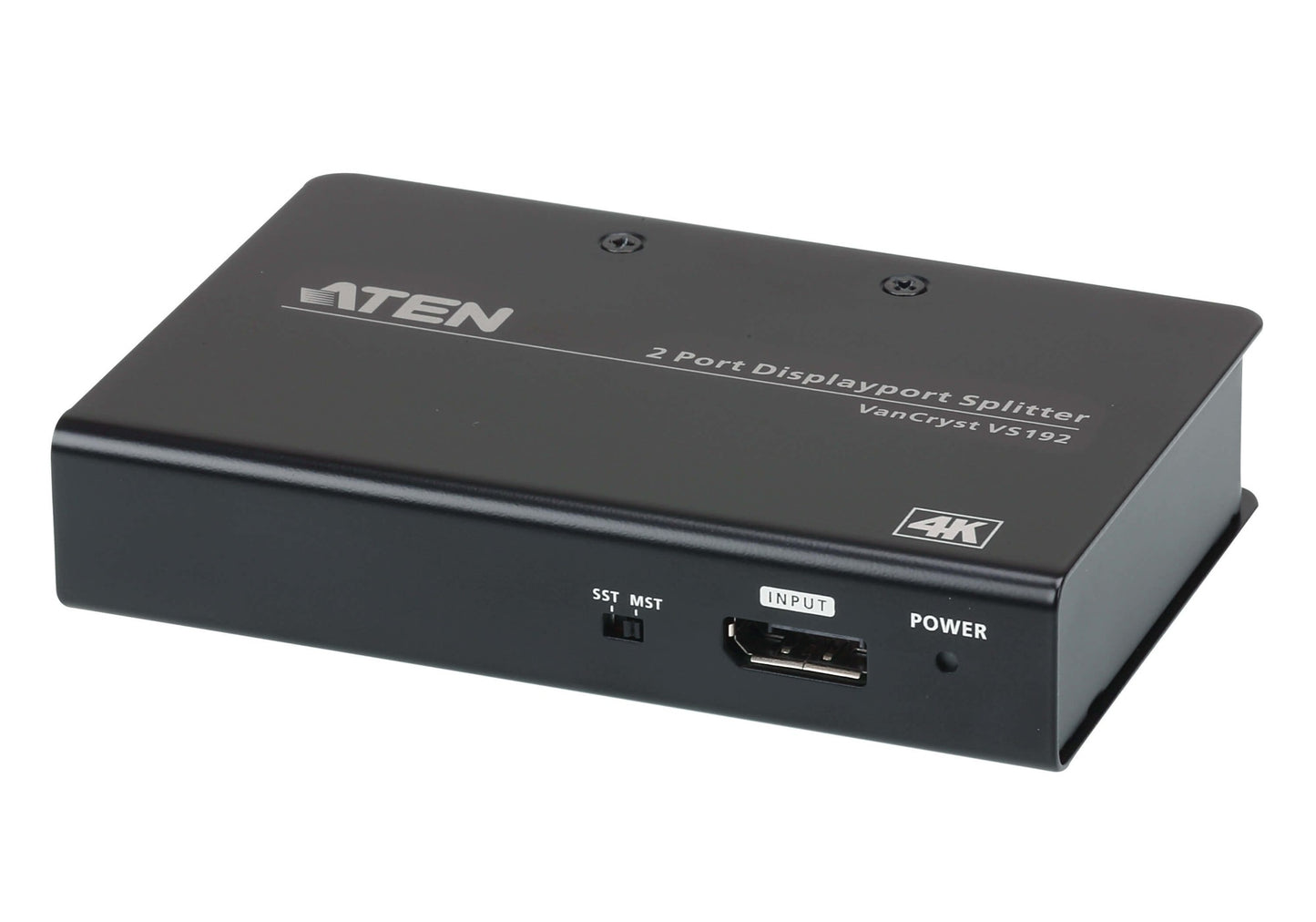

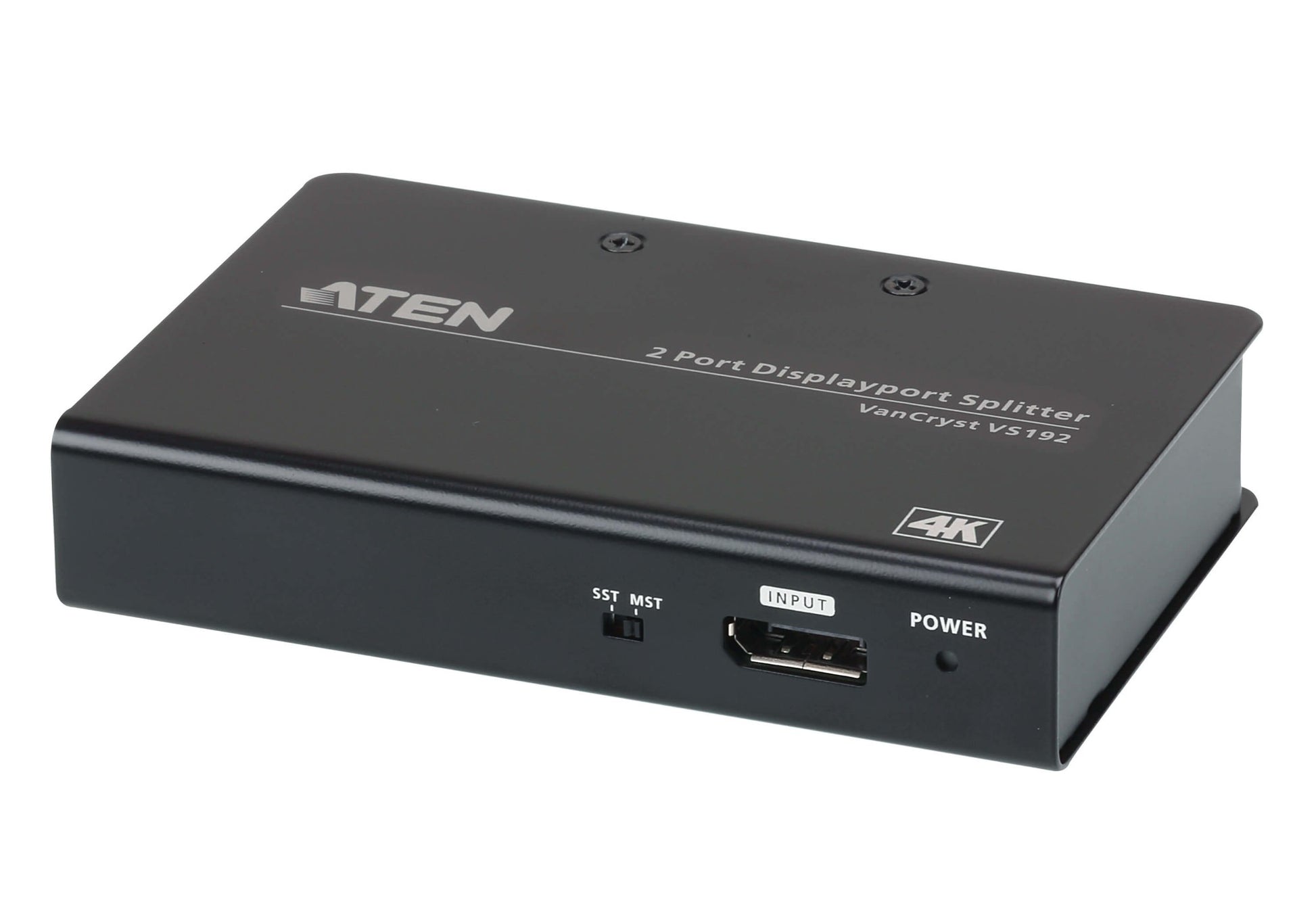

• ATEN VS192 4K DisplayPort splitter with 2 DP out ports and power input
1 1

ATEN

ATEN VS192-AT-U | VS192 DisplayPort 1.2a Splitter, 1 x DP In, 2 x DP Out, 4K60, MST

ATEN VS192-AT-U | VS192 DisplayPort 1.2a Splitter, 1 x DP In, 2 x DP Out, 4K60, MST

Authorised ATEN Partner

VS192-AT-U

Stock Status: Enquire

$202.40 inc. GST
$184.00 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The ATEN VS192 is a 2-port DisplayPort 1.2a splitter/MST hub that takes one DP source and outputs to two DP displays at up to 4K60. It supports both Extend (MST) and Split/Mirror modes for flexible multi-display setups in offices, control rooms, and digital signage. Engineered for reliable, driver-free operation with DP 1.2a GPUs, it delivers crisp 4K UHD and broad compatibility, and is backed by the manufacturer's warranty.

Features

- Flexible multi-display: Extend (MST) or Mirror from a single DP source
- Crisp 4K60 output for detailed visuals and smooth playback
- Simple connectivity with 1 x DP input and 2 x DP outputs
- DP 1.2a MST compliance for broad GPU compatibility
- Plug-and-play setup; no software required

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 2-port DisplayPort splitter (DP 1.2a MST hub)
- 1 x DisplayPort input, 2 x DisplayPort outputs
- Supports 4K UHD up to 4096 x 2160 and 3840 x 2160 at 60 Hz
- Extend (MST) and Split/Mirror display modes
- DisplayPort 1.2a Multi-Stream Transport compliant
- Backward compatible with lower DP resolutions and refresh rates
- Plug-and-play operation; no driver required

FAQs

Q: What does the VS192 do?
A: It takes one DisplayPort source and outputs to two DisplayPort displays, supporting both Mirror (same image) and Extend (independent desktops via MST) modes.

Q: Does it support Extended desktop?
A: Yes. The VS192 is a DP 1.2a MST hub that supports Extend mode when used with a GPU and operating system that support DP MST.

Q: What resolutions and refresh rates are supported?
A: It supports up to 4K UHD (4096 x 2160 or 3840 x 2160) at 60 Hz. Lower resolutions and refresh rates are also supported.

Q: Can it run two 4K60 monitors at the same time?
A: Overall capability depends on DisplayPort 1.2 bandwidth and your GPU. DP 1.2 typically supports one 4K60 plus a second display at a lower resolution/refresh, or two 4K at lower refresh (e.g., 30 Hz).

Q: Is it compatible with my operating system?
A: It's OS-agnostic and requires no drivers. For Extend (MST), your GPU and OS must support DP 1.2 MST. Mirror mode works broadly across platforms.
