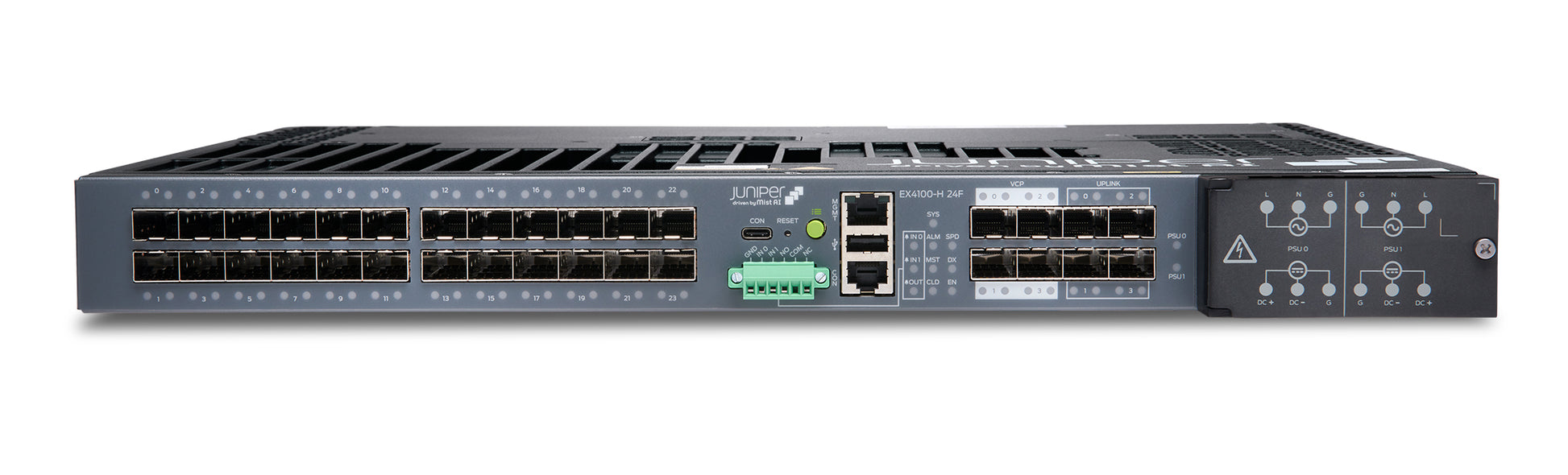

• Juniper EX4100-H-24F-DC-T black switch with Ethernet ports and green power LED
1 1

Juniper

Juniper EX4100-H-24F-DC-T | EX4100-H 24-Port SFP Switch, 4x 10G SFP+, DC PSU, MACsec

Juniper EX4100-H-24F-DC-T | EX4100-H 24-Port SFP Switch, 4x 10G SFP+, DC PSU, MACsec

Authorised Juniper Partner

EX4100-H-24F-DC-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Juniper EX4100-H-24F-DC-T is a hardened, fanless 24-port fibre access switch with 24 x 100M/1GbE SFP ports, four 10GbE SFP+ uplinks and a 90 W DC power supply. MACsec AES256 encryption secures links at the edge, and the TAA compliant design suits harsh or remote deployments such as industrial sites, transport and utilities.

Four additional 10GbE SFP+ Virtual Chassis ports support stacking and uplinks, and dual load-sharing, hot-swappable redundant power supplies are supported. The switch is managed through Juniper Mist Wired Assurance with Day 0 claim or adopt onboarding and Day 1 template-based configuration. Optics are sold separately.

Features

- Managed through Juniper Mist Wired Assurance with Day 0 claim or adopt onboarding and Day 1 template-based configuration
- Virtual Chassis uplink ports for stacking
- MACsec AES256 encryption for secure links
- Hardened fanless design with DC power for harsh or remote deployments
- Redundant power supply support

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 24 x 100M/1GbE SFP access ports
- 4 x 10GbE SFP+ uplink ports
- 4 x 10GbE SFP+ stacking/uplink (Virtual Chassis) ports
- MACsec AES256
- 1 x JPSU-H-90W-DC (90 W DC power supply) included
- Dual load-sharing, hot-swappable internal and external redundant power supplies supported
- Layer 2/Layer 3 throughput: 172 Mpps (64-byte packets)
- Maximum MAC addresses: 64,000
- Jumbo frames: 9216 bytes
- VLAN IDs: 1 to 4094
- Fanless, convection-cooled design
- TAA compliant
- Optics sold separately

FAQs

Q: Does the EX4100-H-24F-DC-T include SFP optics?
A: No. The switch has 24 x 100M/1GbE SFP ports and 10GbE SFP+ ports, and optics are sold separately.

Q: What power supply is included?
A: It ships with one JPSU-H-90W-DC 90 W DC power supply. Dual load-sharing, hot-swappable internal and external redundant power supplies are supported.

Q: Does this switch support MACsec encryption?
A: Yes. It supports MACsec AES256 for encrypting links.

Q: Can the EX4100-H-24F-DC-T be stacked?
A: Yes. It has four 10GbE SFP+ ports that support Virtual Chassis stacking and can also be used as uplinks.

Q: Is this switch fanless?
A: Yes. It uses a fanless, convection-cooled design, which suits harsh or remote deployments.

Q: How is the switch managed?
A: It is managed through Juniper Mist Wired Assurance, with Day 0 claim or adopt onboarding and Day 1 template-based configuration.
