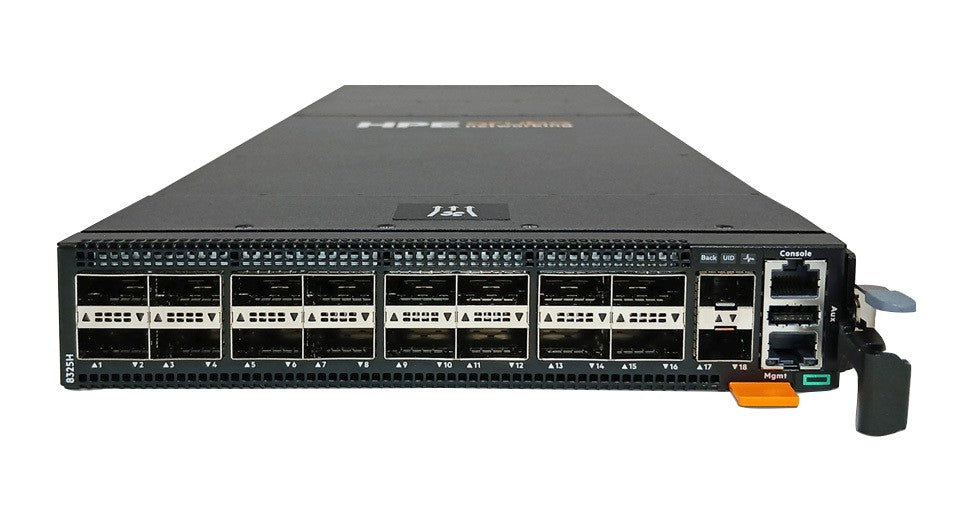

HPE S4Q68A | SN8325H 16-Port QSFP28 100GbE Half-Width Switch, Connector-to-Power

Authorised HPE Partner

SKU:S4Q68A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE Storage Ethernet Switch H-series SN8325H is a 1U half-width DCN switch delivering 16 ports of 40/100GbE QSFP28 connectivity with 4 Tbps full-duplex switching capacity. Powered by HPE Aruba Networking CX 8325, it supports breakout to 4x25GbE per port (up to 64 ports total), making it ideal for data centres, edge/colocation, and HCI storage environments where rack space and energy efficiency are critical. The Connector-to-Power airflow direction suits front-to-rear cooled deployments, and two switches fit in a single 1U rack slot.

Built for automated, high-availability storage fabrics, the SN8325H integrates with HPE Aruba Networking Central, Fabric Composer, NetConductor, and supports REST APIs and Python scripting for programmability. HPE VSX delivers non-disruptive upgrades and control-plane resilience, while SPOCK-validated compatibility ensures tested interoperability across hundreds of transceivers, cables, servers, and storage systems.

Features

- Powered by HPE Aruba Networking CX 8325 Switch Series for enterprise-grade performance
- All 16 QSFP28 ports independently configurable — no grouping restrictions
- Breakout to 4x25GbE per port delivers up to 64 x 25GbE connections from a single switch
- HPE Aruba Networking VSX (Virtual Switch Exchange) for high availability during upgrades or control-plane events
- Low-latency, lossless QoS for demanding storage and hybrid cloud workloads
- REST API and Python scripting support for network automation and programmability
- Cloud-managed via HPE Aruba Networking Central; also supports Fabric Composer and NetConductor
- SPOCK-validated compatibility with hundreds of HPE-qualified transceivers, cables, servers, and storage platforms
- Half-width form factor allows two switches per 1U — ideal for space-constrained and colocation environments
- Optimised for HCI, all-flash storage fabrics, and data centre edge deployments
- Limited lifetime warranty including built-in fans and power supplies

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 16 x QSFP28 ports supporting 40/100GbE
- Port speeds: 1/10/25/40/100GbE
- Breakout support: 4x25GbE per QSFP28 port (up to 64 x 25GbE ports total)
- ASIC switching capacity: 4 Tbps full-duplex
- Form factor: 1U half-width (2 switches per 1U rack space)
- Airflow direction: Connector to Power
- Layer 3 supported
- Two additional general-purpose 10GbE ports for telemetry or data
- Management software: HPE Aruba Networking CX 10.15.1000
- Protocol: Ethernet
- SKU: S4Q68A

FAQs

Q: What is the airflow direction of the S4Q68A SN8325H switch?
A: The S4Q68A features Connector-to-Power airflow, meaning air flows from the port side toward the power supply side. This suits standard front-to-rear cooled data centre and rack environments.

Q: How many switches fit in a 1U rack space?
A: The SN8325H is a half-width 1U switch, so two units can be installed side by side in a single 1U rack slot, maximising port density while conserving valuable rack space.

Q: Can the QSFP28 ports be broken out to 25GbE?
A: Yes. Each of the 16 QSFP28 ports supports 4x25GbE breakout, giving up to 64 x 25GbE ports in total — ideal for high-density server and storage connectivity without additional switches.

Q: What management options are available for the SN8325H?
A: The SN8325H supports HPE Aruba Networking Central (cloud management), Fabric Composer, NetConductor, and CLI. It also provides built-in REST APIs and Python scripting for automation and programmability.

Q: Is the SN8325H compatible with HPE storage and server systems?
A: Yes. HPE SPOCK-validated compatibility is published on HPE.com, confirming tested interoperability with hundreds of transceivers, optics, cables, servers, and storage systems.

Q: Can I purchase the HPE S4Q68A SN8325H in Australia?
A: Yes. The HPE S4Q68A is available through iptrading.com.au, an Australian B2B IT hardware reseller supplying authentic HPE equipment with reliable local service.
