Juniper

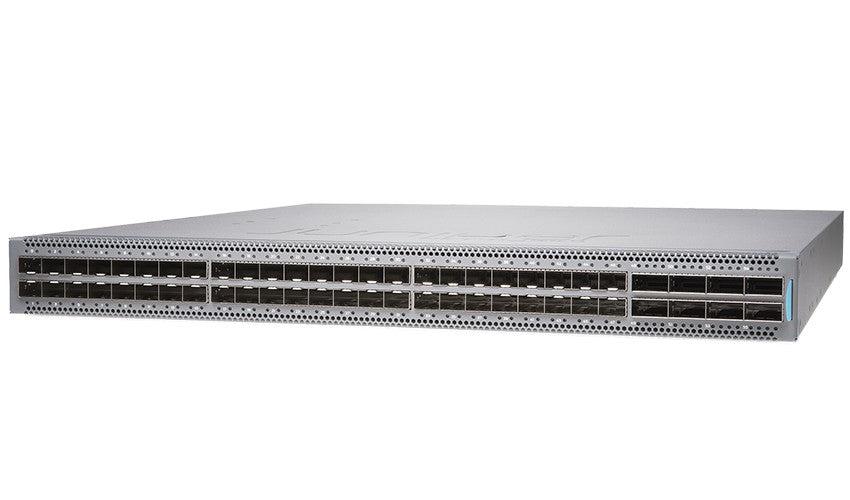

Juniper QFX5120-48Y-D-AFO2 | QFX5120 48-Port 25G Switch, AFO, Redundant DC PSUs & Fans

Juniper QFX5120-48Y-D-AFO2 | QFX5120 48-Port 25G Switch, AFO, Redundant DC PSUs & Fans

QFX5120-48Y-D-AFO2

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Juniper QFX5120 48-Port 25G Data Centre Switch is a high-density, spine-and-leaf architecture switch designed for modern data centre and cloud deployments. Equipped with 48 x 25G SFP28 ports and high-speed uplink capability, the QFX5120 delivers the low-latency, line-rate forwarding performance required for demanding workloads. This variant ships with airflow-out (AFO) cooling, redundant DC power supplies, and redundant fans, making it ideal for front-to-back airflow data centre environments. Base software features are included out of the box.

Built on Juniper's proven QFX platform, the QFX5120 supports advanced L2/L3 features, EVPN-VXLAN fabric deployments, and integrates seamlessly into Junos-managed network environments. Its redundant DC PSU and fan configuration ensures high availability for mission-critical infrastructure. Need it fast? iptrading.com.au delivers across Australia — shop now.

Features

- 48 x 25G SFP28 ports provide high-density server and storage connectivity
- Airflow-out (AFO) design supports standard hot-aisle/cold-aisle data centre layouts
- Redundant DC power supplies ensure continuous operation and eliminate single points of failure
- Redundant fan modules provide cooling resilience for mission-critical environments
- Junos OS delivers consistent, proven network operating system across the QFX portfolio
- Supports EVPN-VXLAN for scalable data centre fabric and overlay networking
- Optimised for spine-leaf architectures in enterprise and cloud data centres
- Base software features included — no additional licensing required to begin deployment

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 48 x 25G SFP28 downlink ports
- High-speed uplink ports (100G QSFP28)
- Airflow direction: Airflow Out (AFO / front-to-back)
- Power supply: Redundant DC PSUs included
- Cooling: Redundant fan modules included
- Ships with base software features
- Platform: Juniper QFX5120 series
- Designed for spine-leaf and data centre fabric deployments

FAQs

Q: What does 'AFO' mean for the QFX5120-48Y-D-AFO2?
A: AFO stands for Airflow Out, also described as front-to-back airflow. This means cool air enters through the port side and exhausts out the rear of the chassis, which is the standard configuration for hot-aisle/cold-aisle data centre setups.

Q: Does this SKU include power supplies and fans?
A: Yes. The QFX5120-48Y-D-AFO2 ships with redundant DC power supplies and redundant fan modules included, making it ready for high-availability deployments out of the box.

Q: What software features are included with this switch?
A: This SKU ships with Juniper's base software features. Advanced features such as EVPN-VXLAN, advanced routing protocols, and analytics may require additional Junos licensing depending on your deployment requirements.

Q: Is the QFX5120 suitable for data centre spine or leaf roles?
A: Yes. The QFX5120 is purpose-built for data centre spine-and-leaf architectures, supporting EVPN-VXLAN overlay networking, BGP, and high-density 25G connectivity for modern cloud and enterprise data centre environments.

Q: Can I purchase the QFX5120-48Y-D-AFO2 in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is a specialist B2B IT hardware reseller delivering Juniper equipment across Australia. Contact us for pricing, availability, and lead times.

Q: What is the difference between DC and AC variants of the QFX5120?
A: The 'D' in this SKU denotes DC (direct current) power input, which is common in telco and data centre environments with centralised DC power plants. AC variants accept standard mains power and are used in typical enterprise data centre deployments.
