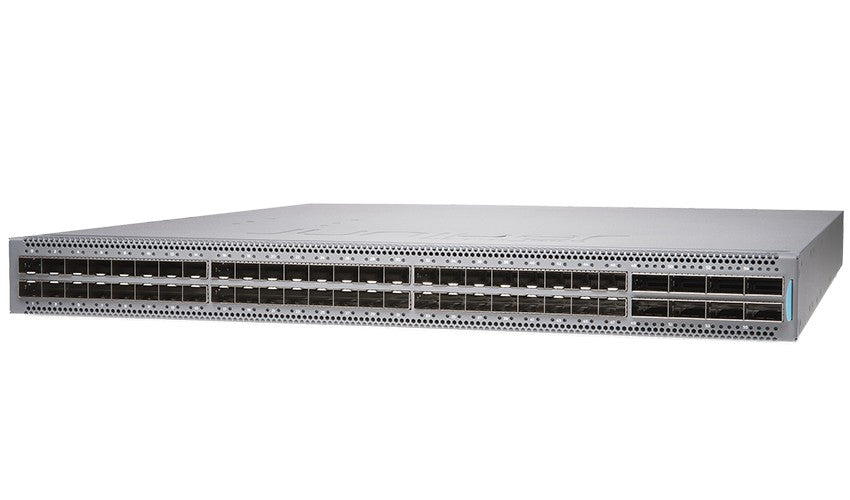

Juniper QFX5120-48Y-AFO2 | QFX5120 48-Port 25GbE Switch, AC, Airflow Out, 8x 100GbE

Authorised Juniper Partner

SKU:QFX5120-48Y-AFO2

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The QFX5120-48Y-AFO2 is a fixed 1U QFX5120 Layer 2/Layer 3 data centre switch with 48 x 1/10/25GbE SFP/SFP+/SFP28 downlink ports and 8 x 40/100GbE QSFP+/QSFP28 uplink ports. This AC-powered AFO2 variant uses front-to-back (airflow out) cooling for hot-aisle deployments, making it a strong fit as a leaf switch in 25GbE server access and EVPN-VXLAN fabrics.

It delivers 4 Tbps (bidirectional) switching capacity and latency as low as 800 ns, and runs Junos OS. Dual redundant, hot-pluggable 650 W AC/DC power supplies and fan modules support resilient operation, while breakout cables can increase 10GbE and 25GbE port density from the 40/100GbE ports.

Features

- Runs Junos OS with a rich Layer 2/Layer 3 feature set
- EVPN-VXLAN support for overlay/underlay data centre fabrics
- Native 25GbE downlinks with 100GbE uplinks
- Breakout cables increase 10GbE/25GbE port density
- Junos Telemetry Interface (JTI) for streaming monitoring data
- Redundant, hot-pluggable power supplies and fan modules
- Airflow-out (front-to-back) option for hot-aisle deployments

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 48 x 1/10/25GbE SFP/SFP+/SFP28 ports
- 8 x 40/100GbE QSFP+/QSFP28 uplink ports
- Switching capacity: 4 Tbps (bidirectional) / 2 Bpps
- Latency as low as 800 ns
- Cut-through and store-and-forward switching modes
- 1U fixed form factor, AC power, airflow out (front-to-back)
- Dual redundant (1+1) hot-pluggable 650 W AC/DC power supplies, 100-240 V single phase AC
- 2.2 GHz quad-core Intel CPU, 16 GB memory, 50 GB SSD
- 2 x RJ-45 management ports
- Power consumption: 272 W max, 247 W typical
- MAC addresses per system: 288,000; VLAN IDs: 4093; jumbo frame: 9216 bytes
- Dimensions (H x W x D): 4.37 x 44.09 x 52.02 cm; weight 10.75 kg
- Operating temperature: 0 to 40 C

FAQs

Q: What does the AFO2 suffix mean on this QFX5120-48Y?
A: This variant has AC power supplies and airflow out (front-to-back) cooling, designed for hot-aisle deployments where the port side faces the cold aisle.

Q: What port types does the QFX5120-48Y support?
A: It has 48 x 1/10/25GbE SFP/SFP+/SFP28 downlink ports and 8 x 40/100GbE QSFP+/QSFP28 uplink ports. The 40GbE ports can be configured as 4 x 10GbE and the 100GbE ports as 4 x 25GbE.

Q: Does this switch support EVPN-VXLAN?
A: Yes. It runs Junos OS and supports EVPN-VXLAN for overlay and underlay data centre fabric designs.

Q: Are the power supplies and fans redundant?
A: Yes. It uses dual redundant (1+1) hot-pluggable 650 W AC/DC power supplies and hot-pluggable fan modules.

Q: What is the switching capacity and latency?
A: The switch provides 4 Tbps (bidirectional) / 2 Bpps switching capacity with latency as low as 800 ns.

Q: Can I increase the number of 10GbE or 25GbE ports?
A: Yes. Using breakout cables on the 40/100GbE ports, the switch can reach up to 80 x 10GbE or 80 x 25GbE ports.
