Arista DCS-7800R3-48CQM-LC | 7800R3 48-Port 100GbE QSFP Line Card, MACsec
Arista DCS-7800R3-48CQM-LC | 7800R3 48-Port 100GbE QSFP Line Card, MACsec
Authorised Arista Partner
SKU:DCS-7800R3-48CQM-LC
Stock Status: Enquire
Couldn't load pickup availability
Description
Description
The 7800R3 48-port 100GbE QSFP line card adds 48 QSFP100 ports to a modular Arista 7800R3 data centre switch router chassis, with MACsec encryption on all ports. It is built for spine, core and data centre interconnect roles where dense 100GbE and deep buffering matter, with 8 GB of port buffer on the card and throughput of 2.4 Tbps (4.8 Tbps full duplex).

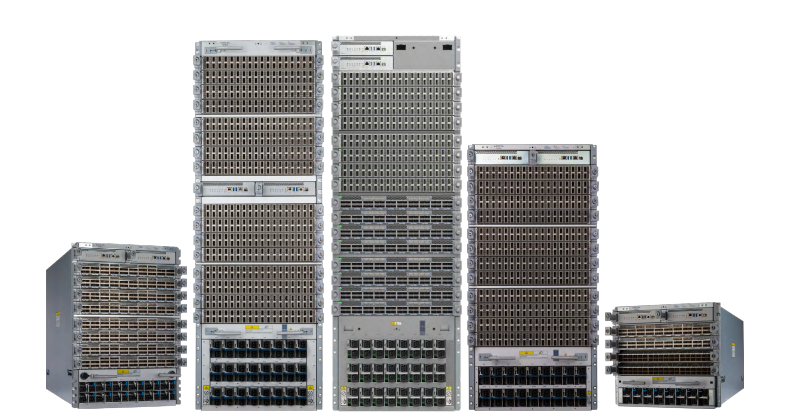

The card is supported in the DCS-7816L, DCS-7816, DCS-7812, DCS-7808 and DCS-7804 chassis. It uses the fully scheduled lossless 7800R3 architecture with a cell-spraying fabric and per-port Virtual Output Queuing, and runs Arista EOS with CloudVision, LANZ, ZTP, sFlow and IEEE 1588 PTP support.
Features
Features
- Fully scheduled lossless architecture with cell-spraying fabric and per-port Virtual Output Queuing
- Under 4 microsecond latency (64 bytes)
- MACsec, IPsec and VXLANsec encryption support in the 7800R3 platform
- Deep packet buffers
- Front-to-rear airflow
- Arista EOS with CloudVision, LANZ, ZTP, sFlow and IEEE 1588 PTP support
- Open programmable APIs (JSON-RPC, NETCONF)
Warranty
Warranty
Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- 48 x QSFP100 ports
- Up to 48 x 100GbE ports
- Up to 48 x 40GbE ports using QSFP+ (no MACsec in 40G mode)
- MACsec encryption on all ports
- Port buffer: 8 GB
- Throughput (FDX): 2.4 Tbps (4.8 Tbps)
- Typical (max) power: 620 W (684 W)
- Weight: 20 lbs (9.1 kg)
- Dimensions (W x H x D): 18.9" x 2.1" x 17.8" (48.1 x 5.4 x 45.2 cm)
- Chassis support: DCS-7816L, DCS-7816, DCS-7812, DCS-7808, DCS-7804
FAQs
Q: Which chassis does the DCS-7800R3-48CQM-LC support?
A: It is supported in the Arista DCS-7816L, DCS-7816, DCS-7812, DCS-7808 and DCS-7804 modular chassis.
Q: Does MACsec work on all ports?
A: Yes, MACsec encryption is available on all 48 ports when they run at 100G. In 40G mode using QSFP+ optics, MACsec is not available.
Q: Can the ports run at 40GbE?
A: Yes. All 48 QSFP100 ports can run at 40GbE using QSFP+ optics, but MACsec is not supported in that mode.
Q: How much packet buffer does the line card have?
A: The card provides 8 GB of port buffer as part of the deep-buffer 7800R3 architecture.
Q: What is the power draw of this line card?
A: Typical power draw is 620 W, with a maximum of 684 W. Size chassis power supplies for the full line card population.
Q: What operating system does it run?
A: The 7800R3 platform runs Arista EOS, supporting CloudVision, LANZ, ZTP, sFlow, IEEE 1588 PTP and open APIs such as JSON-RPC and NETCONF.
