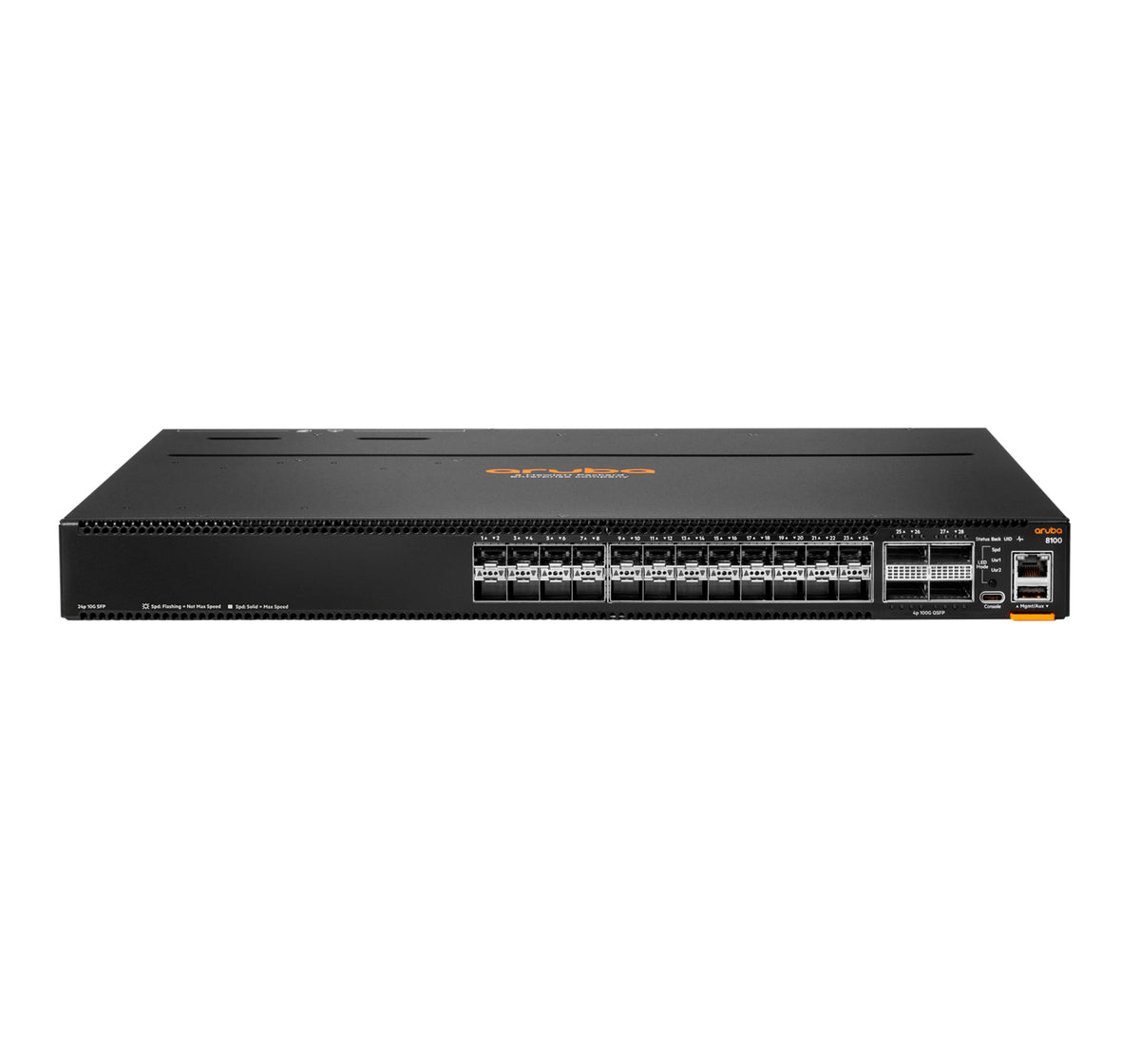

Aruba R9W86A#B2C | CX 8100 24x10G SFP+ 4x100G QSFP28 L3 Switch, FB, 2 AC PSU

Authorised Aruba Partner

SKU:R9W86A#B2C

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Aruba CX 8100 24x10G SFP+ and 4x40/100G QSFP28 Layer 3 managed switch is a 1U campus core, aggregation and data centre top-of-rack platform running AOS-CX. This bundle provides 24 x 1/10GbE SFP/SFP+ ports and 4 x 40/100GbE QSFP+/QSFP28 ports, with front-to-back airflow, three hot-swappable fans and two hot-swappable AC power supplies included.

With 1.28 Tbps of switching capacity, an advanced Layer 2/3 feature set including BGP, OSPF, VRF, VXLAN, EVPN and IPv6, and the Network Analytics Engine included, it suits high-density 10G aggregation and east-west data centre traffic. It can be managed through Aruba Central in the cloud or on-premises, and the rack mount kit is ordered separately.

Features

- Runs AOS-CX, a database-driven operating system, with the Network Analytics Engine (NAE) included at no extra cost
- Advanced Layer 2/3 feature set with BGP, OSPF, VRF, VXLAN, EVPN and IPv6
- Hot-swappable redundant power supplies and fans
- Suited to campus core and aggregation or data centre top-of-rack and end-of-row deployments
- Managed through Aruba Central in the cloud or on-premises
- Dynamic Segmentation, QoS, IP multicast and network security
- Optional term-based CX Advanced Feature Pack

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 24 x 1GbE/10GbE SFP/SFP+ ports
- 4 x 40GbE/100GbE QSFP+/QSFP28 ports
- Switching capacity: 1.28 Tbps / 952 Mpps
- 2 x hot-swappable AC power supplies (2 x JL600A) included
- 3 x hot-swappable fans (3 x JL714A) included
- Front-to-back airflow
- CPU: 1.8 GHz 4-core 64-bit
- Memory and storage: 16GB RAM, 32GB flash
- Packet buffer: 32MB
- MAC address table size: 147,456
- IPv4 unicast routes: 24,576
- IPv6 unicast routes: 12,288
- Maximum VLANs: 1,024
- Management ports: RJ-45 serial and USB-C console, RJ-45 Ethernet, USB Type-A
- Power consumption (230 VAC): 120 W idle, 375 W maximum
- Dimensions (H x W x D): 4.4 cm x 44.25 cm x 40.64 cm, 1U
- Full configuration weight: 8.16 kg
- Operating temperature: 0 to 40 C
- 19-inch EIA rack mounting, rack mount kit ordered separately

FAQs

Q: What ports does the Aruba CX 8100 24x10G SFP+ 4x40/100G QSFP28 switch have?
A: It has 24 x 1GbE/10GbE SFP/SFP+ ports and 4 x 40GbE/100GbE QSFP+/QSFP28 ports, plus RJ-45 serial and USB-C console, an RJ-45 Ethernet management port and a USB Type-A port.

Q: Are the power supplies and fans included?
A: Yes. This bundle includes two hot-swappable AC power supplies (2 x JL600A) and three hot-swappable fans (3 x JL714A), configured for front-to-back airflow.

Q: Is a rack mount kit included?
A: No. The switch is a 1U unit for 19-inch EIA racks with 2-post and 4-post options, and the rack mount kit is ordered separately.

Q: What operating system does it run and how is it managed?
A: It runs AOS-CX with the Network Analytics Engine included at no extra cost. It can be managed through Aruba Central in the cloud or on-premises.

Q: What is the switching capacity?
A: The switch delivers 1.28 Tbps of switching capacity and 952 Mpps of forwarding.

Q: Which Layer 3 features does it support?
A: It supports BGP, OSPF, VRF, VXLAN, EVPN and IPv6, with an optional term-based CX Advanced Feature Pack available.
