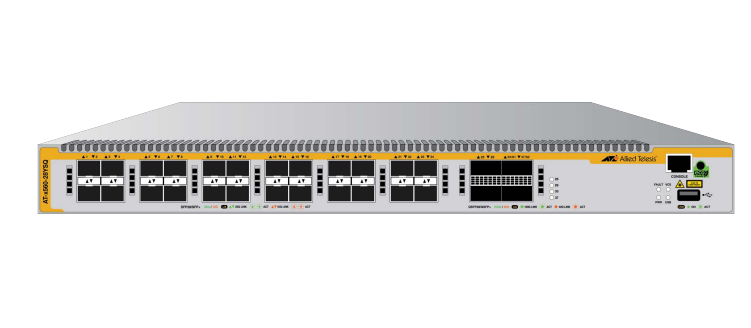

Allied Telesis AT-X560-28YSQ-040 | x560 L3 Stackable Switch, 24x 25G SFP28, 4x 100G QSFP28, Dual PSU

Allied Telesis AT-X560-28YSQ-040 | x560 L3 Stackable Switch, 24x 25G SFP28, 4x 100G QSFP28, Dual PSU

AT-X560-28YSQ-040

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Allied Telesis x560-28YSQ is a 25 Gigabit Layer 3 Stackable Switch designed for bandwidth-intensive enterprise distribution and high-density server connectivity. Featuring 24x SFP28 ports (1/10/25G) and 4x QSFP28 uplink ports (40/100G), it delivers flexible multi-speed access with high-capacity uplinks in a 1U rack-mount form factor. VCStack virtualisation supports stacking up to 4 units in a resilient ring topology, while dual built-in power supplies ensure continuous high availability.

Running AlliedWare Plus™, the x560-28YSQ supports advanced automation via AMF Plus (zero-touch provisioning, auto-backup, auto-recovery), SDN orchestration via OpenFlow v1.3, and network automation through NETCONF/RESTCONF with YANG data modelling. Security is enterprise-grade with MACsec encryption, Active Fiber Monitoring™, and SHA-2 cryptography. This SKU ships with dual fixed PSUs and an AU power cord, ready for immediate deployment. Available now at iptrading.com.au — competitive prices and local support.

Features

- VCStack virtualisation: stack up to 4 units with dual-connection ring topology for resiliency
- Long-distance fibre stacking for distributed enterprise and data centre environments
- Dual built-in PSUs for power redundancy and near-hitless online stack reconfiguration
- EPSRing™, G.8032 Ethernet Ring Protection, and MRP for rapid network failover
- MACsec encryption securing point-to-point Ethernet links against interception
- Active Fiber Monitoring™ (AFM) detects and prevents fibre eavesdropping
- AMF Plus: zero-touch provisioning, auto-backup, auto-upgrade, and auto-recovery
- OpenFlow v1.3 SDN support for centralised network orchestration
- NETCONF/RESTCONF + YANG data modelling for network automation pipelines
- VXLAN tunnelling for scalable overlay network segmentation
- SHA-2 cryptographic security (SHA-224, SHA-256, SHA-384)
- Flexible 1/10/25G access ports with 40/100G uplinks for high-bandwidth applications

Warranty

Allied Telesis provides a structured hardware warranty for products purchased after January 1, 2024, through approved sources such as IP Trading. Warranty terms vary by product class and are valid for purchases made in Australia and other supported regions.
Warranty Coverage Options:
• 2-Year Warranty: Standard coverage for most entry-to-mid-tier Allied Telesis hardware.
• 5-Year Warranty: Applies to selected enterprise-grade models.
• Limited Lifetime Warranty: Offered on eligible products for the operational life of the unit, with support ending five (5) years after the product’s official End-of-Sale (EOS) date.
Extended Warranty Options:
IP Trading offers tailored extended coverage and support solutions for Allied Telesis products. Speak to our team to customise a warranty plan that suits your business requirements.
https://www.alliedtelesis.com/au/en/warranty-july-2024-onwards

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 24 x SFP28 ports — 1G / 10G / 25G multi-speed
- 4 x QSFP28 uplink ports — 40G / 100G
- Layer 3 switching (AlliedWare Plus™ OS)
- VCStack: stack up to 4 units via ring topology
- Dual fixed built-in power supplies (high availability)
- AU power cord included
- OpenFlow v1.3 SDN support
- NETCONF/RESTCONF + YANG data modelling
- VXLAN tunnel support
- MACsec encryption for point-to-point link security
- SHA-2 cryptographic security (SHA-224, SHA-256, SHA-384)
- 1U rack-mount form factor

FAQs

Q: What port speeds are supported on the SFP28 and QSFP28 ports?
A: The 24 SFP28 ports each support 1G, 10G, and 25G speeds, giving flexible connectivity for servers and distribution links. The 4 QSFP28 uplink ports support 40G and 100G, providing high-capacity aggregation and inter-switch connectivity.

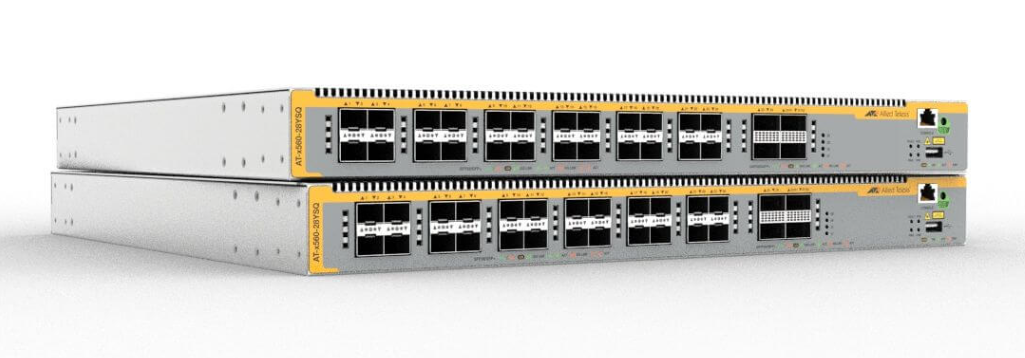

Q: How does VCStack work on the x560-28YSQ?
A: VCStack virtualises up to 4 x560-28YSQ units into a single logical switch. Stacking is supported at any port speed using a dual-connection ring topology for path resiliency. Long-distance stacking over fibre is also supported for distributed campus or data centre deployments.

Q: Why does this SKU (AT-X560-28YSQ-040) include dual fixed PSUs?
A: The -040 variant ships with dual built-in power supplies already installed, providing power redundancy and near-hitless online stack reconfiguration out of the box. This is ideal for mission-critical environments where unplanned downtime is unacceptable.

Q: Does the x560-28YSQ support network automation and SDN?
A: Yes. The switch runs AlliedWare Plus™ and supports OpenFlow v1.3 for SDN orchestration, plus NETCONF/RESTCONF with YANG data modelling for programmatic network automation. AMF Plus provides zero-touch provisioning, centralised management, auto-backup, and auto-recovery.

Q: What security features are included?
A: Security features include MACsec encryption for point-to-point Ethernet link protection, Active Fiber Monitoring™ (AFM) to detect fibre eavesdropping, and SHA-2 cryptographic hashing (SHA-224, SHA-256, SHA-384). Network resilience is further supported by EPSRing™, G.8032, and MRP fast-failover protocols.

Q: Can I purchase the AT-X560-28YSQ-040 in Australia with local support?
A: Yes. iptrading.com.au stocks Allied Telesis networking equipment including the x560 Series for Australian businesses. You'll receive competitive pricing, local after-sales support, and fast dispatch. Contact our team or order directly at iptrading.com.au.
