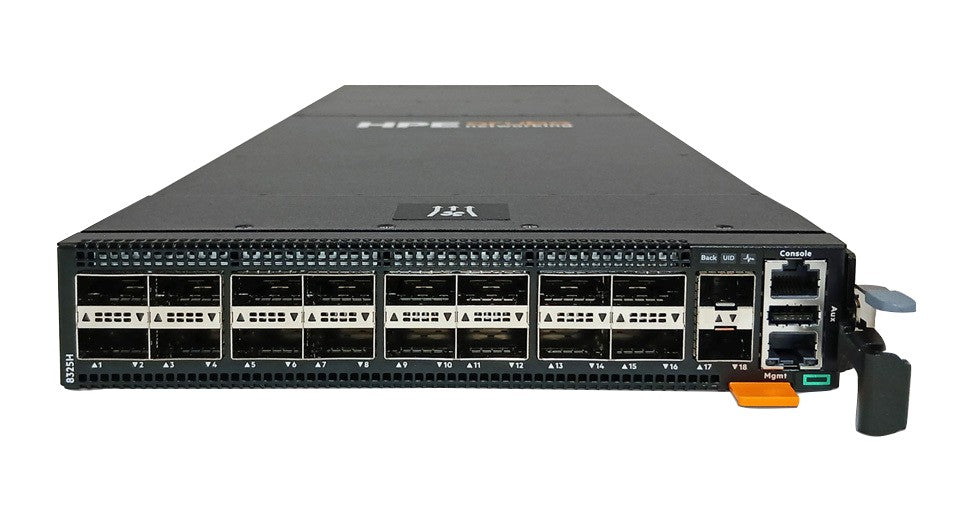

HPE S4Q67A | SN8325H 16-Port 100GbE QSFP28 Switch, P2C Airflow, Half-Width 1U

HPE S4Q67A | SN8325H 16-Port 100GbE QSFP28 Switch, P2C Airflow, Half-Width 1U

S4Q67A

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The HPE SN8325H is a half-width, 1U data centre switch delivering 16 ports of 40/100GbE QSFP28 connectivity with 4 Tbps ASIC switching capacity and Power-to-Connector (P2C) airflow. Powered by the HPE Aruba Networking CX 8325 platform, it is purpose-built for storage fabrics, HCI environments, and high-density server interconnects where low-latency, lossless QoS and flexible port breakout to 4x25GbE or 4x10GbE are essential. Two units can be mounted side-by-side in a single 1U rack space, doubling density without consuming additional rack units.

The SN8325H supports a full Layer 2/3 feature set including BGP, OSPF, VRF-Lite, VXLAN, and IPv6, with 1+1 redundant PSUs and N+1 fan redundancy for non-stop availability. Management is available via HPE Aruba Networking Central (cloud), Fabric Composer, NetConductor, or CLI, with built-in REST APIs and Python scripting for automation. TAA compliant and backed by HPE's limited lifetime warranty. Buy today from iptrading.com.au — fast shipping and expert service across Australia.

Features

- Powered by HPE Aruba Networking CX 8325 platform with CX OS automation and programmability
- Supports 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE connectivity across all QSFP28 ports
- Full breakout support — each port configurable to 4x25GbE or 4x10GbE independently
- Low-latency, lossless QoS optimised for storage and hybrid cloud workloads
- Virtual Switch Exchange (VSX) for seamless high availability during upgrades
- Half-width design — two switches mountable side-by-side in a single 1U rack space for maximum density
- Cloud, on-premises, or CLI management via HPE Aruba Networking Central, Fabric Composer, or NetConductor
- Built-in REST APIs and Python scripting for network automation and DevOps integration
- Network Analytics Engine for intelligent monitoring, visibility, and automated remediation
- 1+1 redundant PSUs and N+1 fan redundancy for continuous availability
- TAA compliant — suitable for government and regulated-industry procurement
- Limited lifetime warranty including built-in fans and power supplies (up to 5 years post end-of-sale)

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 16 x 40/100GbE QSFP28 ports
- ASIC switching capacity: 4 Tbps full-duplex
- Port breakout: each QSFP28 supports 4x25GbE or 4x10GbE (up to 64 ports broken out)
- Airflow: Power-to-Connector (P2C)
- Form factor: Half-width, 1U rack-mountable
- PSU: 2x fixed (1+1 redundancy)
- Fans: 4x fixed (N+1 redundancy)
- Layer 2/3 features: BGP, OSPF, VRF-Lite, IPv6, dynamic VXLAN
- Operating system: HPE Aruba Networking CX OS 10.15.1000
- Two units installable side-by-side in a single 1U rack space
- TAA compliant

FAQs

Q: Can I purchase the HPE SN8325H (S4Q67A) in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware reseller offering the HPE SN8325H with fast shipping and expert pre-sales support across Australia. Contact us for pricing, lead times, and volume quotes.

Q: What airflow direction does the SN8325H support?
A: The SN8325H (S4Q67A) uses Power-to-Connector (P2C) airflow, where air flows from the PSU/fan side to the port side. This is the variant covered by this listing. An alternative Connector-to-Power (C2P) model is available as a separate SKU for hot-aisle/cold-aisle configurations where required.

Q: Can the QSFP28 ports be broken out to lower-speed connections?
A: Yes. Each of the 16 QSFP28 ports supports breakout to 4x25GbE or 4x10GbE, allowing up to 64 logical ports in high-density 25GbE or 10GbE server-edge deployments. All ports can be configured independently with no grouping restrictions.

Q: What environments is the SN8325H best suited for?
A: The SN8325H is designed for data centre storage fabrics, hyper-converged infrastructure (HCI), and high-density server interconnects. Its half-width form factor and lossless QoS support also make it suitable for edge data centres, healthcare, financial services, and media production environments where low-latency connectivity is critical.

Q: How is the SN8325H managed?
A: The SN8325H can be managed via HPE Aruba Networking Central (cloud-based), Fabric Composer, NetConductor, or traditional CLI. It supports automation through built-in REST APIs, Python scripting, and the CX OS Network Analytics Engine for real-time monitoring and remediation.

Q: Does the SN8325H support high-availability and redundancy features?
A: Yes. The switch includes dual redundant PSUs (1+1) and four fans with N+1 redundancy for continuous operation. Virtual Switch Exchange (VSX) support enables high availability during software upgrades and control plane events, making it suitable for mission-critical fabric deployments.
