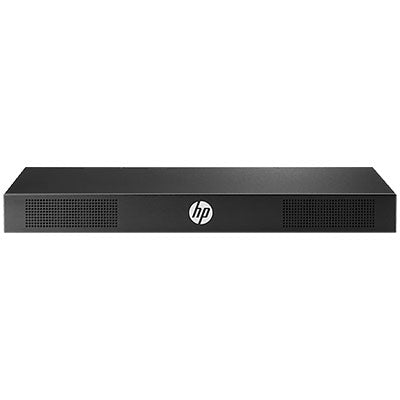

HPE AF652A | 0x2x16 G3 KVM Console Switch, 16-Port, 2 Users, 1U Rack

Authorised HPE Partner

SKU:AF652A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE 0x2x16 G3 KVM console switch is a 16-port analog KVM switch for rack environments, letting up to 2 simultaneous users manage servers from a single interface. With tiering, one deployment can scale to as many as 256 servers, making it a practical choice for data centres and server rooms where consolidating console access saves space and cabling.

It mounts in 1U or in a Zero U side or rear rack position, and supports CAT5 cabling with interface adapters for PS/2, USB and serial (VT100) server connections. An optional USB Remote Access Key adds KVM-over-IP through the on-board web interface, and the front diagnostics connector supports HPE BladeSystem.

Features

- Single user interface to view and manage up to 256 servers
- Local On-Screen Display (OSD) with server name, status, power-up test data and configuration menus
- Optional USB Remote Access Key upgrades to KVM-over-IP via the On-Board Web Interface (OBWI)
- Programmable scanning to sequentially scan servers
- Supports server connections via interface adapters for PS/2, USB and VT100 (serial console)
- HPE BladeSystem support via the front diagnostics connector
- Password protection against unauthorised users
- Supports HPE Location Discovery Services and Power Discovery Services when used with an HPE iPDU and LCD8500 console kit

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 16 server ports
- 2 simultaneous users (maximum)
- Up to 256 servers with tiering
- Maximum video resolution 1280 x 1024
- Input voltage 100 to 240V AC
- Power consumption approx. 20W
- Rack-mountable, 1U (also Zero U mounting)
- Dimensions 43.8 x 16.51 x 4.36 cm
- Weight 2.04 kg
- CAT5 cable support
- Box contents: KVM console switch, rack-mounting hardware kit, DB9-RJ45 adaptor, power cord, power jumper cable, documentation kit

FAQs

Q: How many servers can the HPE 0x2x16 G3 KVM switch manage?
A: It has 16 direct server ports and supports tiering, which allows management of up to 256 servers from a single interface.

Q: How many users can connect at the same time?
A: The 0x2x16 designation means 2 simultaneous users, each able to access a different server.

Q: Does this KVM switch support remote access over IP?
A: Yes, with the optional USB Remote Access Key it upgrades to KVM-over-IP via the on-board web interface (OBWI).

Q: How is it mounted in the rack?
A: It is rack-mountable in 1U, and also supports a Zero U mounting position on the side or rear of the rack. A rack-mounting hardware kit is included.

Q: Which server connection types are supported?
A: It connects to servers over CAT5 cabling using interface adapters for PS/2, USB and VT100 serial console connections.

Q: Can it be used with HPE BladeSystem?
A: Yes, HPE BladeSystem is supported via the front diagnostics connector.
