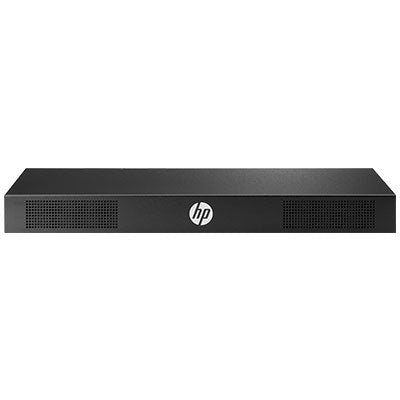

HPE AF651A | G3 8-Port Analog KVM Console Switch, 0x1x8, 1U

Authorised HPE Partner

SKU:AF651A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE AF651A is an 8-port G3 analog KVM console switch (0x1x8 configuration) that lets you manage up to 8 rackmount servers from a single console through an on-screen display. It suits server rooms and data centre racks where you need centralised keyboard, video and mouse access without dedicating a console to every server.

Tiering through the RJ-45 port allows expansion to additional servers, up to 256 across the data centre from one interface. The switch can be upgraded to KVM-over-IP with an optional USB Remote Access Key, and supports HPE Power Discovery Services and Location Discovery Services when connected to a compatible PDU and KVM rack console. It shares 1U of rack front-panel space with the rack console or mounts in a zero-U profile on the side rails.

Features

- On-Screen Display (OSD) interface for selecting attached servers, accessed through a rack console such as the HP LCD8500
- Optional USB Remote Access Key upgrades to KVM-over-IP with remote access via the On-Board Web Interface (OBWI)
- Supports HPE Power Discovery Services and Location Discovery Services when connected to a compatible PDU and KVM rack console
- Tiering allows managing up to 256 servers across the data centre from one interface
- Zero-U mounting option

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 server ports (0x1x8 configuration)
- Dual console ports (A and B) with video and USB connections
- RJ-45 tiering port for expanding to additional servers
- LAN port and DIAG port
- Shares 1U (1.75 inch) of rack front-panel space with the rack console, or mounts in a zero-U profile on the side rails
- Weight approx. 4.6 lbs (2.1 kg)
- Included in box: rack-mount hardware kit, DB9-RJ45 adaptor, US power cord, worldwide power jumper cable, documentation kit

FAQs

Q: How many servers can the HPE AF651A manage?
A: It has 8 server ports in a 0x1x8 configuration, so it manages up to 8 servers directly. Tiering through the RJ-45 port allows expansion to additional servers, up to 256 across the data centre.

Q: Can the AF651A be upgraded to KVM-over-IP?
A: Yes. Adding the optional USB Remote Access Key upgrades the switch to KVM-over-IP, with remote access via the On-Board Web Interface (OBWI).

Q: Does it include a console or monitor?
A: No. It is a console switch that connects to a rack console such as the HP LCD8500, and servers are selected through the on-screen display.

Q: How is the switch mounted in the rack?
A: It shares 1U (1.75 inch) of rack front-panel space with the rack console, or it can be mounted in a zero-U profile on the side rails. A rack-mount hardware kit is included.

Q: What is included in the box?
A: The box includes the rack-mount hardware kit, a DB9-RJ45 adaptor, a power cord, a worldwide power jumper cable and a documentation kit.

Q: Does it work with HPE power and location discovery?
A: Yes. It supports HPE Power Discovery Services and Location Discovery Services when connected to a compatible PDU and KVM rack console.
