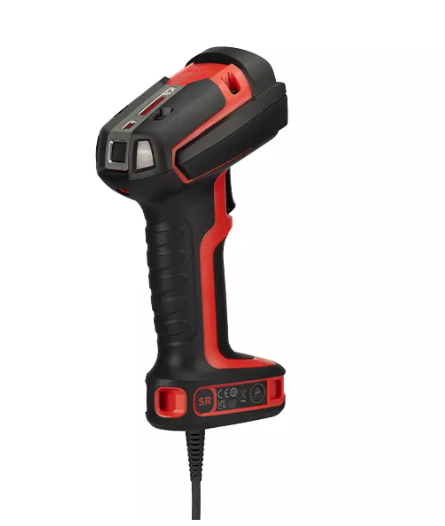

Honeywell 2100ISR-3USBR | Granit Ultra 2100i SR 2D Barcode Scanner, USB Kit, Red

Name: Honeywell 2100ISR-3USBR | Granit Ultra 2100i SR 2D Barcode Scanner, USB Kit, Red
Brand: Honeywell
SKU: 2100ISR-3USBR
Price: 1400.36 AUD
Availability: BackOrder

Authorised Honeywell Partner

SKU:2100ISR-3USBR

Stock Status: Enquire

$1,400.36 inc. GST

$1,273.05 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Granit Ultra 2100iSR is an ultra-rugged corded 2D area-imaging barcode scanner built for warehouse, distribution and manufacturing environments. This Standard Range (SR) model reads 1D and 2D codes from contact out to arm's length, and is sealed to IP65 and IP68 so it keeps scanning in dust, water and harsh handling.

This SKU is the USB kit in red with a vibration indicator alongside the adjustable beeper and good decode LEDs. It survives 3 m drops and 7,500 x 1 m tumbles, operates from -30°C to 50°C, and supports USB 2.0, RS-232 TTL and Keyboard Wedge host interfaces through the appropriate cable. The Honeywell Scanner Management Utility simplifies deployment and updates across a fleet of devices.

Features

- Ultra-rugged design with recessed, scratch- and impact-resistant scan window
- Around 45% faster scanning than Granit XP through high speed processing and AI decoding enhancements
- SR model suited to near-field 1D and 2D scanning from contact to arm's length
- Vibration, beeper and LED feedback for noisy and busy work areas
- Honeywell Scanner Management Utility (SMU) for automated deployment and updates
- Multi-code reading with Data Format Editor for ordered output
- Cables rated for 500K flex cycles, with deep-freezer versions tested at -30°C
- Quick custom configuration by scanning a barcode

Warranty

Honeywell provides a 1-year limited warranty on its mobile computers and barcode scanners, including popular models such as the CT60 XP, CT40 XP, and 8680i. This warranty covers defects in materials and workmanship under normal use and service conditions.

Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for Honeywell mobile computers and barcode scanners, ensuring your technology investments remain protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Standard Range (SR) 2D area imager, 1280 x 1080 pixel array
- Corded, USB 2.0 host interface (RS-232 TTL and Keyboard Wedge via cable)
- IP65 and IP68 environmental sealing
- 3 m (10 ft) drop survivability, 7,500 x 1 m tumbles
- Operating temperature -30°C to 50°C, storage -40°C to 70°C
- Reads 1D, PDF, 2D, Postal, Digimarc, DOT Code and OCR symbologies
- Dimensions 194.8 mm x 75.8 mm x 139.5 mm, weight 330 g (corded)
- Operating power 2.15 W (USB 2.0, corded), input 4.4 to 5.5 VDC
- White 2700K LED illumination with green 525 nm LED aimer
- Motion tolerance up to 4 m/s, print contrast as low as 15%
- Minimum element resolution 2.5 mil 1D, 5 mil 2D
- User indicators: good decode LEDs, adjustable beeper and adjustable vibration
- Three year factory warranty

FAQs

Q: What host interfaces does the 2100iSR USB kit support?
A: This kit is supplied for USB 2.0 host connection. The scanner also supports RS-232 TTL and Keyboard Wedge interfaces using the appropriate cable.

Q: What does Standard Range (SR) mean for scanning distance?
A: The SR model reads from contact to arm's length. Typical performance includes 13 mil UPC from 0 to 634 mm and 20 mil Code 128 from 0 to 1033 mm.

Q: How rugged is this scanner?
A: It is sealed to IP65 and IP68, survives 3 m (10 ft) drops to concrete and 7,500 x 1 m tumbles, and operates from -30°C to 50°C, making it suited to freezers and outdoor docks.

Q: Which barcode types can it read?
A: It reads standard 1D, PDF, 2D, Postal, Digimarc, DOT Code and OCR symbologies, including 2.5 mil 1D and 5 mil 2D codes.

Q: How do I deploy and update multiple scanners?
A: Use the Honeywell Scanner Management Utility (SMU) to automate deployment, configuration and firmware updates, or configure individual units by scanning a barcode.

Q: How does the 2100iSR differ from other Granit Ultra 2100i variants?
A: This SKU is the Standard Range (SR) model in red with a USB kit and vibration indicator. Other variants differ in scanning range, interface kit and colour.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
