Honeywell

Honeywell 1470G2D-2USB-1-R | Voyager XP 1470g 2D Barcode Scanner, USB-A Kit, Black, Stand

Honeywell 1470G2D-2USB-1-R | Voyager XP 1470g 2D Barcode Scanner, USB-A Kit, Black, Stand

Authorised Honeywell Partner

SKU:1470G2D-2USB-1-R

$153.70 inc. GST
$139.73 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock:50

Description

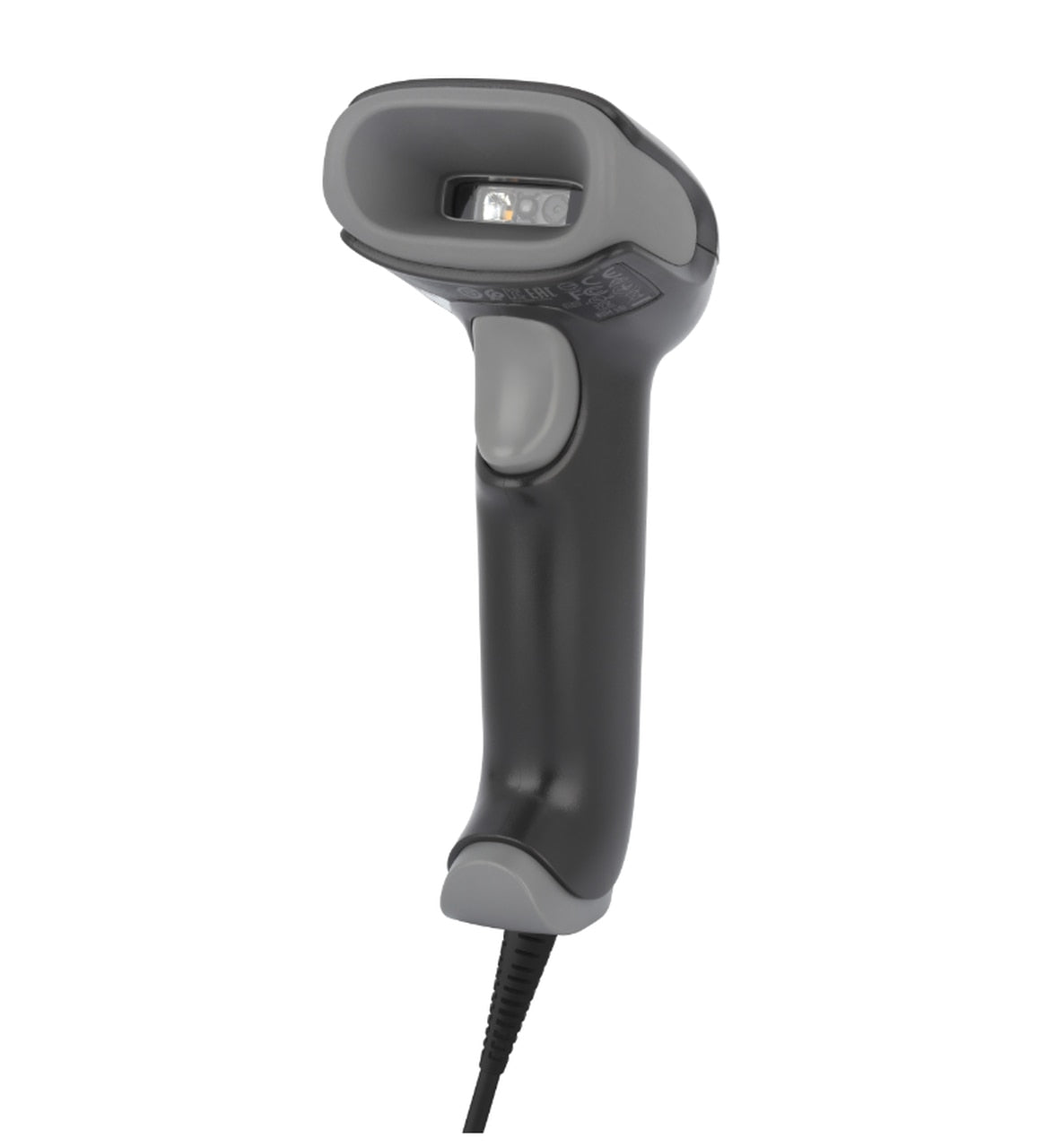

The Voyager XP 1470g USB kit is a corded 2D area-imaging handheld barcode scanner built for in-store retail checkout. Its 1040 x 720 pixel imager runs at 60 FPS and reads damaged and poor-quality 1D and 2D barcodes, as well as codes displayed on smartphone screens. This kit is the black scanner supplied with a flexible presentation stand and a 1.5 m straight USB Type A cable.

The scanner decodes 1D, 2D, PDF417, DotCode and Digimarc digital watermarks, with OCR support and an extended scan distance that reaches the bottom of the cart without bending. It is rated IP52, withstands 30 drops from 1.8 m and 1,000 tumbles from 0.5 m, supports up to 84 international keyboards and is backward-compatible with previous Voyager accessories.

Features

- Fast, accurate scanning of damaged and poor-quality barcodes
- Extended scan distance reaches the bottom of the cart without bending
- Reads digital coupons, codes and wallets on smartphone screens
- Durable construction withstands 30 drops at 1.8 m and 1,000 tumbles at 0.5 m
- Supports up to 84 international keyboards and a variety of POS systems
- Backward-compatible with previous Voyager accessories
- Configuration and management tools: EZConfig, SMU, Total Freedom, Scanner Edge and SDKs

Warranty

Honeywell provides a 1-year limited warranty on its mobile computers and barcode scanners, including popular models such as the CT60 XP, CT40 XP, and 8680i. This warranty covers defects in materials and workmanship under normal use and service conditions.

Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for Honeywell mobile computers and barcode scanners, ensuring your technology investments remain protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- 2D area imager, 1040 x 720 pixel array, 60 FPS
- Reads 1D, 2D, PDF417, DotCode and Digimarc digital watermarks
- USB-A interface with 1.5 m straight cable
- Kit includes flexible presentation stand, black housing
- Decode range for 13 mil UPC: 18 mm to 400 mm
- Decode range for 20 mil QR: 5 mm to 325 mm
- Motion tolerance: 70 cm/s for 13 mil UPC at optimal focus
- Environmental sealing: IP52
- Drop rating: 30 drops to concrete from 1.8 m
- Tumble rating: 1,000 tumbles from 0.5 m
- Illumination: warm white LED, aimer: red dot LED
- Input voltage: 4.0V to 5.5V DC, operating power 2 W
- Dimensions: 82 x 62 x 169 mm, weight 130 g
- Operating temperature: 0°C to 50°C

FAQs

Q: What is included in the 1470G2D-2USB-1-R kit?
A: The kit includes the black Voyager XP 1470g 2D scanner, a flexible presentation stand and a 1.5 m straight USB Type A cable.

Q: Can it read barcodes on a phone screen?
A: Yes. The 2D area imager reads digital coupons, codes and wallets displayed on smartphone screens as well as printed barcodes.

Q: Which barcode types does it decode?
A: It decodes 1D symbologies such as Code 39, Code 128, EAN and UPC, 2D codes such as Aztec, Data Matrix and QR, plus PDF417, DotCode and Digimarc digital watermarks.

Q: How rugged is the Voyager XP 1470g?
A: It is rated IP52 and engineered to withstand 30 drops to concrete from 1.8 m and 1,000 tumbles from 0.5 m.

Q: Does this SKU connect over USB or other interfaces?
A: This kit ships with a USB Type A cable for USB connection. The scanner platform also supports keyboard wedge and RS-232 with the appropriate cable.

Q: Is it compatible with older Voyager accessories?
A: Yes. The Voyager XP 1470g is backward-compatible with previous Voyager accessories.
