Honeywell 3320G-4 | Vuquest 3320g 2D Barcode Scanner, Ivory, Scanner Only

Name: Honeywell 3320G-4 | Vuquest 3320g 2D Barcode Scanner, Ivory, Scanner Only
Brand: Honeywell
SKU: 3320G-4
Price: 736.23 AUD
Availability: BackOrder

Authorised Honeywell Partner

SKU:3320G-4

Stock Status: Enquire

$736.23 inc. GST

$669.30 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

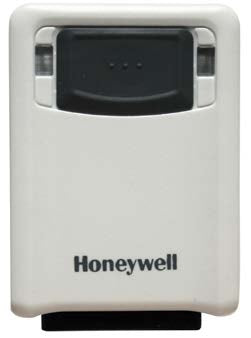

The Honeywell Vuquest 3320g is a compact, corded hands-free 2D area-imaging barcode scanner built for retail counters and point-of-sale presentation scanning. This 3320G-4 is the scanner-only unit in Ivory with extended range focus, supplied without cables. Powered by Adaptus Imaging Technology 6.0, it reads 1D, PDF417 and 2D barcodes, including codes displayed on reflective surfaces such as mobile phone screens.

The Vuquest 3320g supports USB, RS-232 and Keyboard Wedge host interfaces using a separately sourced cable with a 15-pin D-Sub termination. Its lightweight 77 g body is rated IP53 and withstands 1.5 m drops, making it suited to busy checkout environments. A thumb-activated button and clearly visible indicator LEDs keep operation simple for staff.

Features

- Adaptus Imaging Technology 6.0 for superior barcode scanning and image capture
- Aggressive reading of barcodes on highly reflective surfaces such as mobile phone screens
- Ergonomic thumb-activated button and clearly visible indicator LEDs
- Compact, lightweight, durable design suited to retail counters
- Hands-free presentation scanning

Warranty

Honeywell provides a 1-year limited warranty on its mobile computers and barcode scanners, including popular models such as the CT60 XP, CT40 XP, and 8680i. This warranty covers defects in materials and workmanship under normal use and service conditions.

Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for Honeywell mobile computers and barcode scanners, ensuring your technology investments remain protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2D area imager (Adaptus Imaging Technology 6.0)
- Reads 1D, PDF417, 2D, OCR and postal codes
- Host interfaces: USB, RS-232, Keyboard Wedge (cable sold separately)
- Termination: 15-pin D-Sub connector
- Dimensions: 73 x 51 x 26 mm
- Weight: 77 g
- Input voltage: 5VDC ±0.25V
- Operating power: 2.3W (450mA @ 5V); standby 0.45W (90mA @ 5V)
- Operating temperature: -20°C to 50°C
- Storage temperature: -20°C to 70°C
- Humidity: 5% to 95% non-condensing
- Drop: withstands 1.5 m
- Environmental sealing: IP53
- Light levels: 0 to 100,000 lux
- Colour: Ivory
- Variant: Scanner only, no cables, extended range focus

FAQs

Q: Does the 3320G-4 include a cable?
A: No. The 3320G-4 is the scanner-only unit supplied without cables. You will need a compatible cable for your chosen host interface.

Q: Which host interfaces does the Vuquest 3320g support?
A: It supports USB, RS-232 and Keyboard Wedge interfaces, selected by the cable you connect to its 15-pin D-Sub termination.

Q: Can it read barcodes on mobile phone screens?
A: Yes. Adaptus Imaging Technology 6.0 is designed to read barcodes on highly reflective surfaces such as mobile phone displays.

Q: What barcode types can it read?
A: It reads 1D, PDF417 and 2D barcodes, as well as OCR and postal codes.

Q: How rugged is the Vuquest 3320g?
A: It is IP53 rated, withstands 1.5 m drops, and operates from -20°C to 50°C at up to 95% non-condensing humidity.

Q: Is this a battery charger?
A: No. The 3320G-4 is a corded hands-free 2D barcode scanner powered at 5VDC through the host connection.
