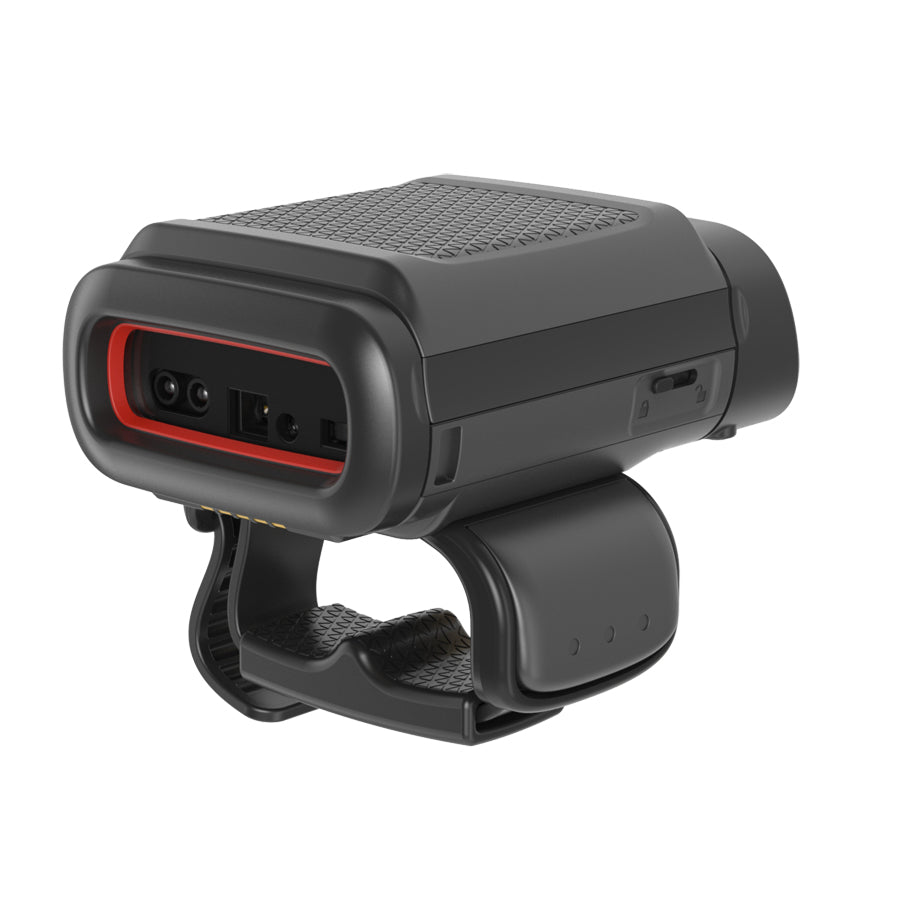

Honeywell 8680I100-2 | 8680i Wearable 1D/2D Barcode Scanner, Bluetooth, No Battery

Honeywell 8680I100-2 | 8680i Wearable 1D/2D Barcode Scanner, Bluetooth, No Battery

Authorised Honeywell Partner

SKU:8680I100-2

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Honeywell 8680i wearable 1D/2D barcode scanner is a compact, ergonomic ring-style imager worn on one hand, built for high-volume picking, sorting, putaway and packing workflows. This Standard Bluetooth version is the scanner module only, supplied without battery or charger, and features a 1D/2D omni-directional area imager with standard range scanning out to 1 m and motion tolerance up to 584 cm per second.

Bluetooth v4.1 Class 1 connectivity with NFC makes pairing simple, while contact charging keeps the unit cordless. A slim or extended battery (BAT-SCN03 or BAT-SCN02) and wearable attachments are required for use and are selected separately. The rugged IP54 build is rated for 30 drops from 1.5 m, and Honeywell Connected Workflow Analytics supports battery lifecycle management and simple deployment of settings and firmware updates.

Features

- Ergonomic, lightweight design that leaves hands free to handle packages
- Rugged build for industrial environments
- Customisable to the application with ring or glove form factor and slim or extended battery
- Honeywell Connected Workflow Analytics for battery lifecycle management and simple deployment of settings and firmware updates
- Standard version for scanning only, the Advanced version adds Wi-Fi, a display and an SDK

Warranty

Honeywell provides a 1-year limited warranty on its mobile computers and barcode scanners, including popular models such as the CT60 XP, CT40 XP, and 8680i. This warranty covers defects in materials and workmanship under normal use and service conditions.

Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for Honeywell mobile computers and barcode scanners, ensuring your technology investments remain protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Standard version: 1D/2D omni-directional area imager
- Standard range (SR) scanning, 0-1 m scan distance
- Motion tolerance up to 584 cm (230 in) per second
- Bluetooth v4.1, Class 1, with NFC for simplified pairing
- Contact charging (cordless)
- Battery (sold separately): slim 3.6 V 1200 mAh (BAT-SCN03) or extended 2160 mAh (BAT-SCN02)
- Scans per charge: about 3,000 over an 8-hour shift (slim battery), 8,000 (extended battery)
- Dimensions: 81 x 56 x 31.3 mm (slim battery) or 81 x 56 x 35 mm (extended battery)
- Weight: 151 g (triggered ring with slim battery), 168 g (with extended battery)
- Operating temperature -20 to 50 °C, storage -20 to 60 °C, humidity 0-95%
- Rated for 30 drops from 1.5 m and 2,000 tumbles from 0.5 m, IP54 sealing

FAQs

Q: Does the 8680I100-2 include a battery and charger?
A: No. This SKU is the scanner module only. A battery (slim BAT-SCN03 or extended BAT-SCN02), charger and wearable attachments are sold separately and are required for use.

Q: What barcode types can the 8680i Standard scan?
A: It uses a 1D/2D omni-directional area imager, so it reads both linear and 2D barcodes at standard range from 0 to 1 m.

Q: How does the scanner connect to a host device?
A: It connects over Bluetooth v4.1 Class 1, and NFC is included for simplified pairing.

Q: How many scans can I expect per battery charge?
A: About 3,000 scans over an 8-hour shift with the slim battery, and up to 8,000 scans with the extended battery.

Q: How is the Standard version different from the Advanced version?
A: The Standard version is for scanning only over Bluetooth. The Advanced version adds Wi-Fi, a display and an SDK.

Q: Is the 8680i suited to rugged warehouse use?
A: Yes. It is rated for 30 drops from 1.5 m and 2,000 tumbles from 0.5 m, with IP54 sealing and an operating range of -20 to 50 °C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
