Honeywell 7680GSR-2USB-1-A | Genesis XP 7680g 1D/2D Barcode Scanner, USB Kit, SR Focus

Name: Honeywell 7680GSR-2USB-1-A | Genesis XP 7680g 1D/2D Barcode Scanner, USB Kit, SR Focus
Brand: Honeywell
SKU: 7680GSR-2USB-1-A
Price: 250.47 AUD
Availability: BackOrder

Authorised Honeywell Partner

SKU:7680GSR-2USB-1-A

Stock Status: Enquire

$250.47 inc. GST

$227.70 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

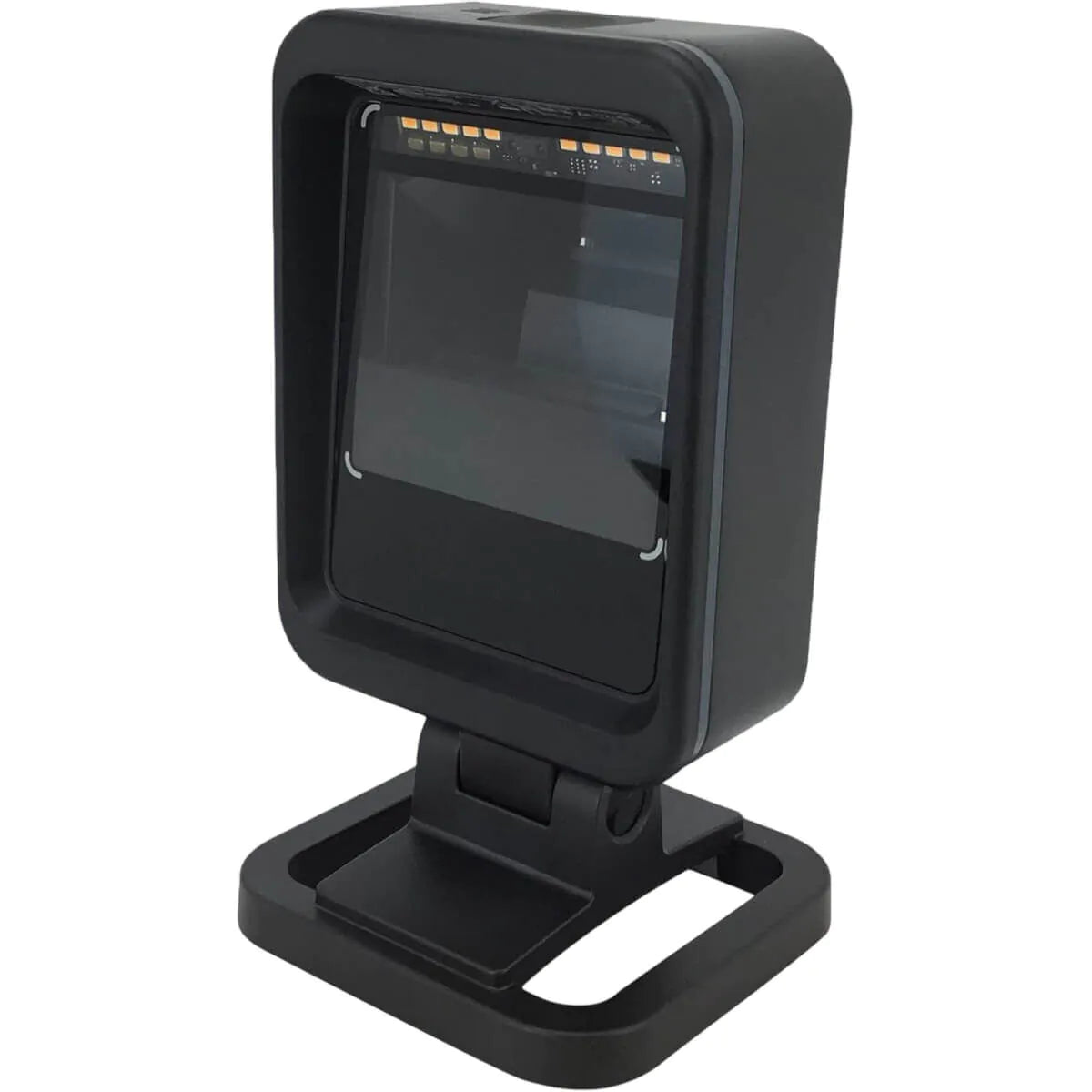

The Genesis XP 7680g USB kit is a hands-free 1D/2D area-imaging presentation barcode scanner with standard range (SR) focus, built for retail point-of-sale and healthcare checkout counters. Its 1 MP area imager reads 1D, PDF417, 2D, DotCode and Digimarc codes from 0 to 1 m, with 400 cm/s motion tolerance on 13 mil UPC for fast, effortless presentation scanning. This SKU is the black, corded kit supplied for USB host connection.

A 360-degree tri-colour LED ring marks the scan area and gives clear user feedback, while warm white illumination switches off between scans through automatic object detection. The removable, adjustable compact stand and disinfectant-ready housing suit busy counters, and an auxiliary expansion port supports future smart accessories. Optional wall-mount, POS-mount and downward-facing placement accessories allow flexible deployment.

Features

- Scanning is 20% faster, over a larger scan area, than previous Honeywell presentation scanners
- 360-degree tri-colour LED ring marks the scan area and gives user feedback
- Warm white illumination switches off between scans through automatic object detection
- Removable, adjustable compact stand with angled cable attachment
- Auxiliary expansion port for future smart accessories
- Optional wall-mount, POS-mount and downward-facing placement accessories
- Disinfectant-ready housing for retail and healthcare settings
- Reads 1D, 2D, PDF417, DotCode and Digimarc barcodes

Warranty

Honeywell provides a 1-year limited warranty on its mobile computers and barcode scanners, including popular models such as the CT60 XP, CT40 XP, and 8680i. This warranty covers defects in materials and workmanship under normal use and service conditions.

Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for Honeywell mobile computers and barcode scanners, ensuring your technology investments remain protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Type: hands-free presentation barcode scanner, corded
- Imager: 1D/2D area imager, 1,280 x 800 pixel (1 MP)
- Focus: Standard Range (SR), 0 to 1 m scan distance
- Decodes: 1D, PDF417, 2D, DotCode and Digimarc (depends on kit configuration)
- Motion tolerance: 400 cm/s (158 in/s) for 13 mil UPC at optimal focus
- Print contrast: 20% minimum reflectance difference
- Pitch: 65 degrees, Skew: 65 degrees
- Maximum ambient light: 100,000 lux
- Host interfaces: USB, RS-232, Keyboard Wedge, IBM 46xx (RS-485)
- Input voltage: 5.0V DC typical
- Dimensions (L x W x H): 80 x 40 x 105 mm without stand, 80 x 40 x 145 mm with stand
- Weight: 340 g (12 oz)
- Colour: black
- IP rating: IP52
- Drop resistance: 50 drops from 1.5 m
- Operating temperature: 0 to 50 C (32 to 122 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Operating humidity: 0% to 95% relative humidity, non-condensing

FAQs

Q: Which barcode types does the 7680GSR-2USB-1-A read?
A: It is a 1D/2D area imager that decodes standard 1D symbologies, 2D codes, PDF417, DotCode and Digimarc, depending on the kit configuration.

Q: What does SR focus mean?
A: SR stands for Standard Range focus, which covers a scan distance of 0 to 1 m. This suits counter-top presentation scanning at point of sale.

Q: Which host interfaces does the Genesis XP 7680g support?
A: The 7680g platform supports USB, RS-232, Keyboard Wedge and IBM 46xx (RS-485) host interfaces. This SKU is the black kit supplied for USB host connection.

Q: Can it be mounted on a wall or used without the stand?
A: Yes. The stand is removable and adjustable, and optional wall-mount, POS-mount and downward-facing placement accessories are available for other layouts.

Q: Is the housing suitable for healthcare or hygiene-sensitive environments?
A: The housing is disinfectant-ready, which suits retail and healthcare settings where scanners are cleaned frequently. It carries an IP52 rating.

Q: Is this scanner wireless?
A: No. The 7680GSR-2USB-1-A is a corded presentation scanner with no battery, powered at 5V DC over its host connection.
