Honeywell 1960HHD-5USB-R | Xenon Ultra 1960h Healthcare Barcode Scanner, 1D/2D, HD, White, USB

Name: Honeywell 1960HHD-5USB-R | Xenon Ultra 1960h Healthcare Barcode Scanner, 1D/2D, HD, White, USB
Brand: Honeywell
SKU: 1960HHD-5USB-R
Price: 621.12 AUD
Availability: InStock

Authorised Honeywell Partner

SKU:1960HHD-5USB-R

In stock:46

$621.12 inc. GST

$564.65 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

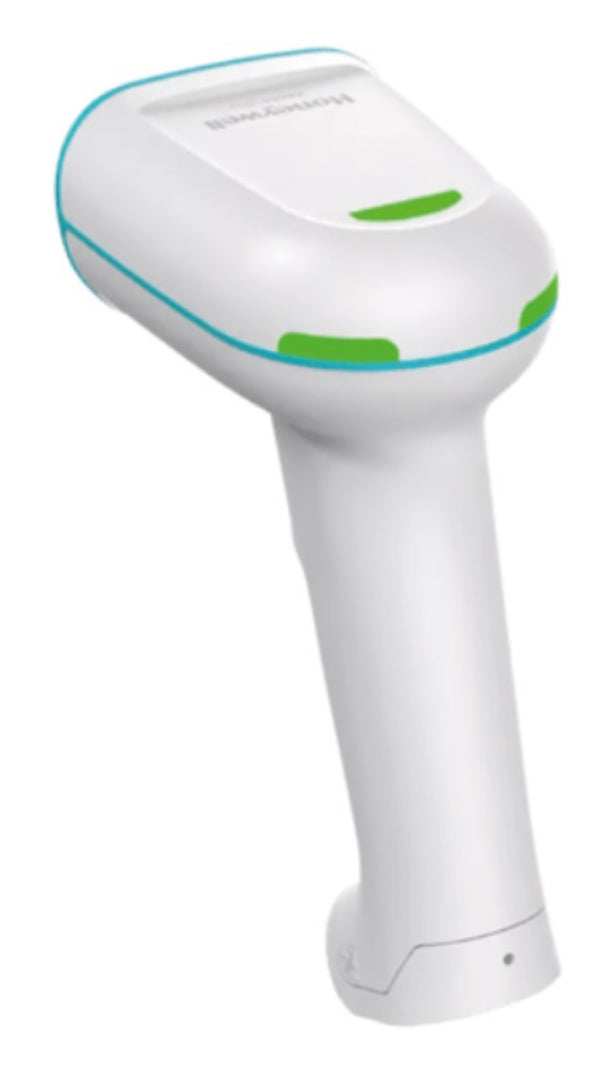

The Xenon Ultra 1960h is a corded 1D/2D area-imaging handheld barcode scanner built for healthcare environments. This USB kit variant features High Density (HD) focus for reading small or poorly printed barcodes, a white anti-microbial, disinfectant-ready housing, vibration feedback and a 3 m straight USB cable.

The design has fewer nooks and crannies to reduce germ accumulation and withstands regular cleaning with a wide variety of cleaning solutions. Patient-friendly operating modes include Patient Do-Not-Disturb, Vibration and Scan Lamp, and the cable is compatible with an existing Xenon XP 1950h deployment. Honeywell Scanner Management Utility (SMU) supports automated deployment and updates.

Features

- Improved design with fewer nooks and crannies to reduce germ accumulation
- Anti-microbial, disinfectant-ready housing that withstands regular cleaning with a wide variety of cleaning solutions
- Green-dot aimer to improve targeting and scan accuracy
- Multiple operating modes for patient comfort, including Patient Do-Not-Disturb, Vibration and Scan Lamp
- Cable compatible with an existing Xenon XP 1950h deployment
- Honeywell Scanner Management Utility (SMU) for automated deployment and updates

Warranty

Honeywell provides a 1-year limited warranty on its mobile computers and barcode scanners, including popular models such as the CT60 XP, CT40 XP, and 8680i. This warranty covers defects in materials and workmanship under normal use and service conditions.

Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for Honeywell mobile computers and barcode scanners, ensuring your technology investments remain protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1D/2D area imager with High Density (HD) focus
- 1280 x 1080 pixel array image sensor
- USB host interface (Keyboard Wedge and RS-232 supported with the appropriate cable)
- Anti-microbial, disinfectant-ready white housing
- IP52 environmental sealing
- 3.0 m (10 ft) mil spec drop
- Green LED aimer (525 nm), white 2700K illumination
- Imager field of view: 42 deg horizontal, 36 deg vertical
- Print contrast as low as 15%
- Minimum element (HD): 2 mil (1D) / 4 mil (2D)
- Decode range HD, 13 mil UPC: 0 mm - 502 mm
- User indicators: Good Decode LEDs, Rear View LEDs, adjustable beeper, vibration
- Dimensions (H x W x D): 108.2 x 70.4 x 160.2 mm
- Weight: 147.2 g
- Operating temperature: 0 to 50 C
- 5-year factory warranty

FAQs

Q: What does the High Density (HD) focus option do?
A: HD focus optimises the imager for small or poorly printed barcodes, with a minimum element size of 2 mil for 1D and 4 mil for 2D codes.

Q: What is included in this USB kit?
A: This kit includes the scanner and a 3 m straight USB cable.

Q: Can it be disinfected regularly in a clinical setting?
A: Yes. The white anti-microbial housing is disinfectant-ready and withstands regular cleaning with a wide variety of cleaning solutions.

Q: Which host interfaces are supported?
A: This kit connects via USB. The scanner also supports Keyboard Wedge and RS-232 with the appropriate cable.

Q: Can it read both 1D and 2D barcodes?
A: Yes. It is a 1D/2D area imager that decodes standard 1D, PDF, 2D, postal, Digimarc, DOT Code and OCR symbologies, depending on configuration.

Q: Is the cable compatible with an existing Xenon XP 1950h deployment?
A: Yes. The cable is compatible with an existing Xenon XP 1950h deployment.
