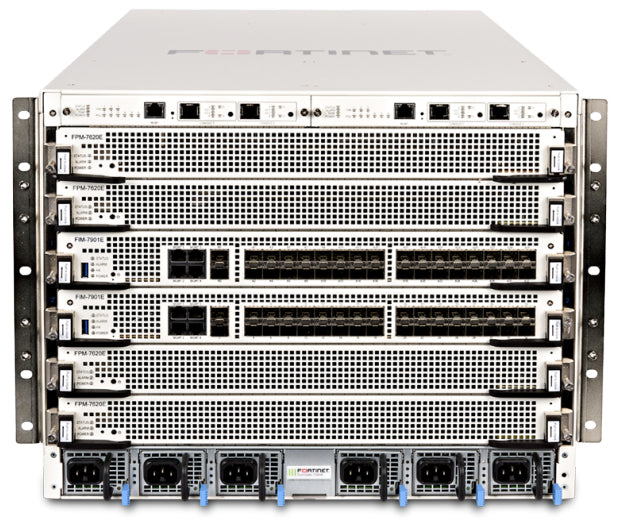

Fortinet FG-7060E-9-DC | 7060E-9 8U 6-Slot Chassis Next-Gen Firewall, 630 Gbps, DC PSU

Fortinet FG-7060E-9-DC | 7060E-9 8U 6-Slot Chassis Next-Gen Firewall, 630 Gbps, DC PSU

FG-7060E-9-DC

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The FortiGate 7060E-9-DC is a high-throughput enterprise chassis firewall delivering 630 Gbps of firewall throughput in an 8U, 6-slot form factor designed for large enterprise and data centre security deployments. This DC-powered configuration ships with 2x FPM-7630E Processor Modules, 2x FIM-79xxE-C interface modules (specified at purchase), and 2x Manager Modules, providing a fully redundant, scalable network security platform capable of handling the most demanding traffic environments.

Built for maximum availability, the 7060E-9-DC includes 4x hot-swappable redundant DC-DC power supply units, ensuring continuous operation in critical infrastructure environments. The modular chassis architecture allows flexible interface expansion while the FortiOS platform delivers comprehensive next-generation firewall capabilities including IPS, application control, SSL inspection, and threat intelligence. Buy today from iptrading.com.au — fast shipping and expert service across Australia.

Features

- 630 Gbps firewall throughput for high-density enterprise and data centre traffic
- 8U 6-slot modular chassis supporting flexible interface and processor module configurations
- 2x FPM-7630E Processor Modules for distributed, high-performance traffic processing
- FIM-79xxE-C Interface Modules selectable at purchase to match connectivity requirements
- 4x hot-swappable redundant DC-DC PSUs ensuring continuous uptime in critical environments
- DC power input for compatibility with data centre and carrier-grade power infrastructure
- Dual Manager Modules for centralised chassis management and redundancy
- Powered by FortiOS — supporting NGFW, IPS, SSL inspection, application control, and advanced threat protection

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Firewall Throughput: 630 Gbps
- Chassis Form Factor: 8U, 6-slot
- Processor Modules: 2x FPM-7630E
- Interface Modules: 2x FIM-79xxE-C (specified at purchase)
- Management Modules: 2x Manager Modules
- Power Supply: 4x hot-swappable redundant DC-DC PSUs
- Power Input: DC (direct current)
- Operating System: FortiOS

FAQs

Q: What is included in the FG-7060E-9-DC bundle?
A: The FG-7060E-9-DC ships as a complete chassis bundle including an 8U 6-slot chassis, 2x FPM-7630E Processor Modules, 2x FIM-79xxE-C Interface Modules (type specified at purchase), 2x Manager Modules, and 4x hot-swappable redundant DC-DC power supply units.

Q: What differentiates the DC variant from other FortiGate 7060E models?
A: The '-DC' designation indicates this chassis uses DC power input rather than AC. This makes it suitable for data centres and carrier environments where DC power distribution is the standard, offering improved efficiency and compatibility with existing DC power infrastructure.

Q: What level of redundancy does the FG-7060E-9-DC provide?
A: The platform features 4x hot-swappable redundant DC-DC power supply units, redundant processor modules, and a modular chassis design — all contributing to high availability operation suitable for mission-critical enterprise and carrier-grade deployments.

Q: Can the interface modules be customised for our network requirements?
A: Yes. The FIM-79xxE-C interface modules are specified at the time of purchase, allowing you to select the appropriate interface type for your connectivity requirements. Contact iptrading.com.au to discuss your specific needs before ordering.

Q: Is the FortiGate 7060E-9-DC suitable for data centre deployments?
A: Absolutely. The 8U chassis form factor, 630 Gbps firewall throughput, DC power input, modular design, and redundant power supplies make this platform purpose-built for large enterprise data centres and service provider environments requiring high-performance, scalable network security.

Q: Can I purchase the FortiGate 7060E-9-DC in Australia from IP Trading?
A: Yes. iptrading.com.au is an Australian B2B IT hardware reseller offering the FG-7060E-9-DC with fast shipping and expert pre-sales and post-sales support across Australia. Contact us for pricing, lead times, and licensing guidance.
