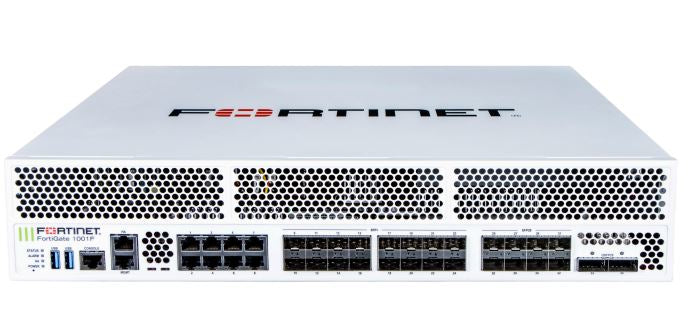

Fortinet FG-1000F | 2U Next-Gen Firewall, 2x 100GE QSFP28, Dual AC PSU

Fortinet FG-1000F | 2U Next-Gen Firewall, 2x 100GE QSFP28, Dual AC PSU

Authorised Fortinet Partner

FG-1000F

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Fortinet FG-1000F FortiGate 1000F is a 2U high-performance next-generation firewall appliance built for enterprise and data centre edge deployments. It combines 2x 100GE QSFP28, 8x 25GE SFP28 and 16x 10GE SFP+ slots with 8x 10GE BASE-T RJ45 ports, and this SKU ships with dual AC power supplies for power redundancy.

Security processing is accelerated by Fortinet SPU NP7 and CP9 hardware, helping the appliance sustain demanding traffic loads. A dedicated 1GE management port and a 2.5GE HA port support out-of-band administration and high-availability pairing.

Features

- SPU NP7 network processor and CP9 content processor acceleration
- Dual AC power supplies for redundancy
- High-speed 100GE, 25GE and 10GE connectivity in a single 2U appliance
- Dedicated management and high-availability ports

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2U rack-mount form factor
- 2 x 100GE QSFP28 slots
- 8 x 25GE SFP28 slots
- 16 x 10GE SFP+ slots
- 8 x 10GE BASE-T RJ45 ports
- 1 x 1GE MGMT port
- 1 x 2.5GE HA port
- SPU NP7 and CP9 hardware acceleration
- Dual AC power supplies

FAQs

Q: What power supply configuration does the FG-1000F include?
A: This SKU ships with dual AC power supplies, providing power redundancy in a 2U chassis.

Q: What network interfaces does the FortiGate 1000F provide?
A: It provides 2x 100GE QSFP28 slots, 8x 25GE SFP28 slots, 16x 10GE SFP+ slots, 8x 10GE BASE-T RJ45 ports, a 1GE management port and a 2.5GE HA port.

Q: Does the FG-1000F include transceivers?
A: The QSFP28, SFP28 and SFP+ slots are supplied empty, so compatible transceivers or DAC cables are purchased separately.

Q: What hardware acceleration does this firewall use?
A: It uses Fortinet SPU NP7 network processors and CP9 content processors to accelerate traffic and security inspection.

Q: Can the FG-1000F be deployed in a high-availability pair?
A: Yes. It includes a dedicated 2.5GE HA port intended for high-availability clustering.

Q: What rack space does the FG-1000F require?
A: It is a 2U rack-mount appliance.
