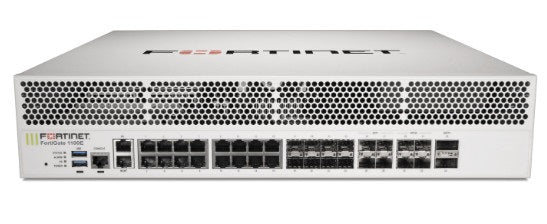

• White Fortinet FortiGate 1100E firewall with perforated front and ports

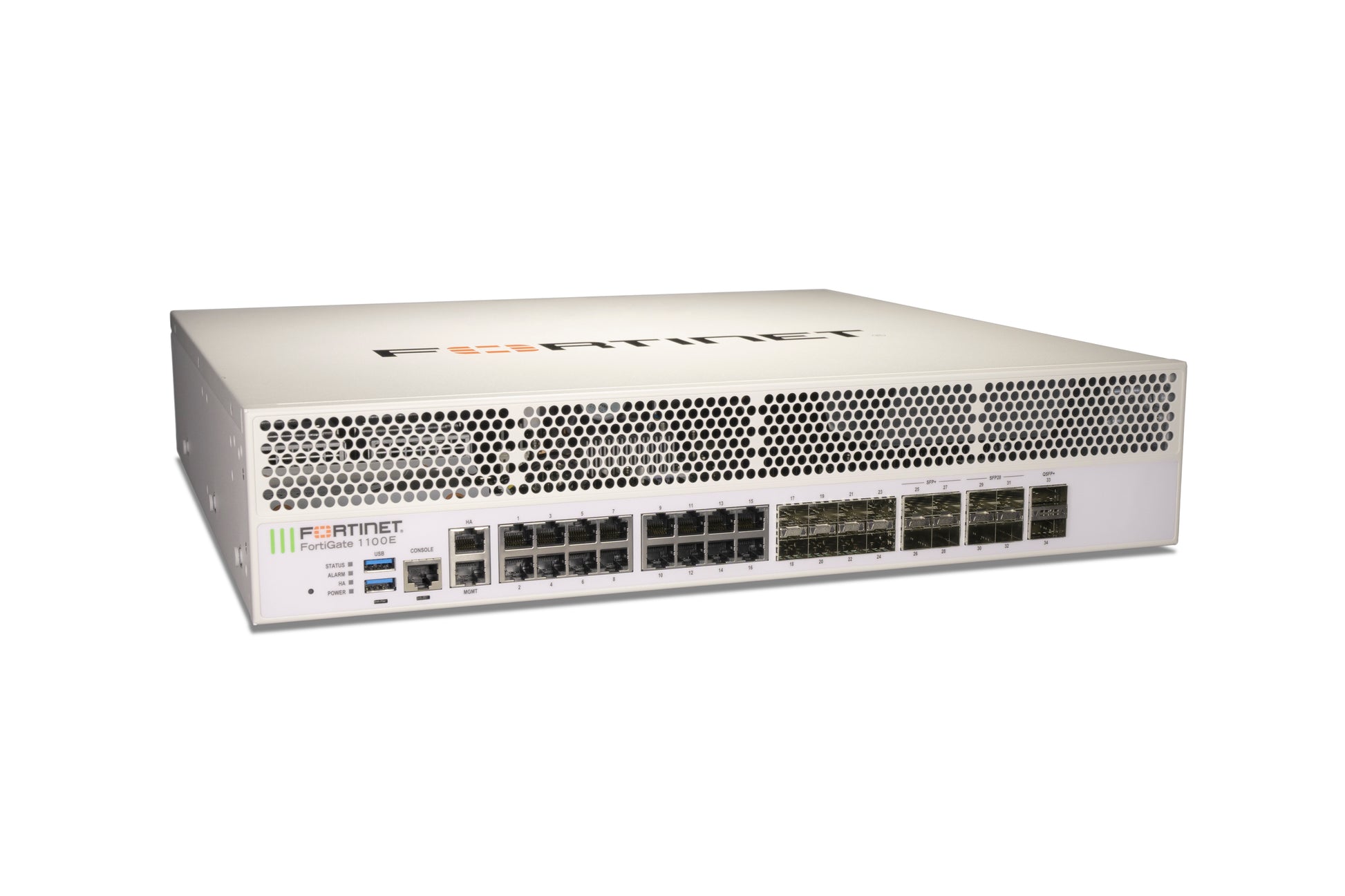

  • White Fortinet FG-1100E FortiGate with perforated front panel and ports

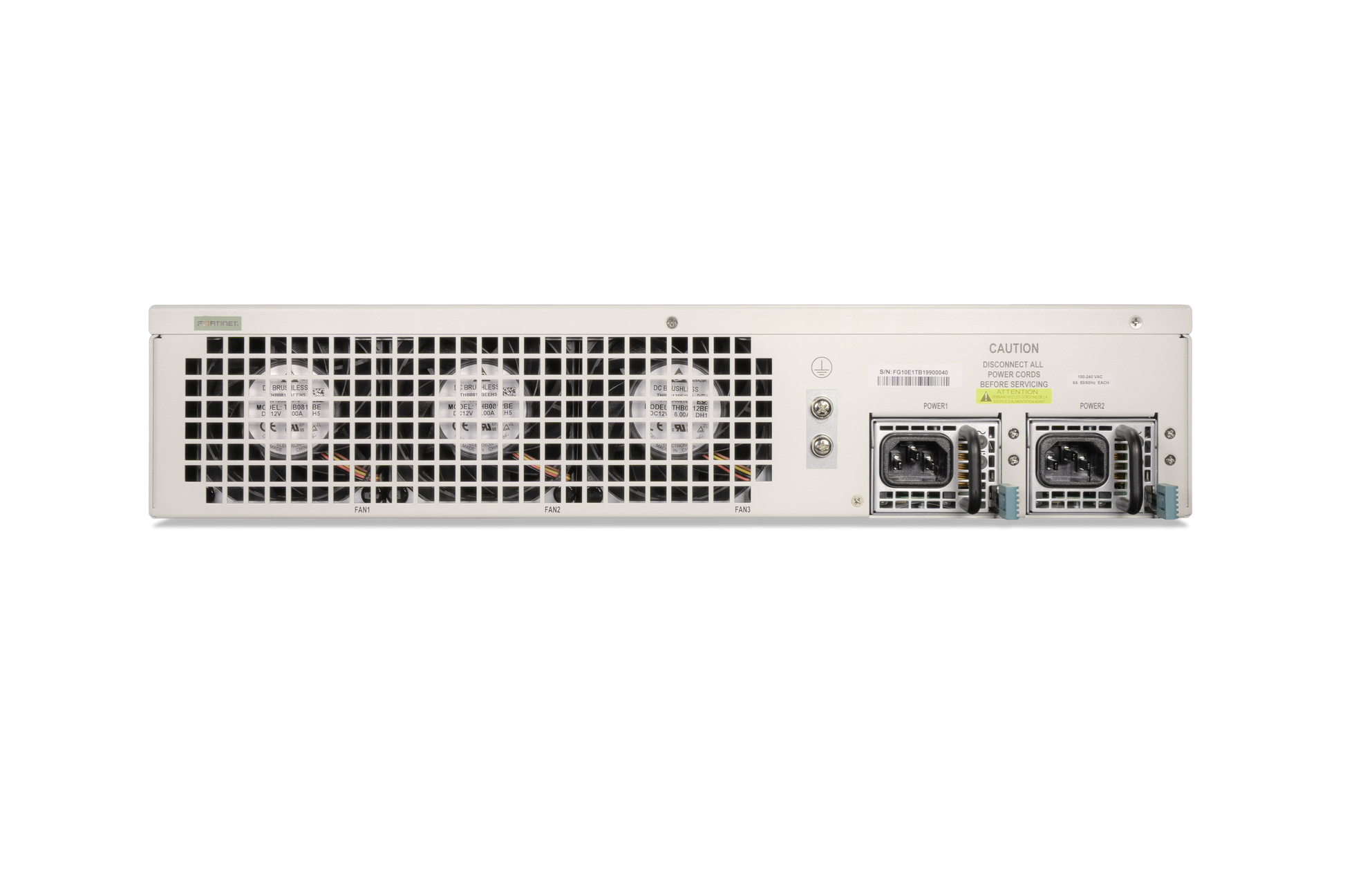

  • Fortinet FG-1100E back panel white metal PSU with 2 black AC ports and vent
1 3

Fortinet

Fortinet FG-1100E | Next-Gen Firewall, 9.8 Gbps NGFW, 2x 40GE, AC, No Storage

Fortinet FG-1100E | Next-Gen Firewall, 9.8 Gbps NGFW, 2x 40GE, AC, No Storage

Authorised Fortinet Partner

FG-1100E

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Fortinet FortiGate 1100E (FG-1100E) is a 2RU next-generation firewall built for large enterprises and service providers. It combines 2x 40GE QSFP+ and 4x 25GE SFP28 interfaces with NP6 and CP9 hardware acceleration, delivering 9.8 Gbps NGFW throughput, 12.5 Gbps IPS throughput and 48 Gbps IPsec VPN throughput. This AC-powered model has no onboard storage, which distinguishes it from the FG-1101E that adds 2x 480GB SSD.

The FG-1100E runs FortiOS and forms part of the Fortinet Security Fabric, with redundant hot-swappable AC power supplies and Active-Active, Active-Passive and clustering high availability. Its mix of 40GE, 25GE, 10GE, GE SFP and GE RJ45 ports suits data centre edge, campus core and high-density perimeter deployments without extra bridging devices.

Features

- NP6 and CP9 SPU hardware acceleration
- 40GE and 25GE interfaces simplify network design without extra bridging devices
- Runs FortiOS and is part of the Fortinet Security Fabric
- ICSA Labs certifications: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6
- High availability: Active-Active, Active-Passive and Clustering
- Supports up to 4,096 FortiAPs (2,048 in tunnel mode) and 20,000 FortiTokens

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
โ€ข Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
โ€ข Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
โ€ข Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the productโ€™s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2x 40GE QSFP+ slots
- 4x 25GE SFP28 / 10GE SFP+ slots
- 4x 10GE SFP+ / GE SFP slots
- 8x GE SFP slots
- 18x GE RJ45 ports in total (16 data ports plus 2 MGMT/HA ports)
- IPS throughput: 12.5 Gbps
- NGFW throughput: 9.8 Gbps
- Threat Protection throughput: 7.11 Gbps
- Application Control throughput (HTTP 64K): 26 Gbps
- IPsec VPN throughput (512 byte): 48 Gbps
- Concurrent sessions (TCP): 8 million
- New sessions per second (TCP): 500,000
- Firewall latency (64 byte UDP): 3 ฮผs
- Firewall throughput: 67.5 Mpps
- Firewall policies: 100,000
- Virtual Domains (default / maximum): 10 / 250
- Onboard storage: none
- Included transceivers: 2x SFP (SX 1GE)
- Redundant hot-swappable AC power supplies, 100-240V AC, 50/60 Hz
- Power consumption (average / maximum): 217 W / 336 W
- Form factor: 2 RU rack mount
- Dimensions: 88.9 x 443 x 447.4 mm
- Weight: 11.3 kg
- Operating temperature: 0-40ยฐC

FAQs

Q: What is the difference between the FG-1100E and the FG-1101E?
A: The FG-1100E has no onboard storage, while the FG-1101E adds 2x 480GB SSD. Both share the same 2RU chassis and interface layout.

Q: What interfaces does the FortiGate FG-1100E provide?
A: It offers 2x 40GE QSFP+, 4x 25GE SFP28 / 10GE SFP+, 4x 10GE SFP+ / GE SFP, 8x GE SFP and 18x GE RJ45 ports, including 2 dedicated MGMT/HA ports.

Q: Does the FG-1100E include transceivers?
A: Yes, it includes 2x SFP (SX 1GE) transceivers. Additional optics for the 40GE, 25GE and 10GE slots are purchased separately.

Q: Does the FG-1100E support high availability?
A: Yes. It supports Active-Active, Active-Passive and clustering high availability, and has redundant hot-swappable AC power supplies.

Q: What throughput can the FG-1100E deliver?
A: It provides 12.5 Gbps IPS, 9.8 Gbps NGFW, 7.11 Gbps Threat Protection and 48 Gbps IPsec VPN throughput, with 8 million concurrent sessions.

Q: What operating system does the FG-1100E run?
A: It runs FortiOS and integrates with the Fortinet Security Fabric, supporting up to 4,096 FortiAPs and 250 virtual domains.
