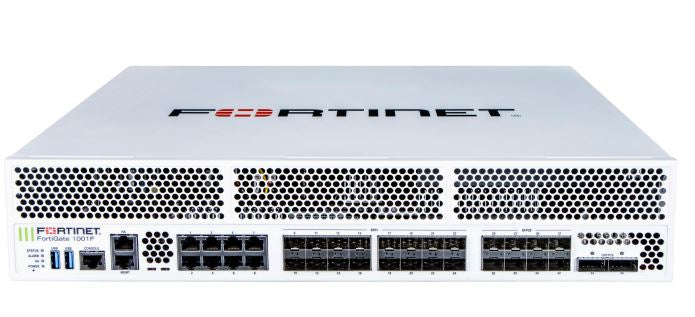

• White Fortinet FG-1001F 2U firewall front with perforated panel and ports
1 1

Fortinet

Fortinet FG-1001F | 2U Next-Gen Firewall, 2x 100GE QSFP28, Dual AC, 960GB SSD

Fortinet FG-1001F | 2U Next-Gen Firewall, 2x 100GE QSFP28, Dual AC, 960GB SSD

Authorised Fortinet Partner

FG-1001F

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Fortinet FortiGate 1001F is a 2U next-generation firewall appliance built for data centre edge and large enterprise network deployments. It combines 2x 100GE QSFP28, 8x 25GE SFP28 and 16x 10GE SFP+ slots with 8x 10GE BASE-T RJ45 ports, and ships with dual AC power supplies and 960GB of onboard SSD storage.

Hardware acceleration from the NP7 network processor and CP9 content processor helps maintain performance as traffic and security inspection demands grow. A dedicated 1GE management port and a 2.5GE HA port support out-of-band administration and high-availability clustering.

Features

- NP7 network processor and CP9 content processor hardware acceleration
- High-density 100GE, 25GE and 10GE interfaces for data centre and enterprise edge
- Dual AC power supplies for power redundancy
- Dedicated 2.5GE HA port for high-availability pairing
- 960GB onboard SSD storage

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2U rack-mount form factor
- 2x 100GE QSFP28 slots
- 8x 25GE SFP28 slots
- 16x 10GE SFP+ slots
- 8x 10GE BASE-T RJ45 ports
- 1x 1GE MGMT port
- 1x 2.5GE HA port
- SPU NP7 and CP9 hardware accelerated
- 960GB SSD onboard storage
- Dual AC power supplies

FAQs

Q: What interfaces does the FortiGate 1001F provide?
A: It provides 2x 100GE QSFP28 slots, 8x 25GE SFP28 slots, 16x 10GE SFP+ slots and 8x 10GE BASE-T RJ45 ports, plus a 1GE management port and a 2.5GE HA port.

Q: Does the FG-1001F include redundant power?
A: Yes. It ships with dual AC power supplies.

Q: Does it include onboard storage?
A: Yes. It includes 960GB of onboard SSD storage.

Q: What hardware acceleration does this firewall use?
A: It uses the Fortinet SPU architecture with an NP7 network processor and a CP9 content processor.

Q: Can the FG-1001F be deployed in a high-availability pair?
A: Yes. It has a dedicated 2.5GE HA port for connecting units in a high-availability configuration.

Q: Do I need to buy optics separately?
A: The 100GE QSFP28, 25GE SFP28 and 10GE SFP+ slots require compatible transceivers, which are purchased separately.
