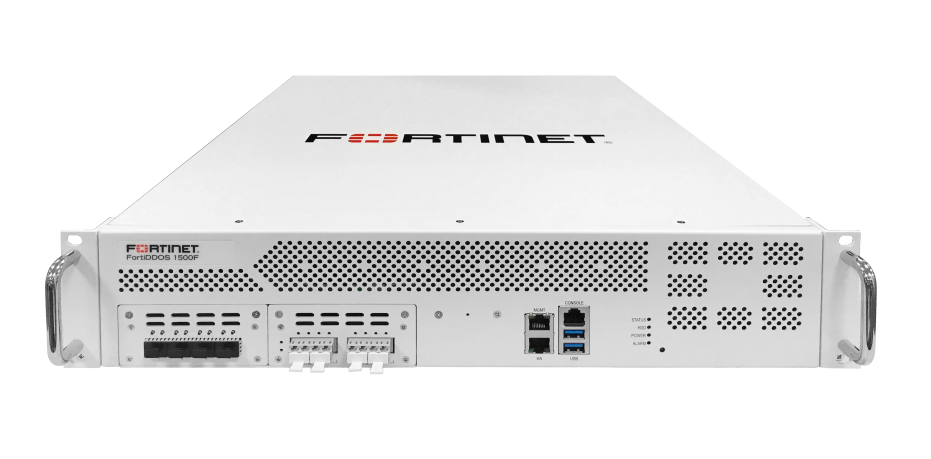

• Fortinet FDN50C8 1960F security appliance with ports, FDD-1500F-LR model
1 1

Fortinet

Fortinet FDD-1500F-LR | DDoS Protection Appliance, 4 Port-Pairs, 10GE LR SM Bypass

Fortinet FDD-1500F-LR | DDoS Protection Appliance, 4 Port-Pairs, 10GE LR SM Bypass

Authorised Fortinet Partner

FDD-1500F-LR

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiDDoS-1500F-LR is a DDoS protection appliance that delivers four port-pairs of DDoS defence for enterprise, data centre and service provider networks. This variant combines 2 port-pairs of 10GE SFP+ (or GE SFP) without bypass protection and 2 port-pairs of 10GE LC LR single-mode (1310nm) ports with integral optical bypass, so protected links stay up if the appliance loses power.

Two GE RJ45 management ports provide out-of-band administration. The long-reach single-mode interfaces suit inline deployments where the protected links run over fibre, while the SFP+ port-pairs accept your choice of 10GE or GE optics.

Features

- DDoS protection appliance for inline deployment
- Integral optical bypass on the 10GE LC LR single-mode port-pairs
- Flexible 10GE SFP+ or GE SFP port-pairs
- Dedicated GE RJ45 management ports for out-of-band administration

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 4 port-pairs of DDoS defence ports
- 2 port-pairs 10GE SFP+ (or GE SFP), no bypass protection
- 2 port-pairs 10GE LC LR single-mode (1310nm) with integral optical bypass
- 2x GE RJ45 management ports

FAQs

Q: Which ports have bypass protection on the FDD-1500F-LR?
A: The 2 port-pairs of 10GE LC LR single-mode (1310nm) ports have integral optical bypass. The 2 port-pairs of 10GE SFP+ (or GE SFP) do not have bypass protection.

Q: Can the SFP+ port-pairs run at 1GE?
A: Yes. The SFP+ port-pairs support 10GE SFP+ or GE SFP optics, depending on the transceivers you install.

Q: What type of fibre do the LR ports use?
A: The LR ports use LC connectors over single-mode fibre at 1310nm.

Q: How is the appliance managed?
A: It has 2x GE RJ45 management ports for out-of-band administration.

Q: How many links can it protect inline?
A: It provides 4 port-pairs of DDoS defence ports, so it can protect up to four inline links.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
