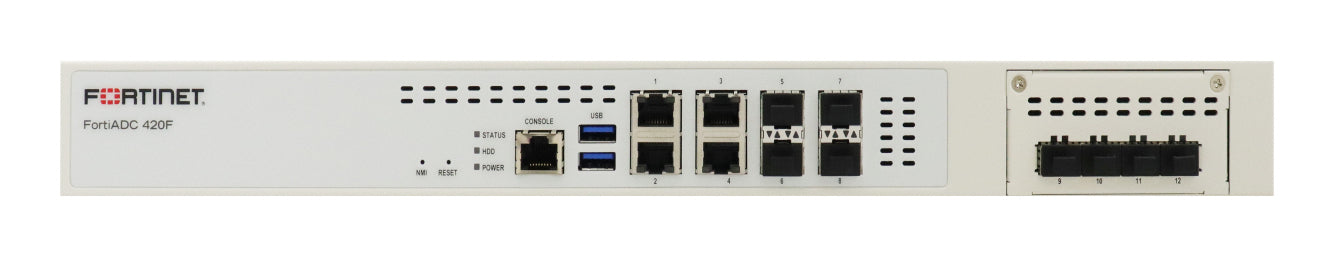

Fortinet FAD-420F | Application Delivery Controller, 15 Gbps, 4x SFP+ 10GbE

Authorised Fortinet Partner

SKU:FAD-420F

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The FortiADC 420F is a purpose-built application delivery controller (ADC) designed for enterprise and data centre environments requiring high-throughput load balancing, SSL offloading, and application acceleration. Delivering up to 15 Gbps of throughput with a dedicated hardware SSL accelerator, the FAD-420F ensures fast, secure delivery of web applications and services without taxing backend servers. Flexible connectivity across 4x GE RJ45, 4x GE SFP, and 4x SFP+ 10GbE ports makes it well-suited for both access and core network tiers.

Built on Fortinet's FortiADC platform, this appliance integrates Layer 4–7 load balancing, global server load balancing (GSLB), Web Application Firewall (WAF), and DDoS protection into a single rack-unit form factor. Onboard 120 GB SSD storage supports local logging and analytics, while an optional redundant PSU provides the resilience demanded by production environments.

Features

- Layer 4–7 server load balancing with advanced health monitoring and session persistence
- Hardware SSL/TLS offloading accelerates HTTPS application delivery and reduces backend server load
- Integrated Web Application Firewall (WAF) protects against OWASP Top 10 threats and DDoS attacks
- Global Server Load Balancing (GSLB) for multi-site traffic distribution and disaster recovery
- 4x 10GbE SFP+ uplinks provide high-bandwidth connectivity for data centre and core network integration
- Onboard 120 GB SSD for local logging, reporting, and forensic data retention
- Optional redundant PSU supports N+1 power resilience for mission-critical deployments
- Fortinet Security Fabric integration enables unified management with FortiManager and FortiAnalyzer
- IPv4 and IPv6 dual-stack support for modern hybrid network environments
- Compact 1U rack-mount design suitable for space-constrained data centre deployments

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Throughput: 15,000 Mbps (15 Gbps)
- WAN/LAN Ports: 4x GE RJ45
- SFP Ports: 4x GE SFP
- SFP+ Ports: 4x 10GbE SFP+
- Storage: 1x 120 GB SSD (onboard)
- SSL Acceleration: Dedicated hardware SSL accelerator
- Power Supply: Single PSU standard; optional redundant PSU
- Form Factor: 1U rack-mount appliance

FAQs

Q: What is the FortiADC 420F used for?
A: The FortiADC 420F is an application delivery controller used for server load balancing, SSL offloading, application acceleration, and web application firewall (WAF) functionality. It is suited for enterprise data centres and cloud-edge deployments requiring high availability and secure application delivery.

Q: How many ports does the FAD-420F have?
A: The FAD-420F includes 4x GE RJ45 copper ports, 4x GE SFP fibre/optical ports, and 4x SFP+ 10GbE ports, giving you flexible connectivity for both 1G and 10G network environments.

Q: Does the FortiADC 420F include a hardware SSL accelerator?
A: Yes. The FAD-420F features a dedicated hardware SSL accelerator, enabling high-performance SSL/TLS offloading without impacting CPU resources or application throughput.

Q: Can the FortiADC 420F be deployed with a redundant power supply?
A: The base unit ships with a single PSU, but an optional redundant power supply is available, making it suitable for high-availability production environments where power redundancy is required.

Q: Is the FortiADC 420F compatible with Fortinet's Security Fabric?
A: Yes. FortiADC appliances integrate with Fortinet's Security Fabric, allowing centralised management, threat intelligence sharing, and visibility alongside FortiGate firewalls, FortiAnalyzer, and FortiManager.
